WOOD DRIVEWAY GATES #29

This Driveway Gate Style is Base Price + 19%
> Go to Base Price Table

CUSTOM WOOD DRIVEWAY GATE #29

The Arts & Crafts Driveway Gate #29

Arts and Crafts Wood driveway Gates #29

CUSTOM WOOD DRIVEWAY GATES #29

Claremont, CA (Near Pasadena)

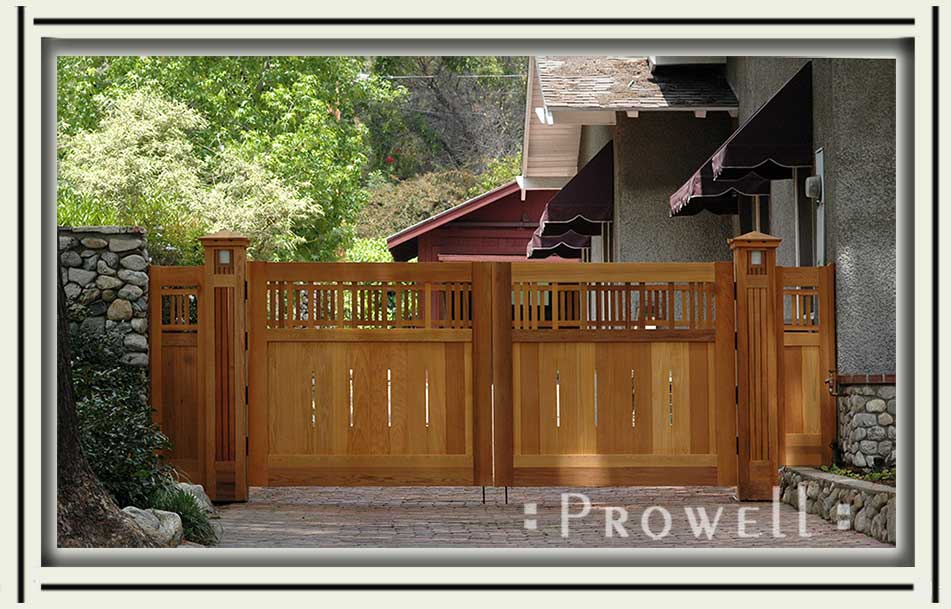

Prowell’s Lighted Gate Columns mounted over 6″ steel posts. We show a minimal lighted area in this application. Local codes prevented the columns rising any higher than 78″, with the gate height itself at 72″. Because the gate must utilize the steel post within the column for it’s structural hinging, and the steel posts extend only to the lighted area, we are restricted to some extent on lowering the column height to match the driveway gate. A little confusing, and why every driveway gate with adjoining gate Columns is adapted to the specific application, with dimensioned drawings as a last line of defense.

The matching flanking panels are often employed to fill out a Driveway Gate rough opening.

Featured in LANDSCAPE NETWORK ONLINE

Column Style #2

Photos Courtesy of Alice Patterson Photography
custom wood driveway gates #29 in Pasadena, CA

CUSTOM WOOD DRIVEWAY GATES #29

Claremont, CA (Near Pasadena)

arts and crafts driveway gates in Pasadena. prowell

CUSTOM WOOD DRIVEWAY GATES #29

Claremont, CA (Near Pasadena)

In the neighborhood ten years after installation, Charles took the below photograph, as well as several more, which can be seen on Fence Style #24 The original owners had long since moved away.

Below, for those who are interested, is a list of links to where the various other products on this site can be seen–some featured in the Driveway gate gallery and some in the Landscape Lighting gallery, and on and on.
Fence Panels #24
Pony Panels #2
Garden Gate #10
Prowell Lighted Columns #2
Bench #2
Porch Swing #4

custom wood driveway gates in Los Angeles, CA

CUSTOM WOOD DRIVEWAY GATES #29

Claremont, CA (Near Pasadena)

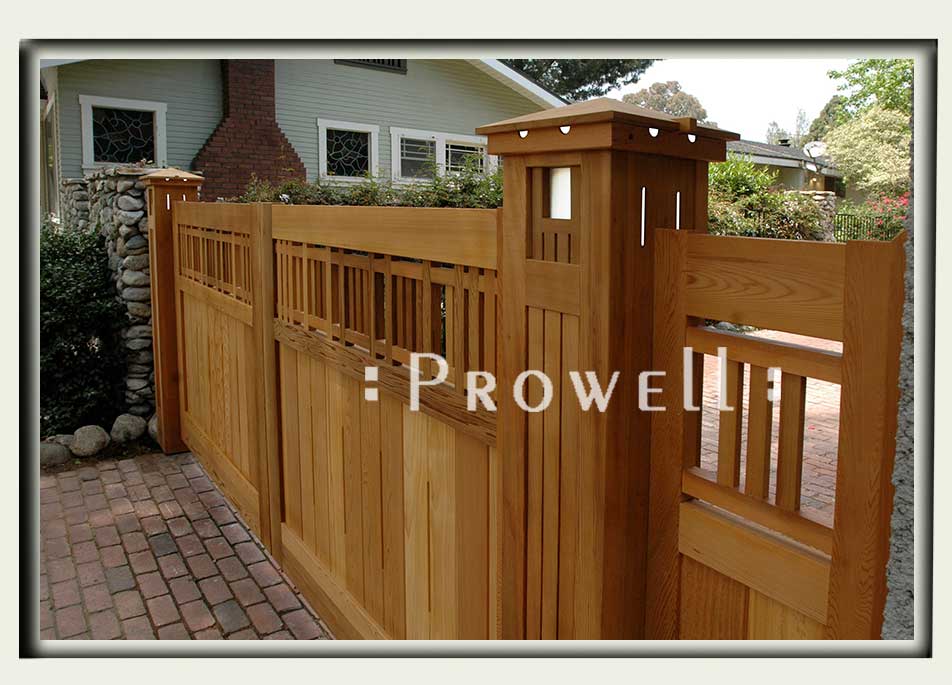

The flanking fence panel on the left, and the Column Style #2 on the right.

Flanking Panels: Fence Style #29
Column Style #2: Click here

wood fence panels

CUSTOM WOOD DRIVEWAY GATES #29

Claremont, CA (Near Pasadena)

Garden Fence Style #29 was later developed as an accompaniment to Driveway Gate #29.
To Garden Fence #29

custom Wood Fence panels #29

CUSTOM WOOD DRIVEWAY GATE #29-1

South Pasadena, CA

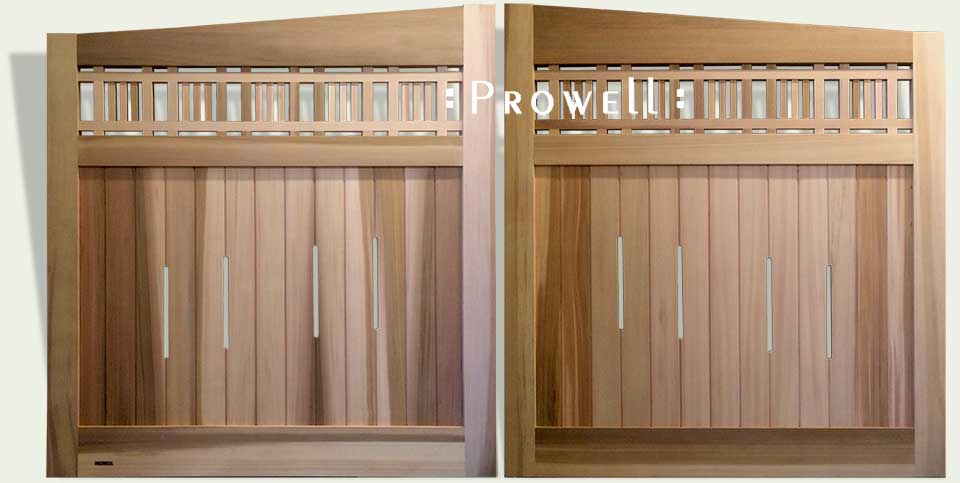

Wood Driveway Gate #19-1 features a gabled top rail.

custom wood driveway gates in Pasadena from Prowell

CUSTOM WOOD DRIVEWAY GATES #29-1

South Pasadena, CA

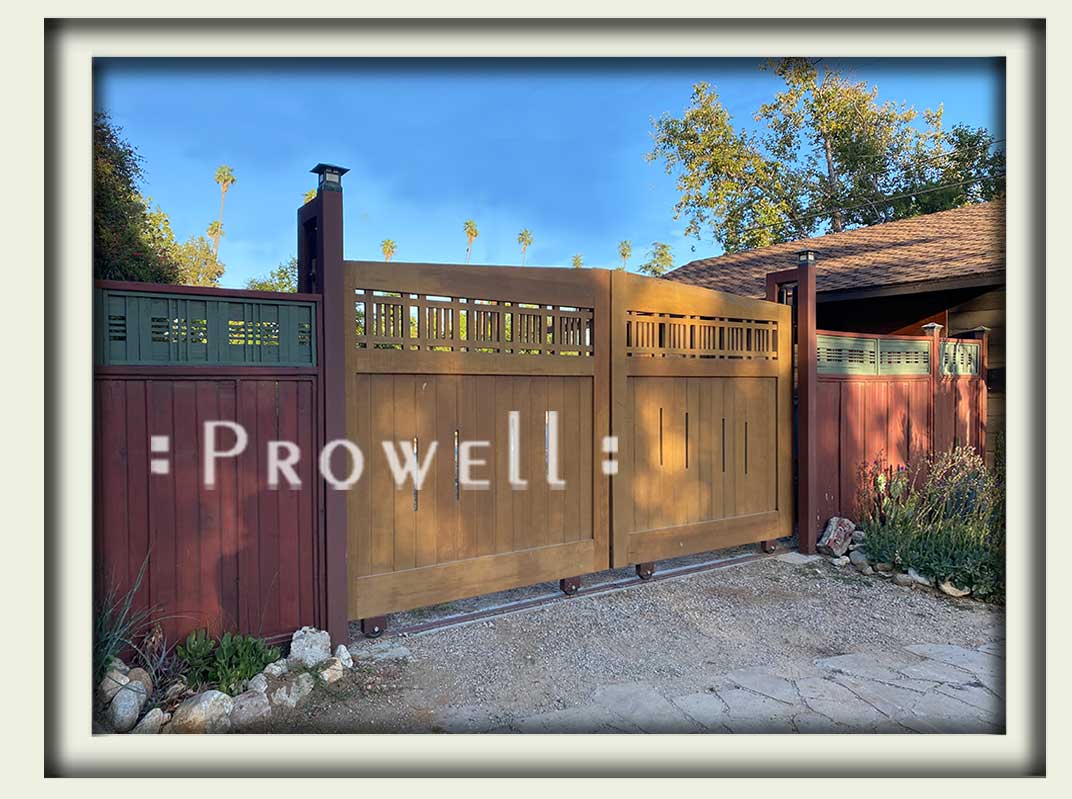

Wood Driveway Gate #19-1 as a Bi-Parting Sliding function. Each gate sliding away from the center. Shown with a 3rd-party fence.

custom wood skliding driveway gate in Pasadena, CA. Prowell woodworks

CUSTOM WOOD DRIVEWAY GATES #29-1

South Pasadena, CA

Photographed 6 nyears after installation.

custom wood sliding drive gates @29-1b in pasadena, ca. Prowell woodworks

CUSTOM WOOD DRIVEWAY GATES #29-1

South Pasadena, CA

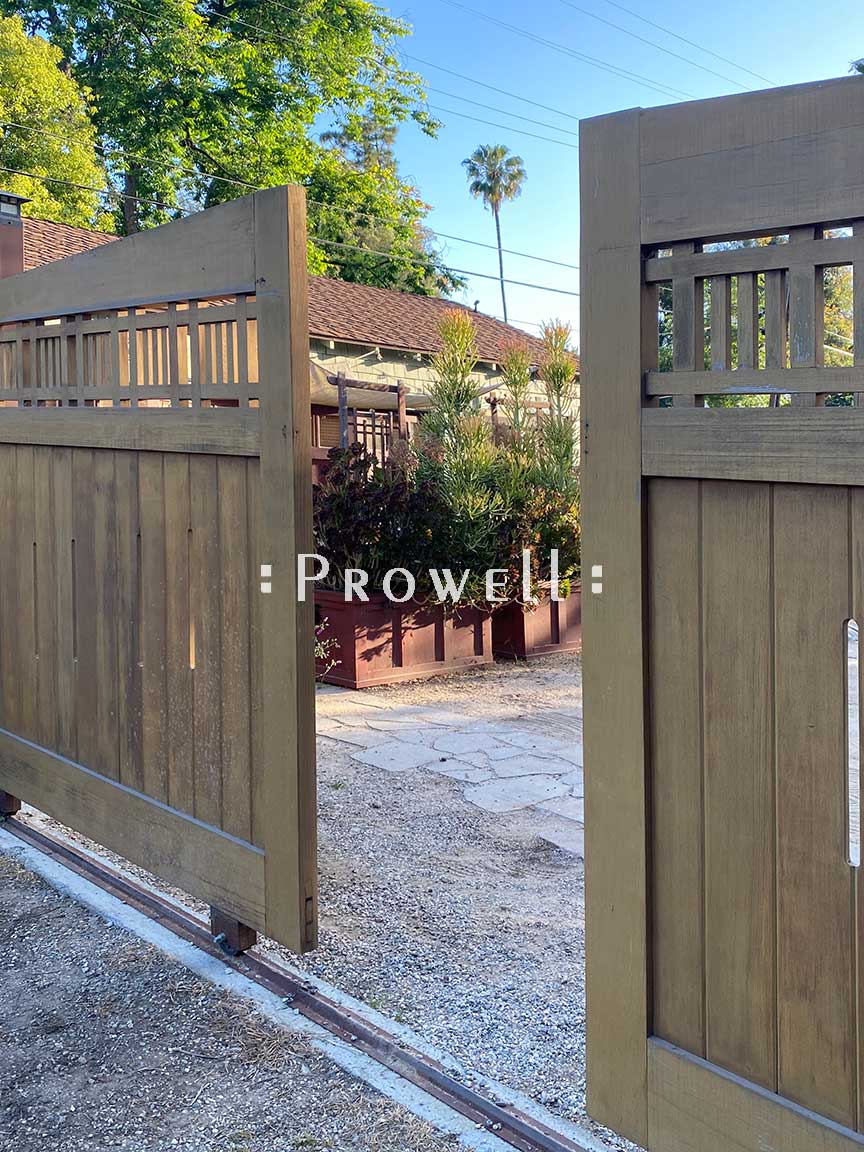

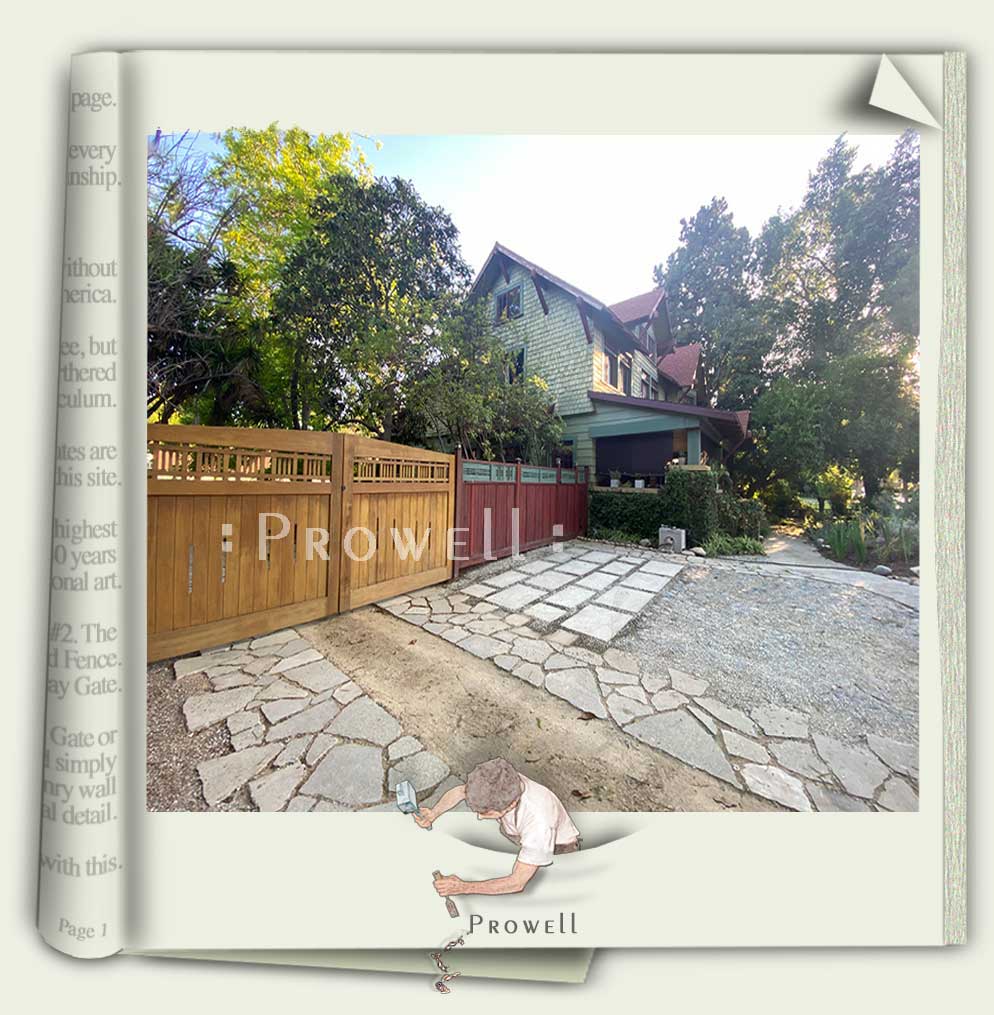

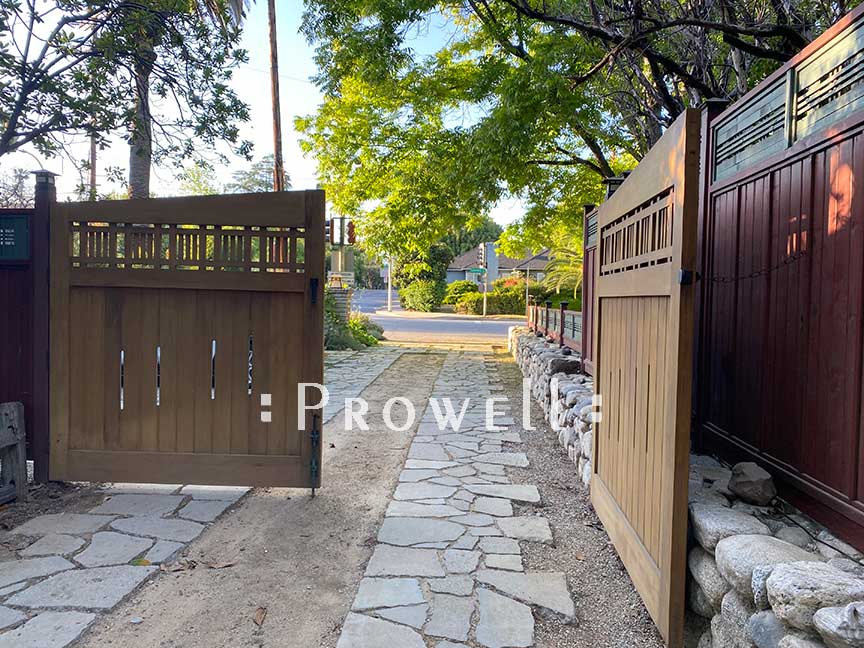

The front entry swing gates.

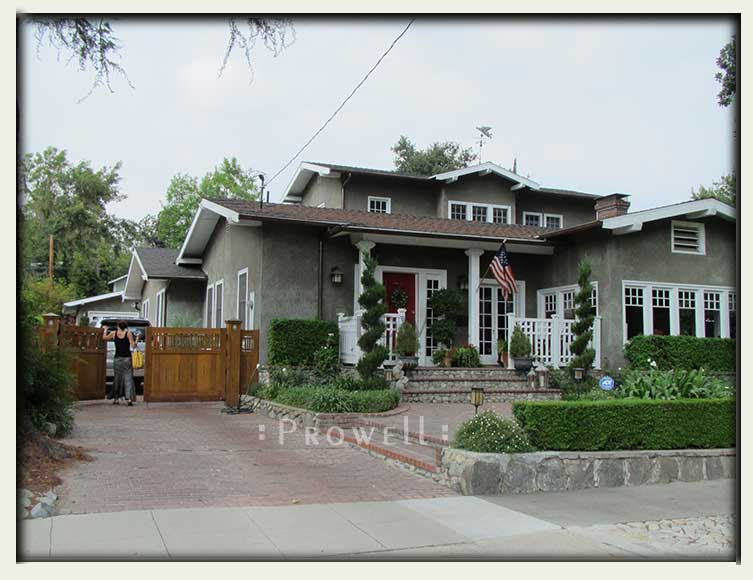

A glimpse of the house, which had been empty for some time before our patrons took on the challenge of bringing it back to life.

custom wood driveway gate #29-1c in Pasadena, CA prowell

CUSTOM WOOD DRIVEWAY GATES #29-1

South Pasadena, CA

Wood Driveway Gates #29-1d in Pasadena, CA prowell

CUSTOM WOOD DRIVEWAY GATE #29-2

Palo Alto, CA

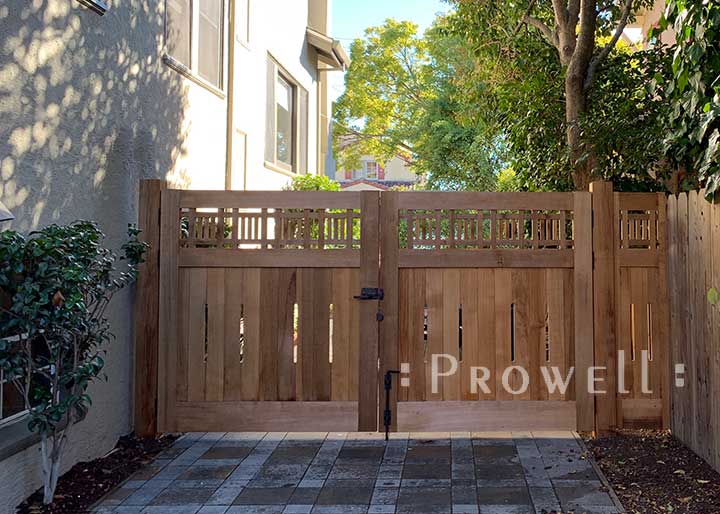

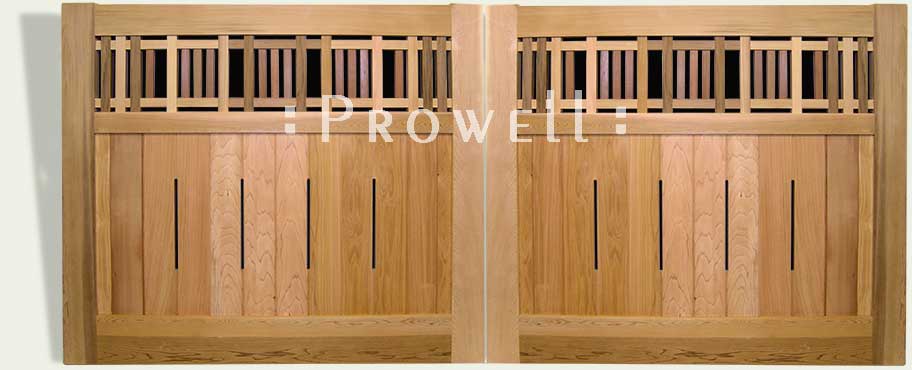

Wood Driveway Gate #19-2. Bi-parting. Non-automated.

double wood driveway gate in Oakland. prowell

CUSTOM WOOD DRIVEWAY GATES #29-2

Palo Alto, CA

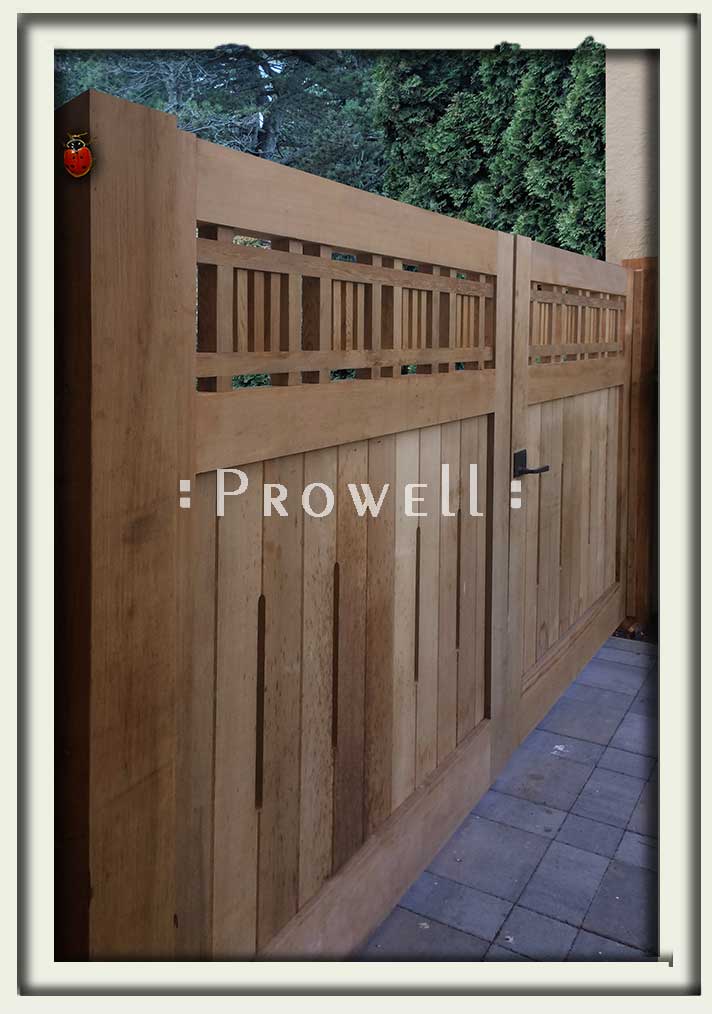

Left to weather, the cedar will age to a silvery gray.

PROGRESS

WOOD DRIVEWAY GATES #29-2–PROGRESS

Ben Prowell gluing up the first stage of the upper patterns.

building a custom wood driveway gate with ben prowell

WOOD DRIVEWAY GATES #29-1–PROGRESS

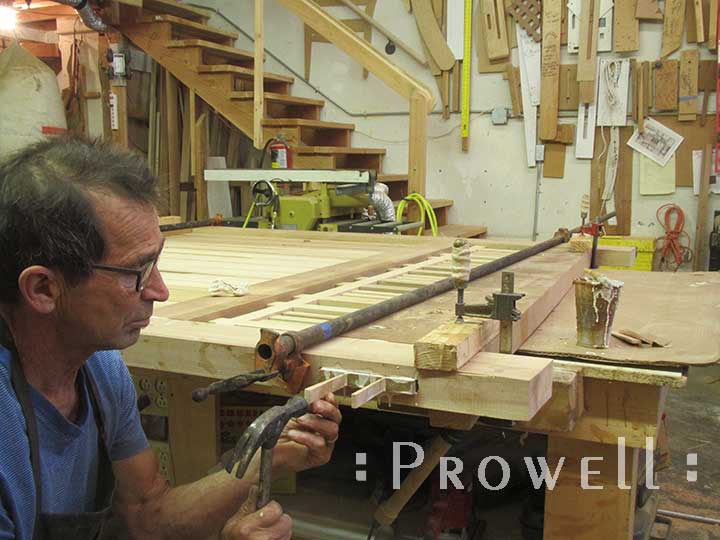

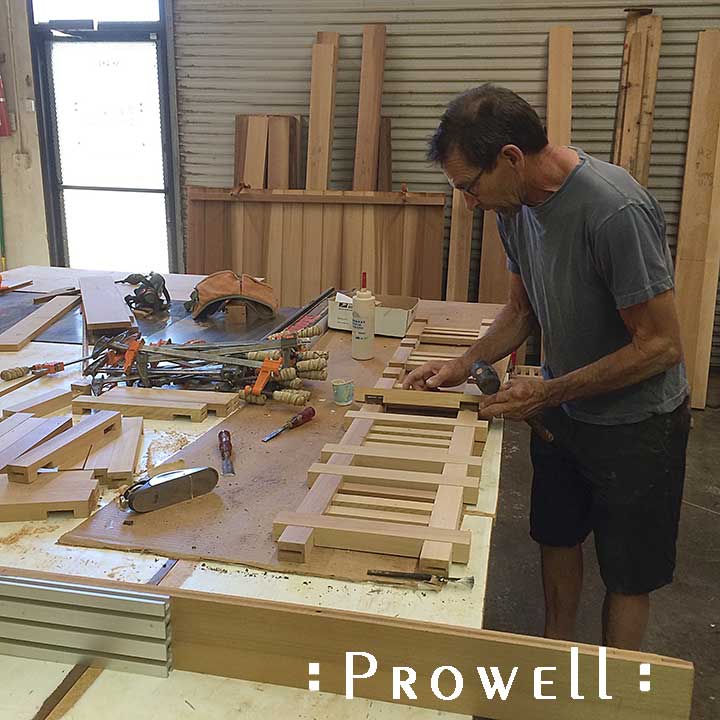

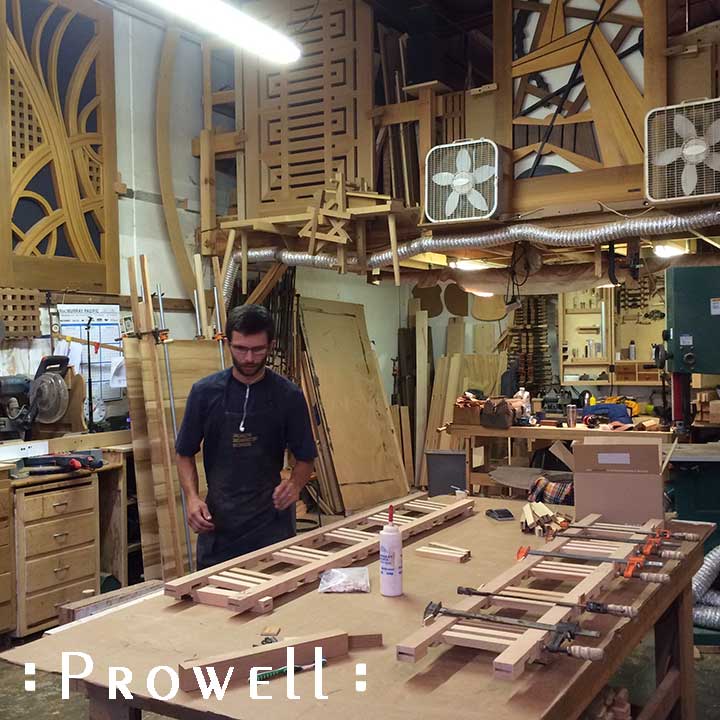

Charles gluing up the second stage of the upper patterns.

how to create the joinery for a Prowell Driveway Gate

WOOD DRIVEWAY GATES #29-1–PROGRESS

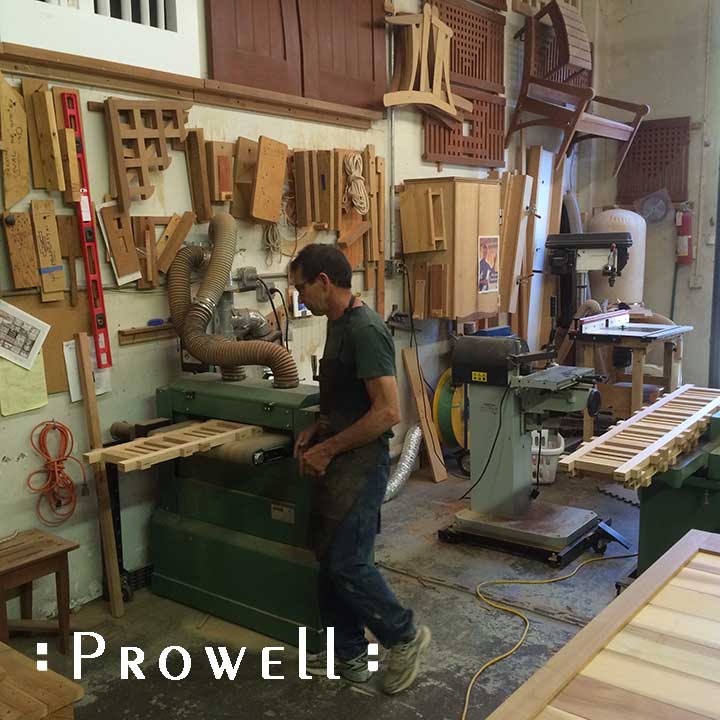

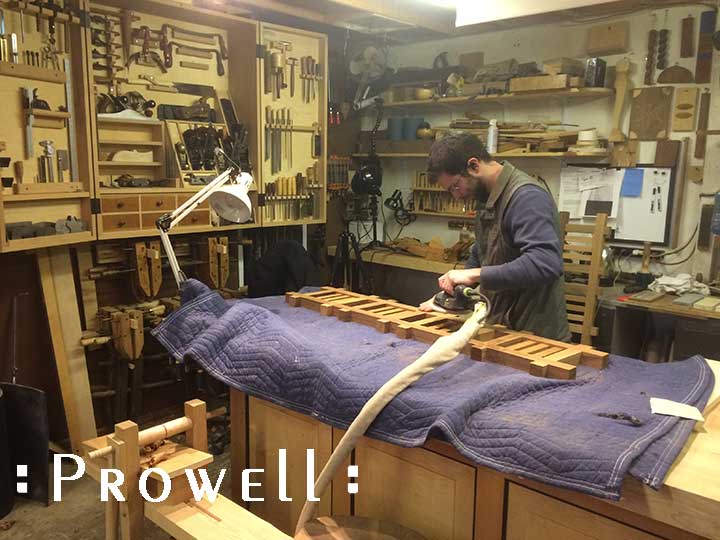

Charles running the pattern assemblies through the drum sander. The final sanding is with an Random Orbital hand-held sander at 120-grit.

Building a custom wood driveway gate #29

WOOD DRIVEWAY GATES #29-1–PROGRESS

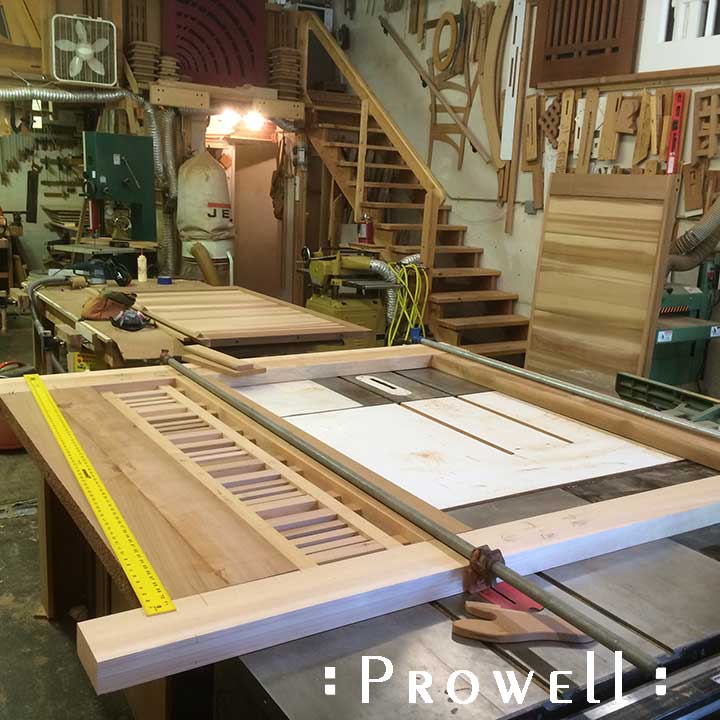

A dry fit, with the yellow rule illustrating the eventual gable layout.

Building wood driveway gates #29

WOOD DRIVEWAY GATES #29-1–PROGRESS

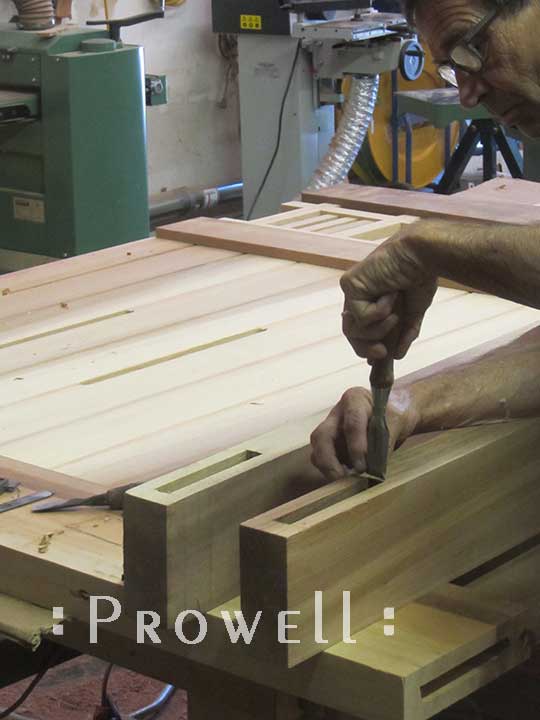

For Driveway Gates without steel frames–at 12′ or less overall rough opening–we use our Joint #9, slightly modified with square shoulders.

driveway gate joinery

WOOD DRIVEWAY GATES #29-1–PROGRESS

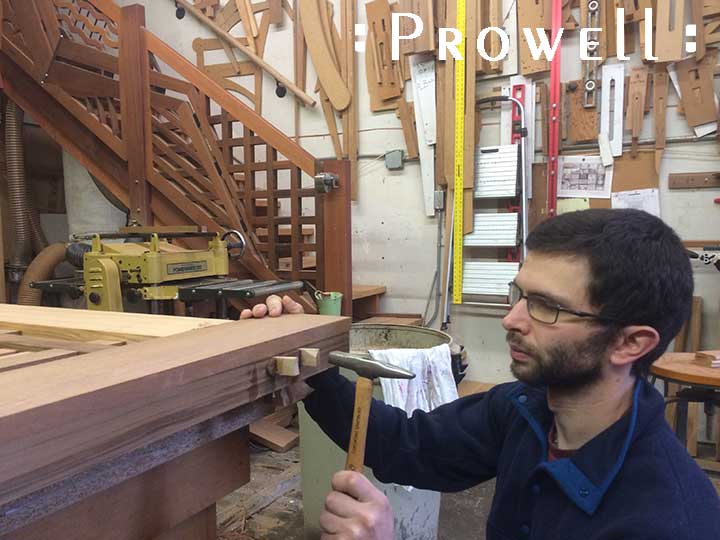

The tenon itself buried 3-1/2″ into the horizontal rail, and carries through the vertical stile, where it accepts two quarter-sawn oak wedges, drive in to expand the tenon tightly against the squares shoulders of the mortise. This effectively locks the joint forever, regardless of the local humidity or temperature changes. A somewhat complicated procedure providing the results of an assembly that will never sag.

mortise and tenon joinery for wood driveway gates #29

WOOD DRIVEWAY GATES #29-1–PROGRESS

joinery for driveway gates by prowell

WOOD DRIVEWAY GATES #29-1–PROGRESS

ben prowell building driveway gate #29-2

wood fence
The Designs of Prowell Woodworks are protected by Patents and Patents Pending.
