WOOD DRIVEWAY GATES #31

This Driveway Gate Style is Base Price + 24%
> Go to Base Price Table

CUSTOM WOOD DRIVEWAY GATE #31

Mill Valley, CA

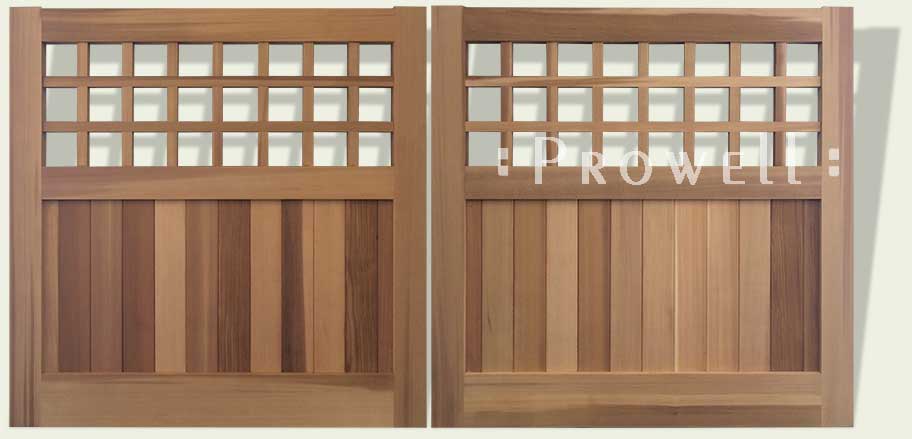

Driveway gate style #31-2 features only 3 rows of upper grids. Equally spread across the width and height of the grid pattern. Grid sizes at 5.48″ each.

CUSTOM WOOD DRIVEWAY GATES #31-2

Mill Valley, CA

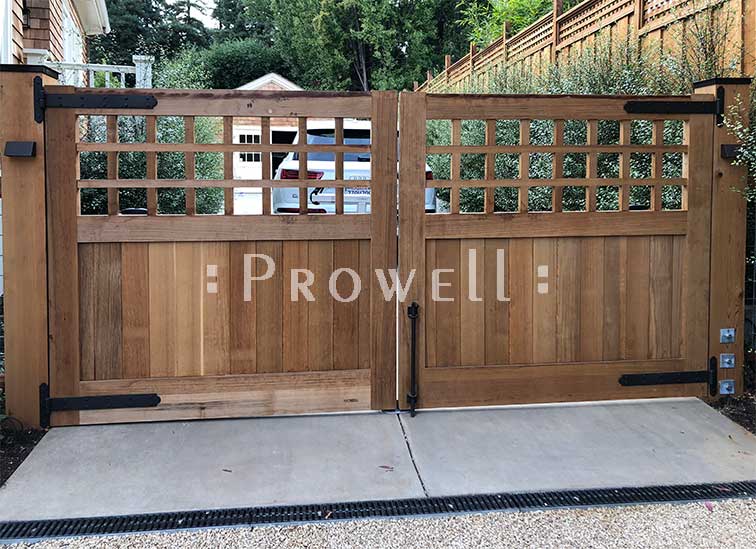

Wood Driveway Gates that swing out toward the street are required by most codes to have a 12′ set-back from the sidewalk.
Here we see heavy-duty strap hinges, provided by the site.
Also the cane bolt, exposed to the street view.
The bottom clearance is less than optimal and would be best at 2″ between the gate and the grade.

custom wood driveway gates #31-2 in Marin County. prowell

CUSTOM WOOD DRIVEWAY GATES #31-2

Mill Valley, CA

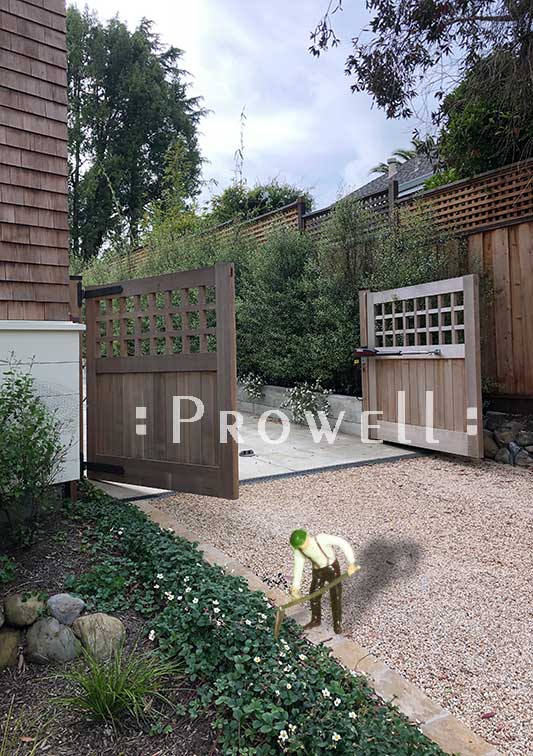

One year later, gradually weathering to a silvery gray. The armature automation motors in this example have been mounted on the property side and to the middle rail. As drive gates that swing out toward the street, the advantage is not having the motors visible from the street. The disadvantage is when mounting motors on the inside for out-swing gates, you lose approximately 4″-6″ clearance per motor armature.

For more on Driveway Gate automation and the various options, see Product Specifications.

Wood Driveway Gate #31-2b in Mill Valley, CA. Prowell

CUSTOM WOOD DRIVEWAY GATE #31-1

Red Bank, New Jersey

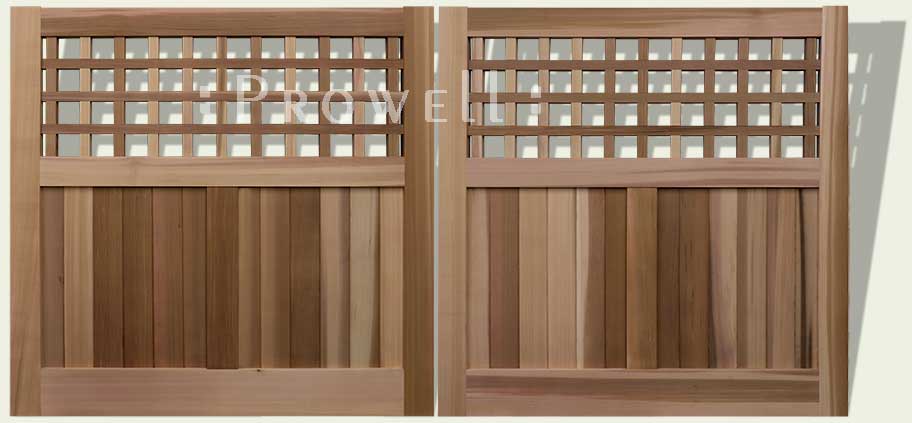

Wood Driveway Gate style #31-1 was part of an extensive fence-line in New jersey. Because the gates and fence panels all share the same grid sizes, but different net widths, the grid pattern on the driveway gate shows the remainders on the right and left aside of each gate. Grid sizes 4.02″ each.

custom wood driveway gates with grids in New Jersey

CUSTOM WOOD DRIVEWAY GATES #31-1

Red Bank, New Jersey

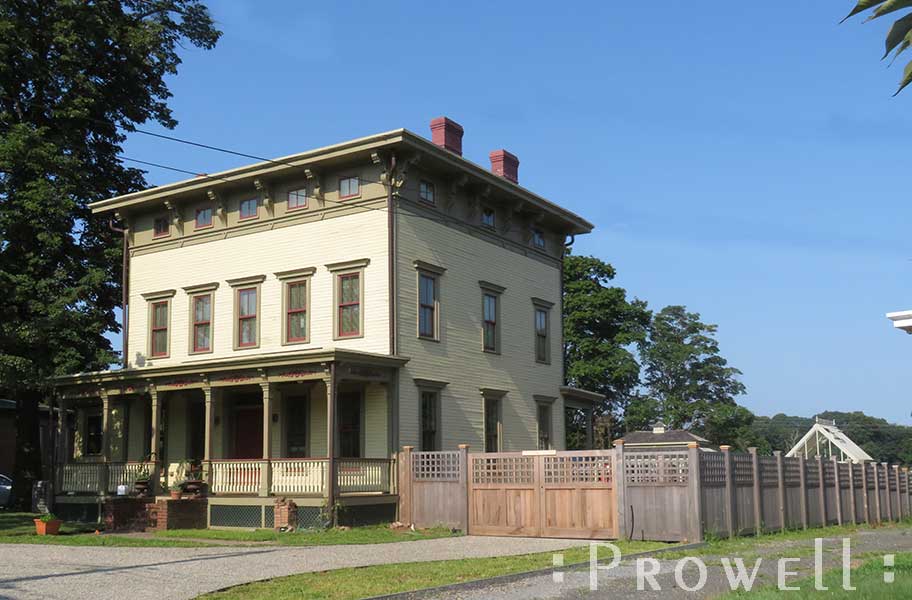

Our first thought: Vintage pillbox architecture, opting for the Fence Style #25 and Drive Gates Style #31, with their upper square grids mimicking both the Box floor plan and the prominence of the top bank of windows.

The back yard fronting the Navesink River.

CUSTOM WOOD DRIVEWAY GATES #31-1

Red Bank, New Jersey

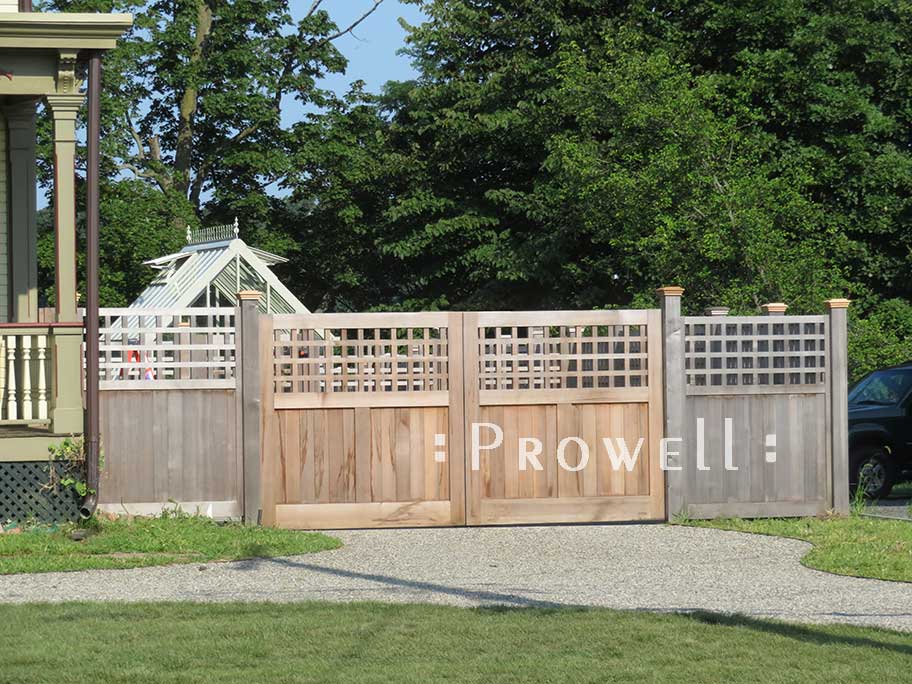

Showing the flanking side Panels Style #25 that were installed the previous spring already weathered to a silvery gray. The Driveway Gates, recently installed, will age to the same patina.

custom wood driveway gates #31-1 in new jersey. Prowell

IN-PROGRESS

WOOD DRIVEWAY GATES #31–PROGRESS

Shop Views–2017

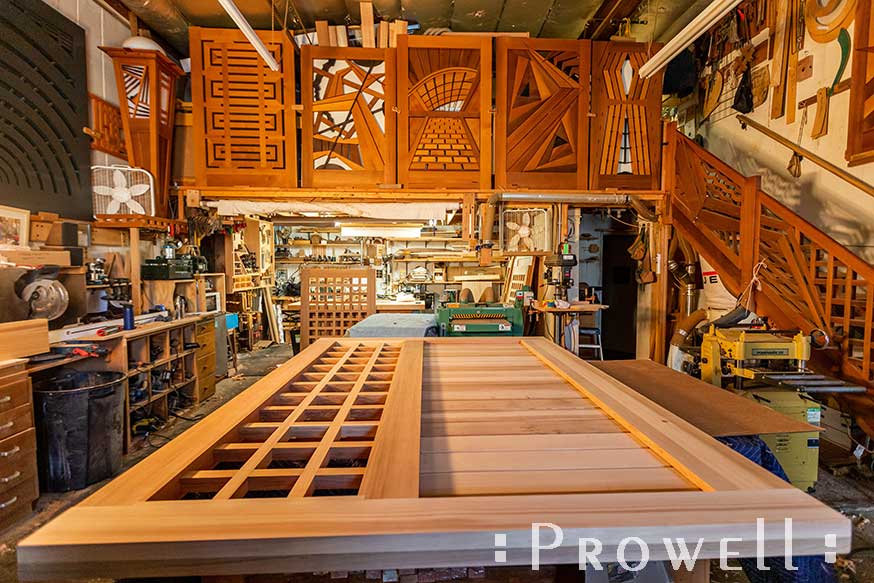

Although the joinery varies widely, we’ve opted for this 12′ overall opening without steel what might be called a ‘Through floating mortise and tenon with expanding oak wedges in both the exposed hinge stile, as shown below, as well as blind wedges within the tenon-to-rail mortise’. A mouthful.

wood gate joinery

WOOD DRIVEWAY GATES #31–PROGRESS

Shop Views-2018

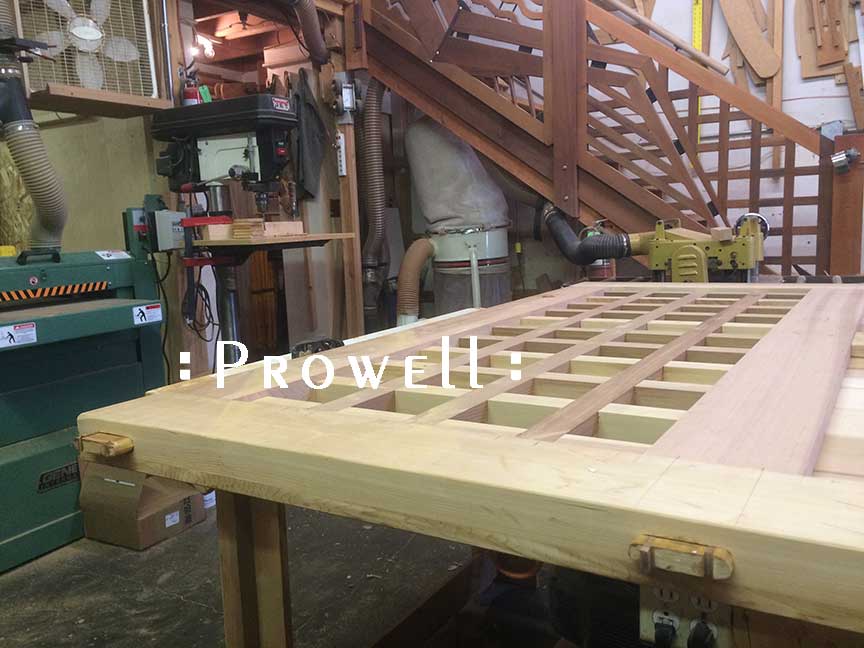

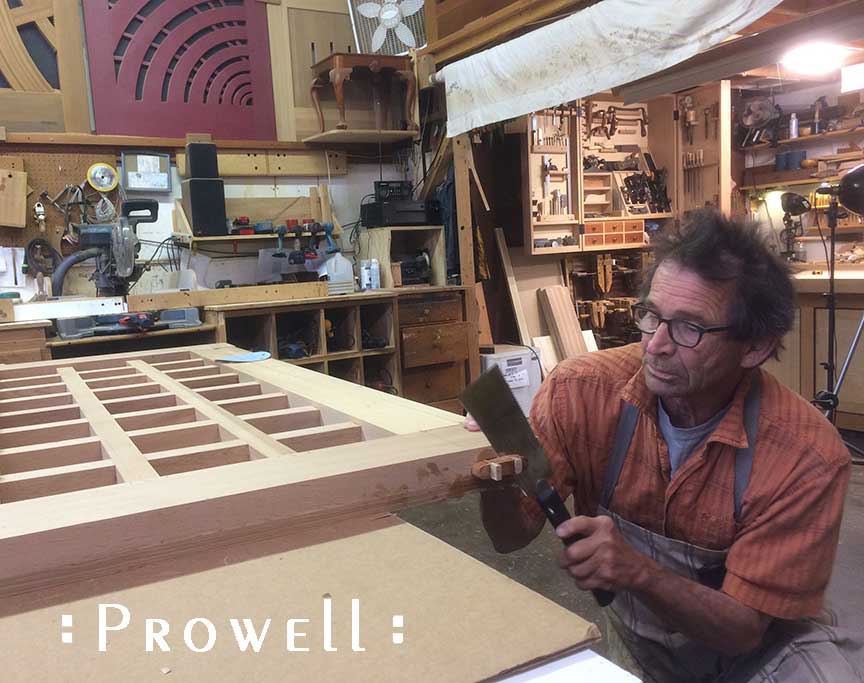

Charles cutting the top tenon flush.

joinery for wood gates by prowell

WOOD DRIVEWAY GATES #31–PROGRESS

WOOD DRIVEWAY GATES #31–PROGRESS

Shop Views-2017

Let’s go ahead with a few explanatory images that will at once be of interest to you, our potential patron, while also spoon-feeding the legions of aspiring competitors toward the secret sauce that, in part, accounts for why this gate will be around 50 or years, or until some unlikely event like a wayward comet makes its landfall at the foot of your property. And it should be noted, here and now, that we charge for rebuilding any and all gates obliterated by, well . . . by wayward comets.

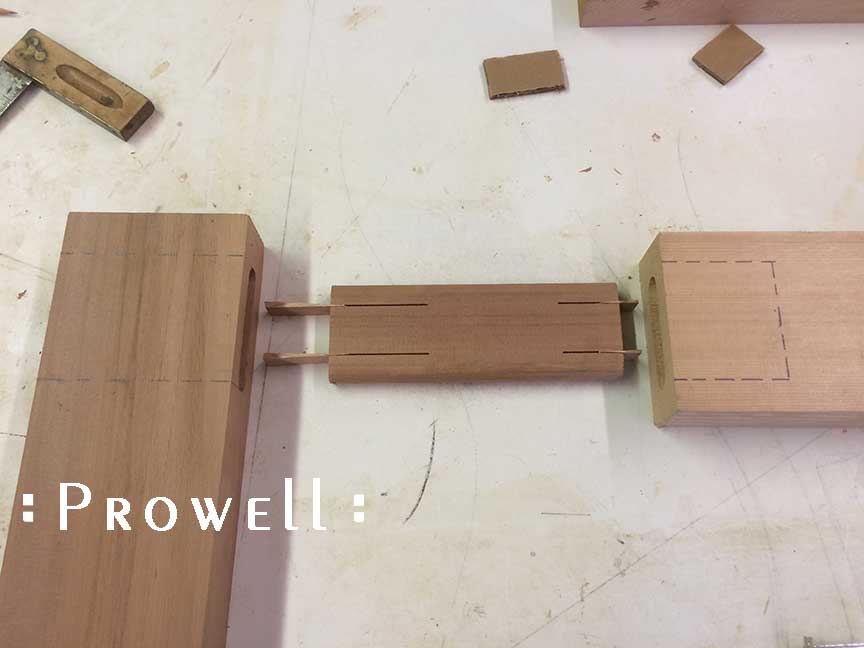

The basic premise shown below.

what joinery is used for building wood gates

WOOD DRIVEWAY GATES #31–PROGRESS

Shop Views

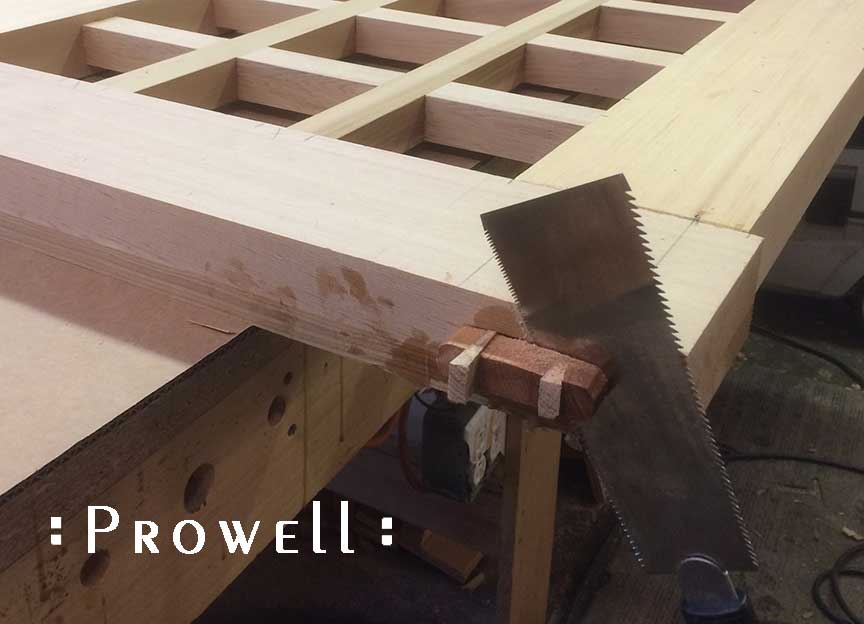

The exposed Through Tenon and Wedges on the vertical stiles at the bottom of the image serve to expand the tenon against the shoulders of the mortise with a permanency that will, with exposure to dew and fog and rain and humidity, expand and become even tighter. While in the drier season, the joint will shrink back to the original fit created in the shop.

WOOD DRIVEWAY GATES #31–PROGRESS

Shop Views

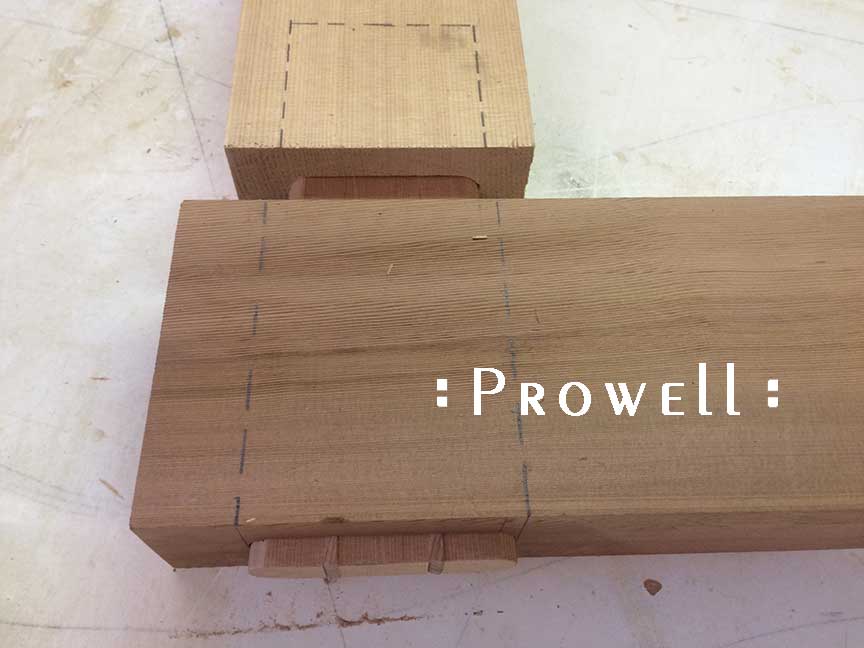

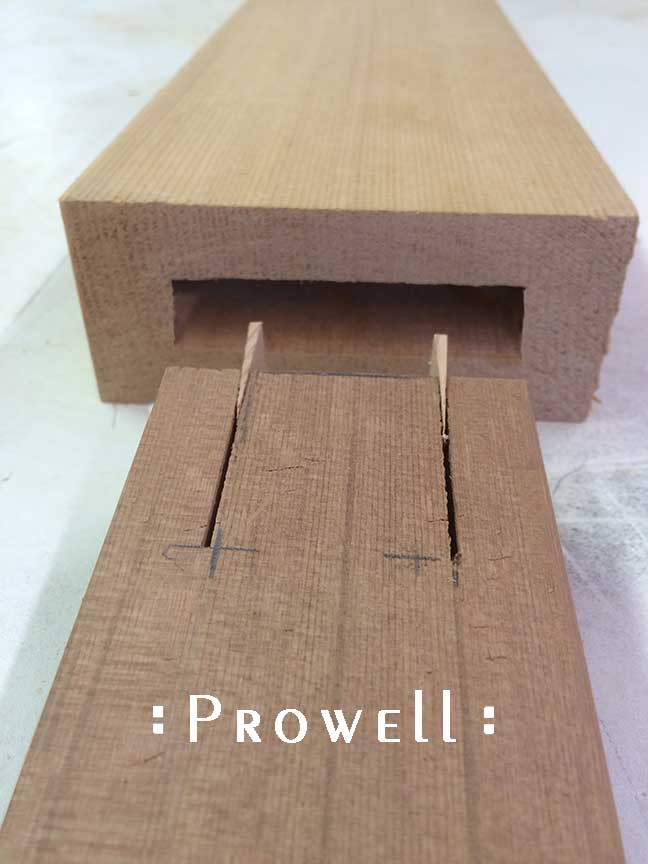

The blind wedges shown as they feed into the 3″ deep mortise in the horizontal rails. As the tenon is tapped in place, the wedges will eventually reach the back of the mortise and with each subsequent tap, they drive themselves into the tenon, expanding the cheeks against the shoulders of the mortise.

wood fence
The Designs of Prowell Woodworks are protected by Patents and Patents Pending.
