WOOD DRIVEWAY GATES #33

This Driveway Gate Style is Base Price + 11%
> Go to Base Price Table

CUSTOM WOOD DRIVEWAY GATE #33

The left leaf of Driveway Gate #33.
As an embedded steel gate, the top of the left stile features a 1″ pin welded to the inner frame and rising proud to fit the site-provided pivot plate.
On the bottom, the plate with its 1″ dia. pin is welded to the inner frame and will correspond to the pivot plate of the in-ground motor

Complicated.
Our wood driveway gates with the embedded steel frames are complicated to build, and insistent on aligning the various pivot pins to the specs of the in-ground motor housings to 1/32″ tolerance, lest the gates swing out of alignment and stress the motor bearings.

But . . . the advantage, to some, is the ability to feature a wood gate that spans an opening of any width, without exposing the steel frames, nor the visibility of cumbersome, above-ground motors

CUSTOM WOOD DRIVEWAY GATES #33

Ross, CA

With In-Ground automation, the motors are concealed below the stone directly beneath the gates. Whereas the traditional motors are mounted on a concrete pad just inside each gate post. A visual expression of approximately 28″ x 24″.

In-ground: The CUBIC 6H-6HV by Ditec Entrematic, or the Viking I-8, are identical. Both for heavy duty use. The majority opting for the Viking.
For more on the Viking I-8
Our Specifications Page, Option #3, Click Here
Or the Viking Web site, click here

Custom Wood Driveway Gate #33 in Marin County, CA

CUSTOM WOOD DRIVEWAY GATES #33

Ross, CA

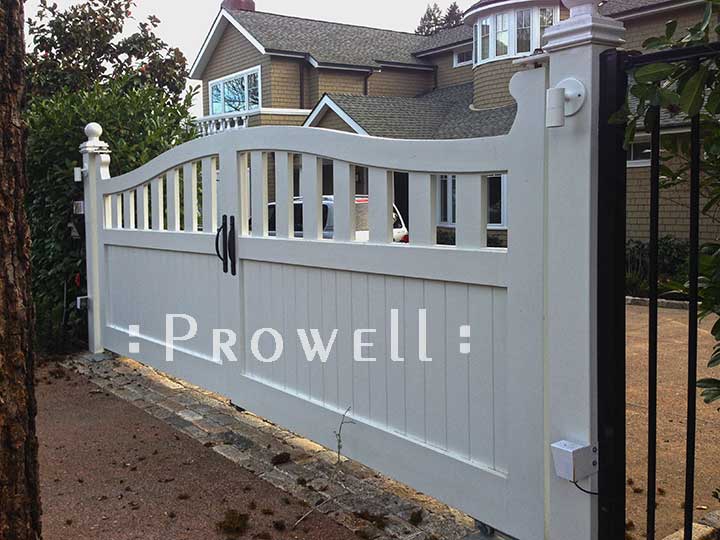

One of two identical automated Wood Driveway Gates in Marin County, CA to accommodate an entry / exit driveway configuration. With a matching pedestrian gate in the center.

Double Wood Driveway Gate #33 in San Francisco area

#33 IN-PROGRESS (Steel Frame)

DRIVEWAY GATES #33–PROGRESS

The frame with the extension tube and bottom pivot plate welded to specs prior to laminating the mirrored half of the wood gate.

DRIVEWAY GATES #33–PROGRESS

Showing the bottom pivot plate as it appears after final lamination.

WOOD DRIVEWAY GATES #33–PROGRESS

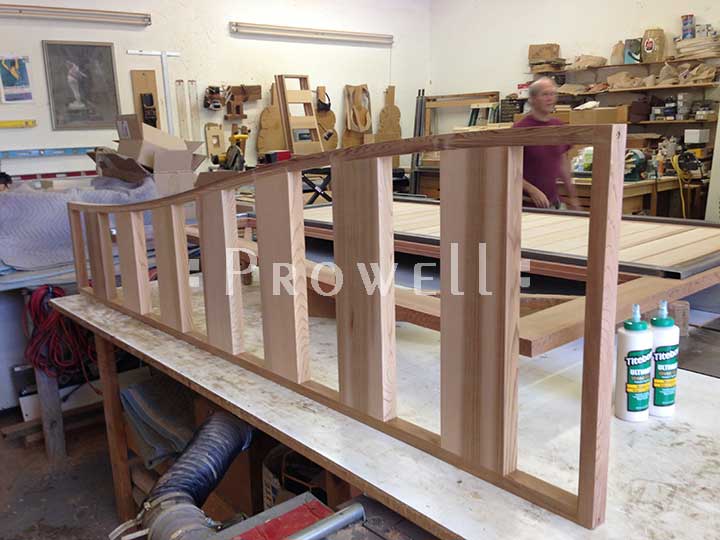

The upper insert, mortised to a dedicated frame.

WOOD DRIVEWAY GATES #33–PROGRESS
