WOODEN FRONT GATE #110

Wooden Front Gate #110 is Base Price + 28%
Go to Base Price Table

WOODEN FRONT GATE #110

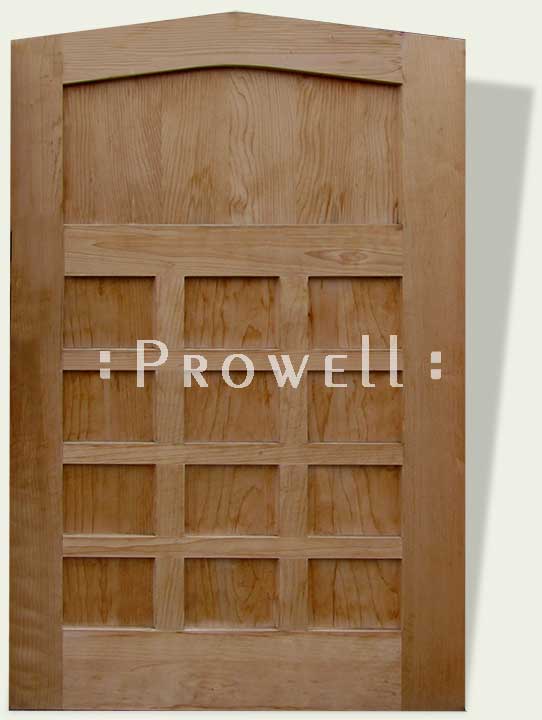

cropped photo showing wooden entry gates #110

WOODEN FRONT GATE #110

Berkeley, CA

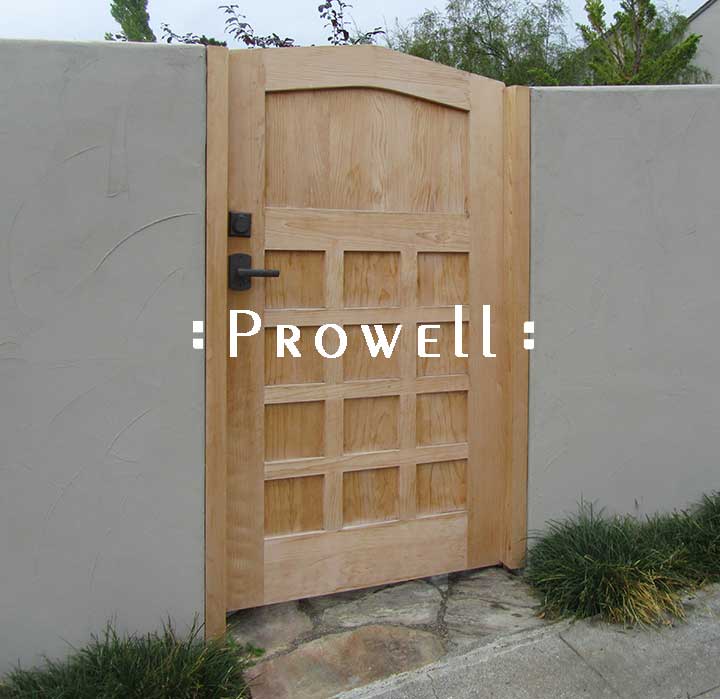

The second wooden gate entrance for this residence in Berkeley, CA. When hinging to an existing stucco wall, a pair of Prowell jambs are necessary, which in turn mount to the stucco, at 1-1/2″ thick each, withdrawing a total of 3″ from the stucco-to-stucco dimension.

Here we also see how the left stucco wall is noticeably taller than the right side wall. Upon closer inspection we can see how the left side of the gate is slightly below the top of the jamb and the right side is slightly above, which helps offset the two different wall heights.

site photograph showing the wooden front gate #110 in Berkeley, California

WOODEN FRONT GATE #110

Berkeley, CA

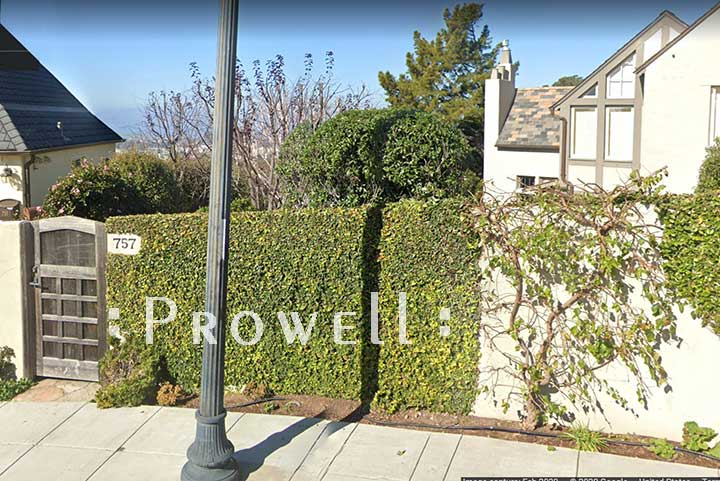

Photoagraphed 8 years after installation.

Site photograph showing the wooden front gate #110c in berkeley, California

WOOD GATE ENTRANCE #110-1

Oakland, CA

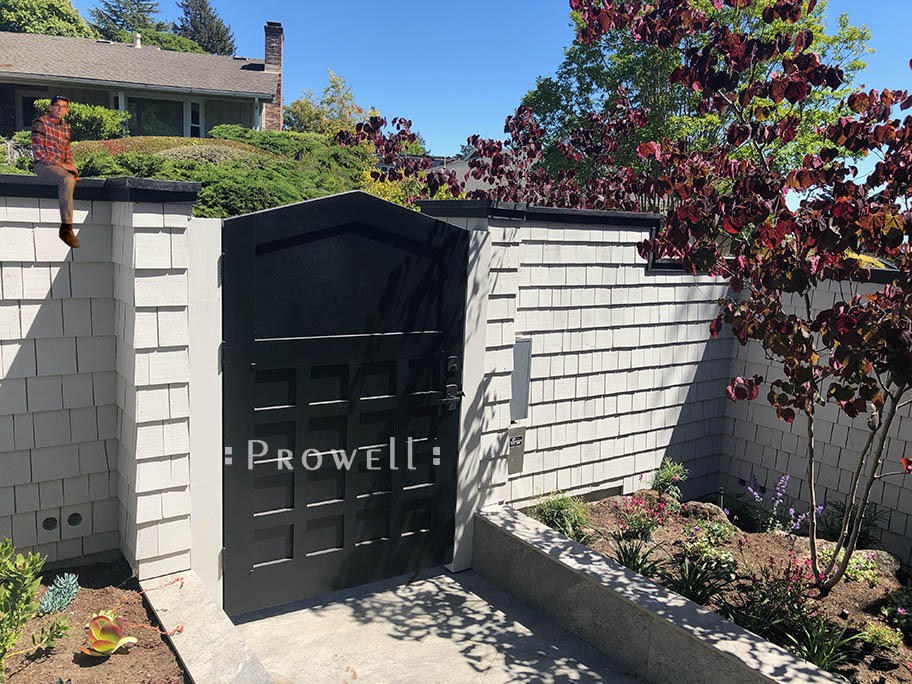

Wooden entry gates #110-1 with four grids across.

site photograph showing the wooden entry gates #110-1 in Oakland, California

WOODEN GATE ENTRANCE #110-1

Oakland, CA

Seen from within the property. Mounted to 6×6 posts set against the shingled wall. In this example the 6×6 jambs were provided by the installer and introduced in lieu of our standard jambs (1-1/2″T x 3-3/4″W) for two reasons: The wall itself may not be fully anchored, and simply wood framed, thus unable to fully support the wooden front gate over time. Secondly, the price-point extended for gates up to 48″, and takes a considerable jump for gates between 48″-60″ width. Introducing the 6×6 posts brings the gate width down to the 48″ pricing tier.
Ashley Norton latch ‘MD’ and dead Bolt 4175
Painted finish—applied on site 3 weeks after gate is installed.

site photograph showing the wooden gate entrance #110-1 from within the property. Oakland, California #110-1b in Oakland, CA

WOODEN FRONT GATE #110-1

Oakland, CA

Wooden Gate Entrance #110-1

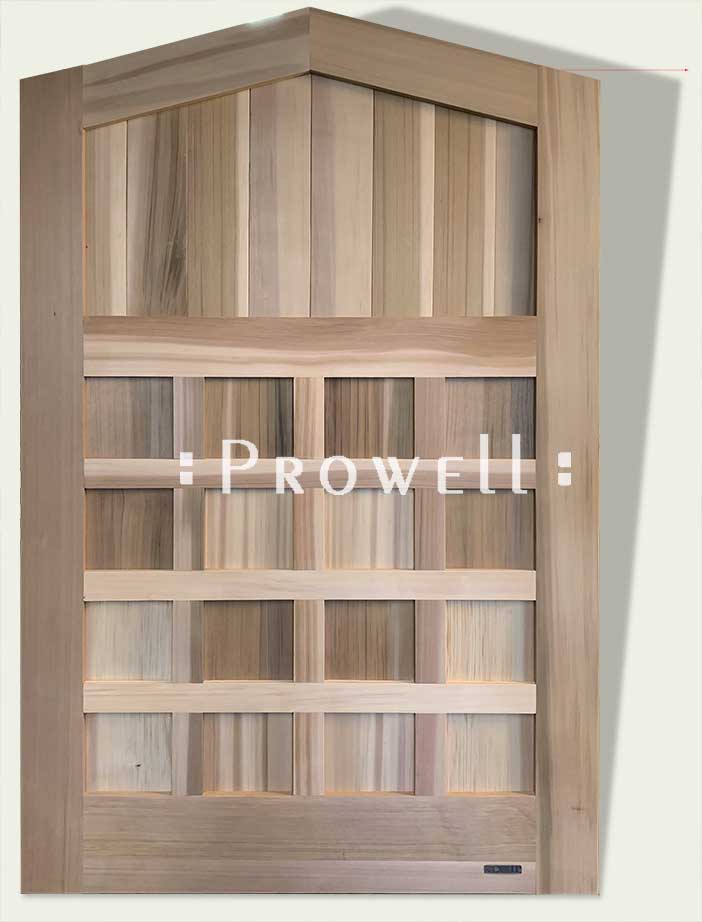

Cropped photo showing wooden gate entrance #110-1 with gabled top

WOODEN GATE ENTRANCE #110-1

Oakland, CA

O

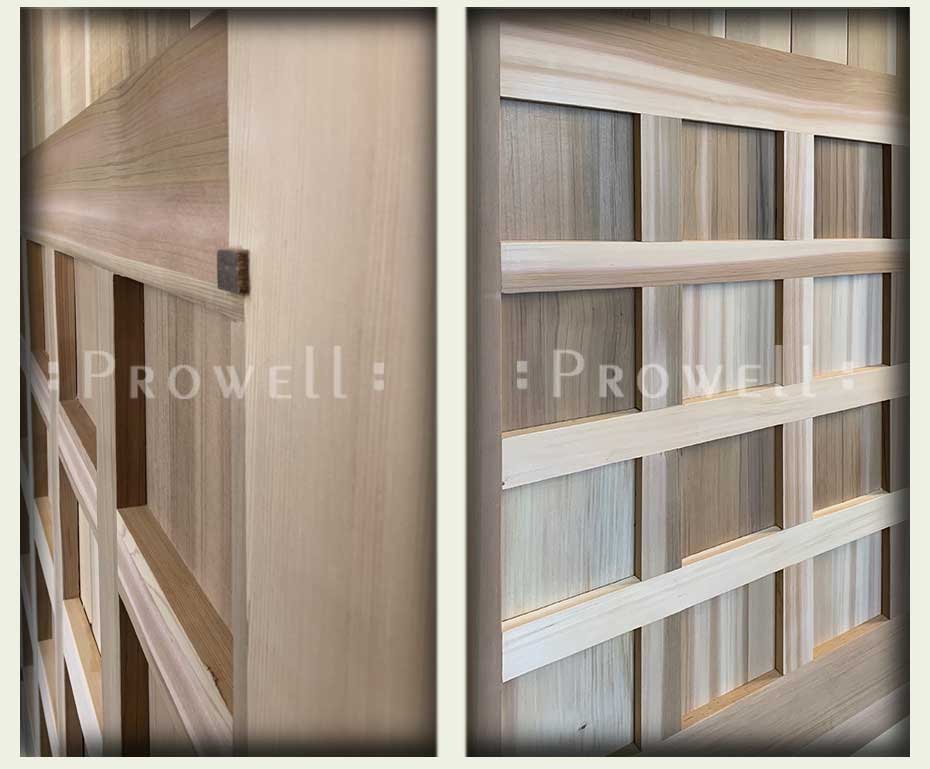

n the left, Charles having fun with Wenge corner mortise pins.Close-up cropped photos showing the woodworking details for wooden front gate #110-1



divider rule

BUILDING THE WOODEN FRONT  GATE #110-PROGRESS

The grid dividers are dadoed for the half lap joints, but also rabbeted for the insert panels. On the property side, shown here, each insert panel is fitted with small wood stops.

shop progress photograph showing the wood entrance gate with the insert panels in place for #110

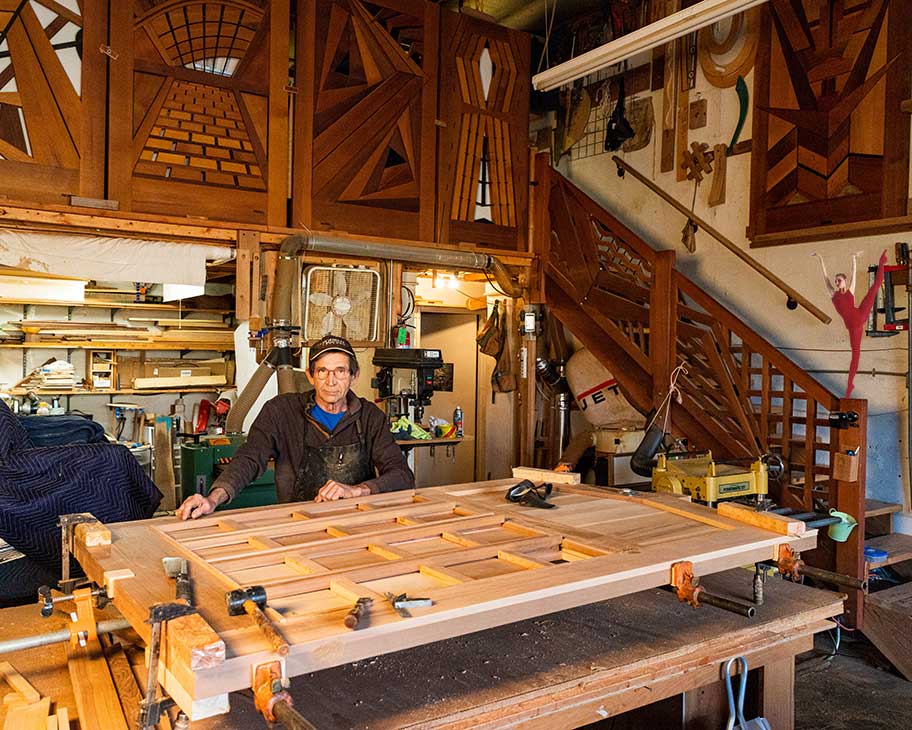

Charles seen with a nearly finished wooden front gate #110–applying the innumerable wood stops to every grids.

photo showing charles in the shop building the wood entrance gate #110 3110

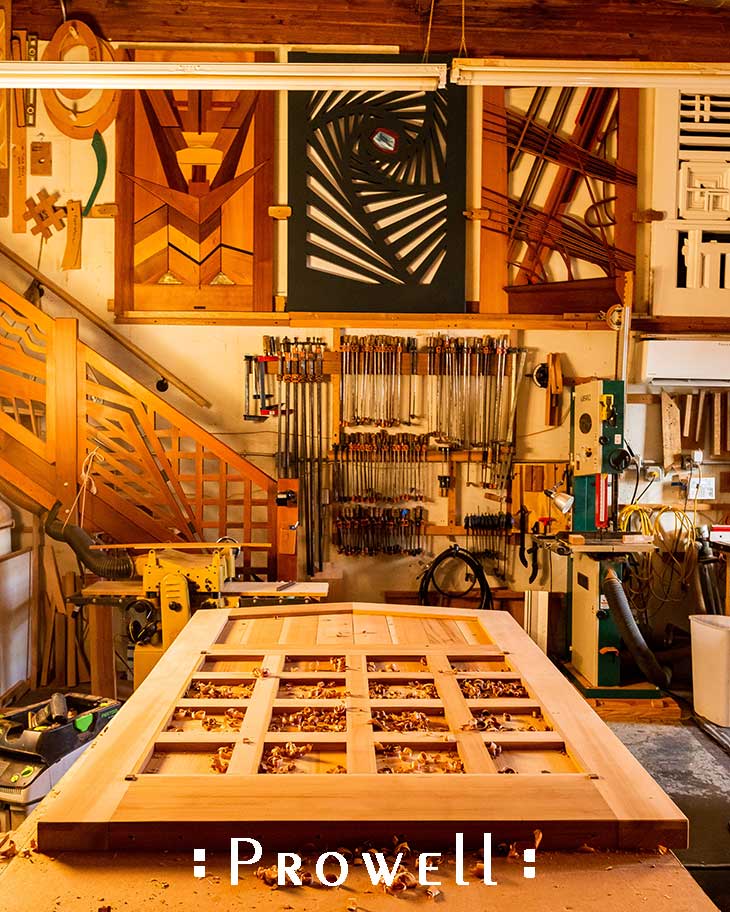

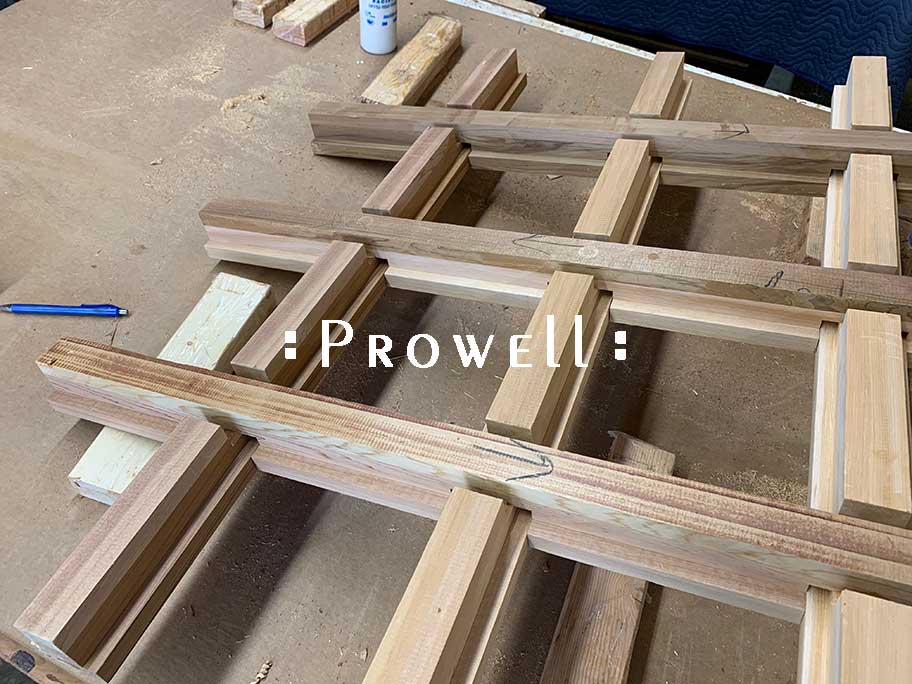

The joinery for the wooden entry gates #110 is somewhat complicated. Not prohibitive, but creating the half-laps, as well as the rabbets for the stops requires a little forethought. There is a black crayon arrow in the forefront; the wood stops run continuous on either side of this divider, with the stops in the other, horizontal direction, cut to fit between the continuous stops.

shop photograph showing the joinery for how to build the wooden gate entrance half-laps for #110

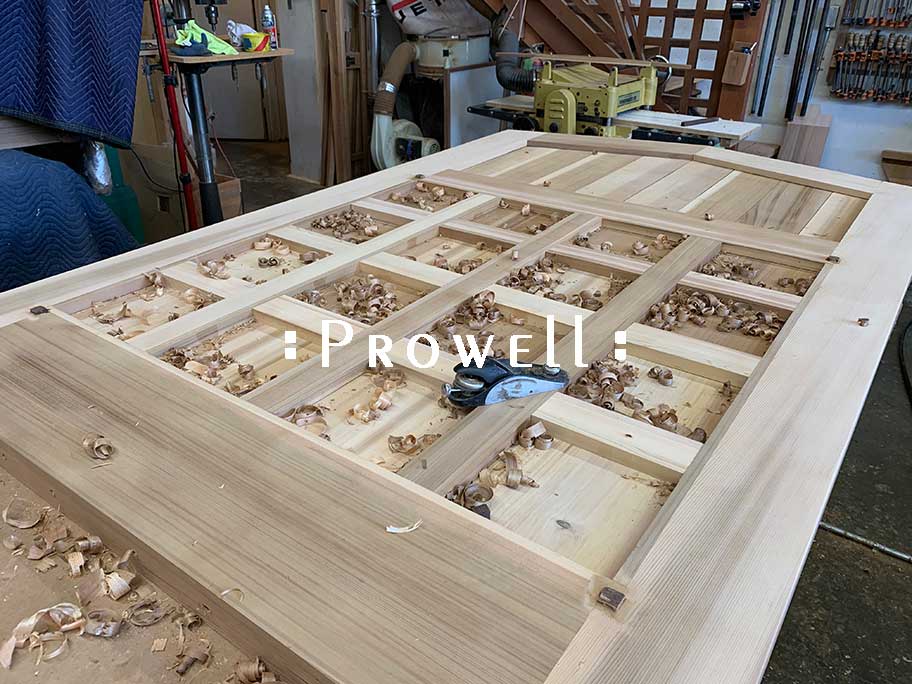

Once the stops are glued  in place, they are hand-planed flush, and then sanded smooth. The wooden front gate #110 is one of the more labor intensive designs.

shop photo showing how to hand-plane the wooden entry gates #110
