WOOD GARDEN GATES #31

This Garden Gate is Base Price + 7%
Go to Base Price Table
>>To Speakeasy Options

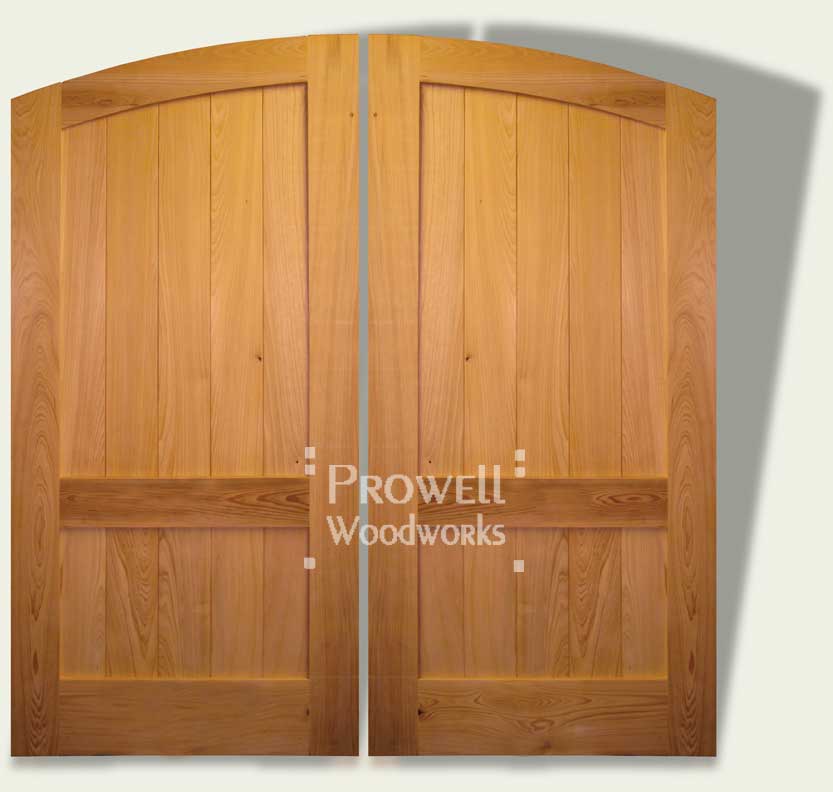

WOOD GARDEN GATES #31-2

Double privacy wooden gates #31-3
Because we don’t have site photos, it’s difficult to grasp the proportions. An overall rough opening width of 116″, with each gate at 58″ width x 8′ ht at the spring-points and close to 9′ at the apex.

cropped image of double wooden gates #30.

WOOD GARDEN GATES #31-2

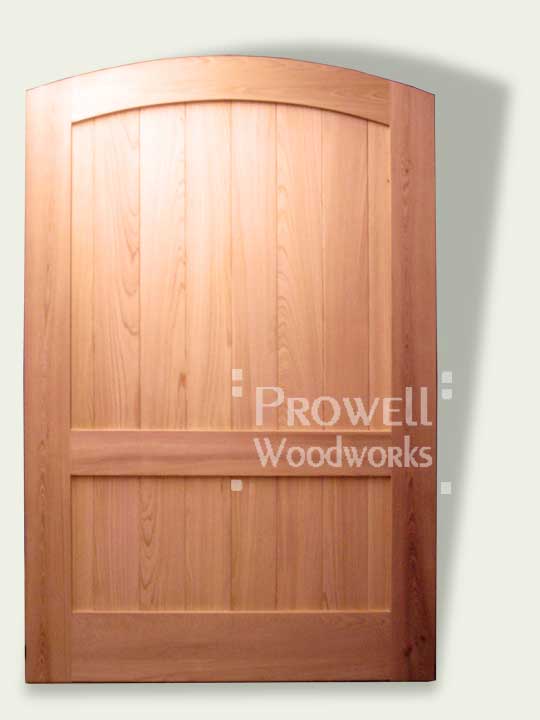

As a single solid privacy wood gate
Base Price + 7%

48-1/2″ width x 70″ net height to spring-point.

cropped image showing single wood gate 30-2

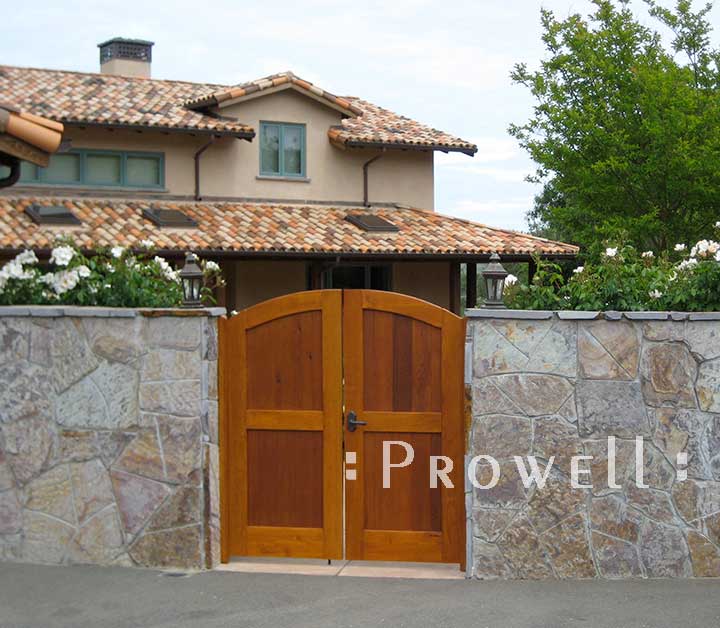

WOOD GARDEN GATES #31

Healdsburg, CA

As another elegant solution to garden gates when privacy is important. Almost identical to the garden gate #29 and #30, but with only one horizontal mid-rail. As a double or single Garden Gate.

The vast majority of our Garden Gate styles #31 and #29 are drawn to Spanish Colonial and Mediterranean architectures. Most often they are accompanied with various hinges straps and clavos. On the opposite side of these Garden Gates in Healdsburg, California, are a pair of Rocky Mountain strap hinges.

photograph showing double wood gates in Sonoma County, California

WOOD GARDEN GATES #31-9

* With open slots
Palo Alto, CA

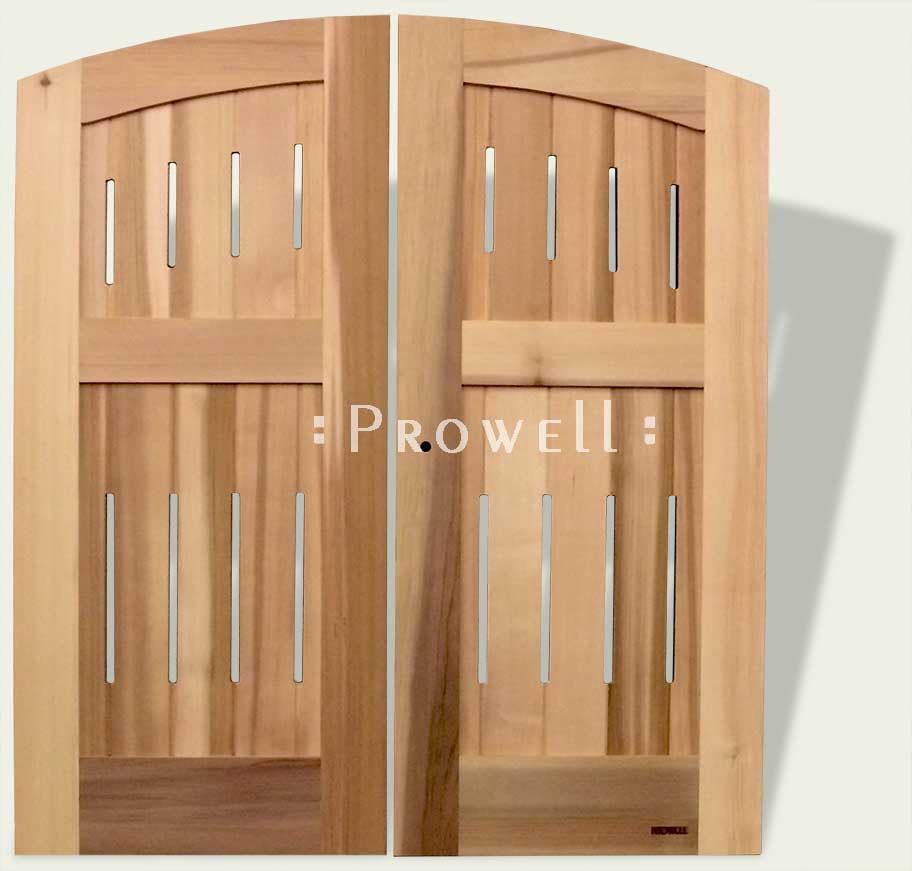

The wood gate #31-9 departs from the standard #31 by featuring our open slots.

cropped image showing wood fence gate 31-9

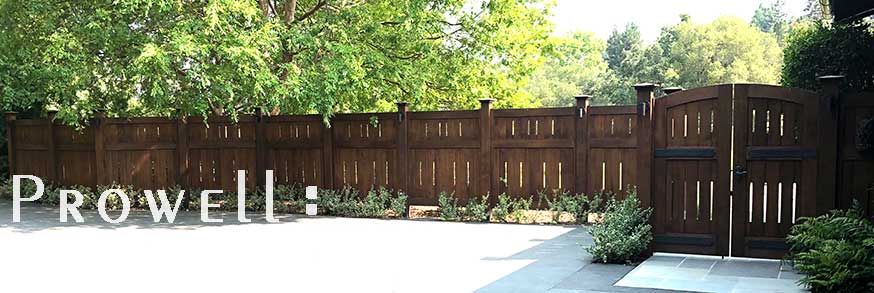

WOOD GARDEN GATES #31-9

Palo Alto, CA

The wood gate #31-9 accompanied by a series of Fence Panels style #1.
Rocky Mountain Ornamental hinges on both sides of the gates. RMH Hinge straps OH324. (3-1/2″ x 22″ long).
Rocky Mountain gate latch GL-E701.

site photograph showing double wooden gates #31-9a in palo alto, california

WOOD GARDEN GATES #31-9

Palo Alto, CA

Site-applied Sansin Translucent ‘Weathered Wood 04” stain.

Site photograph showing double gates #31-9b in Silicone Valley, California

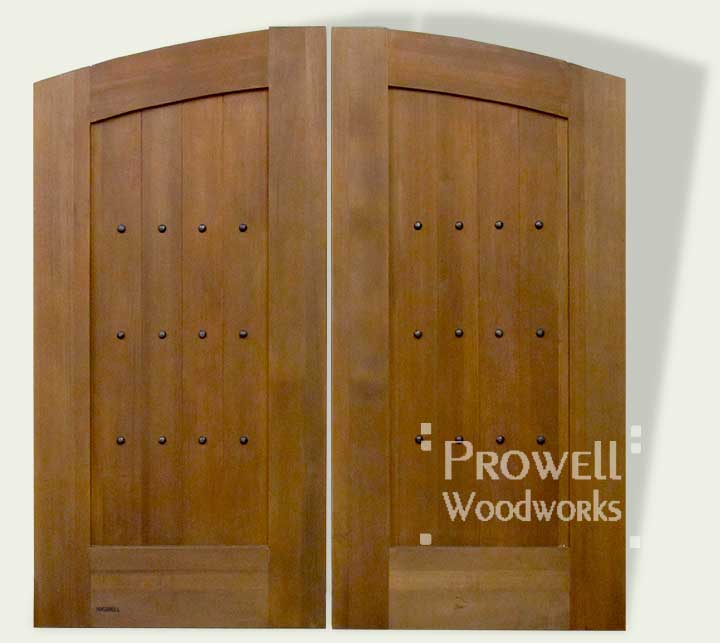

WOOD GARDEN GATES #31-3

* not Including the Bronze Clavos

The custom wood gates #31-3 is designed to exhibit a little more muscle, or girth. The top arched rail and vertical frame stiles are 7-1/4″ width instead of the standard 5-1/4″. The bottom horizontal rail is 10-3/4″ instead of the 8-1/2″ standard.

cropped image of custom wood gate #31-3

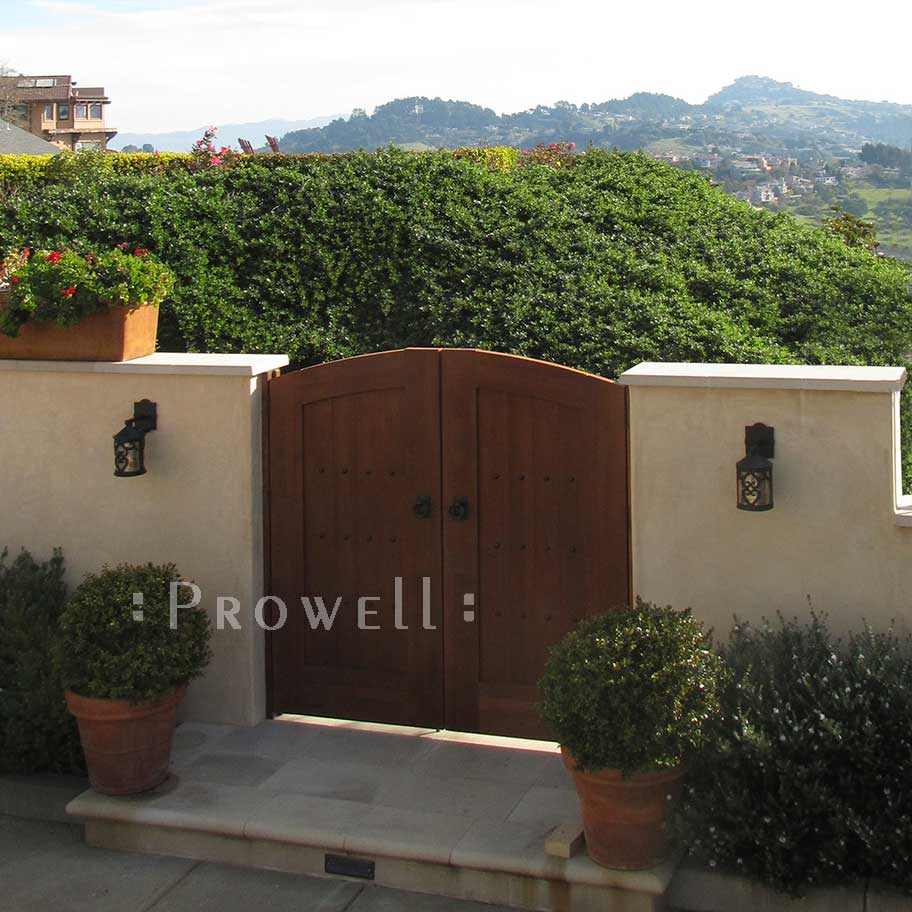

WOOD GARDEN GATES #31-3

Tiburon, CA

Just beyond the rise, one of Charles’ favorite bay area landscapes. A rare level grade out the back door to an expanse of about 60 yards, bordered by an infinity pool aligned to a view of Tiburon Bay and the San Francisco skyline. In the nestled hills of Tiburon, a level backyard landscape is a rare treat. We’ll look to add a photo from that vantage in the coming months.

Photograph showing custom wood gate 31-3 in tiburon, CA overlooking tiburon bay. tiburon, CA. Prowell

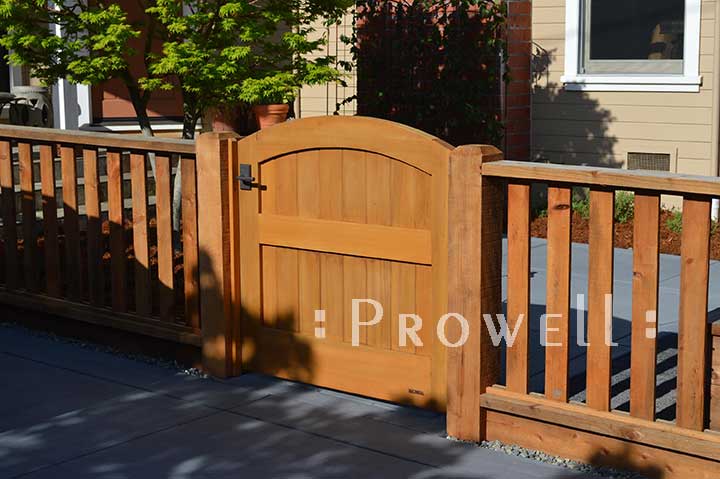

WOOD GARDEN GATES #31-4

Petaluma, CA

Wooden gates #31-4 show the middle rail set higher.
Seen as 48″ width x 48″ ht to spring-point (where the arch begins)
Flanked by the 3rd-party fence.

Finish: WoodRX ‘Natural’

Rocky Mountain latch E414

wooden gates 31-4 in Sonoma County, California

WOOD GARDEN GATES #31-4

Petaluma, CA

Several different fences mediums converging to a side entry wooden gate. A photo that might once have driven Charles and Ben nuts. But the passing years have softened them to the individuality of each homeowner’s own personal landscape.

Pre-finish WoodRX ‘Natural’

photo showing the site of wooden gates 31-4 in Petaluma, CA

WOOD GARDEN GATES #31-4

Petaluma, CA

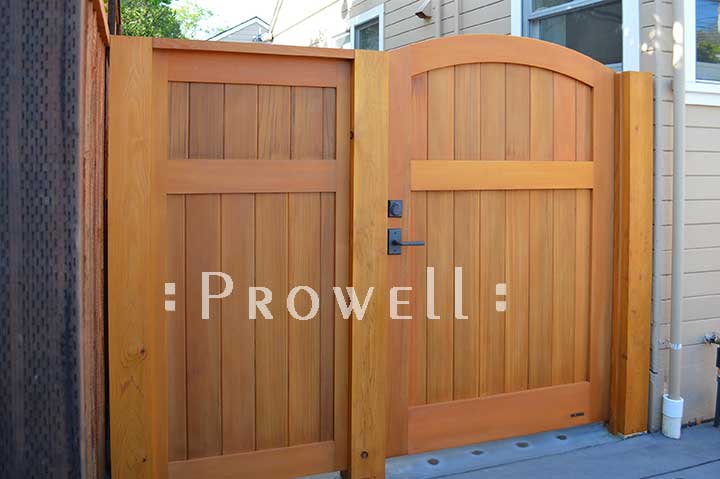

Wooden gates 31-4 shows another side entry shown with a flanking panel style #20, which features a top 2×6 cap requested by the homeowners.

Pre-finish WoodRX ‘Natural’

photo showing the side entry of wood fence gate 31-4 in Petaluma, california

#31-5
Base Price

WOOD GARDEN GATES #31-5

The custom wood gate #31-5 with a straight top rail.

cropped image of custom wood gates #31-5

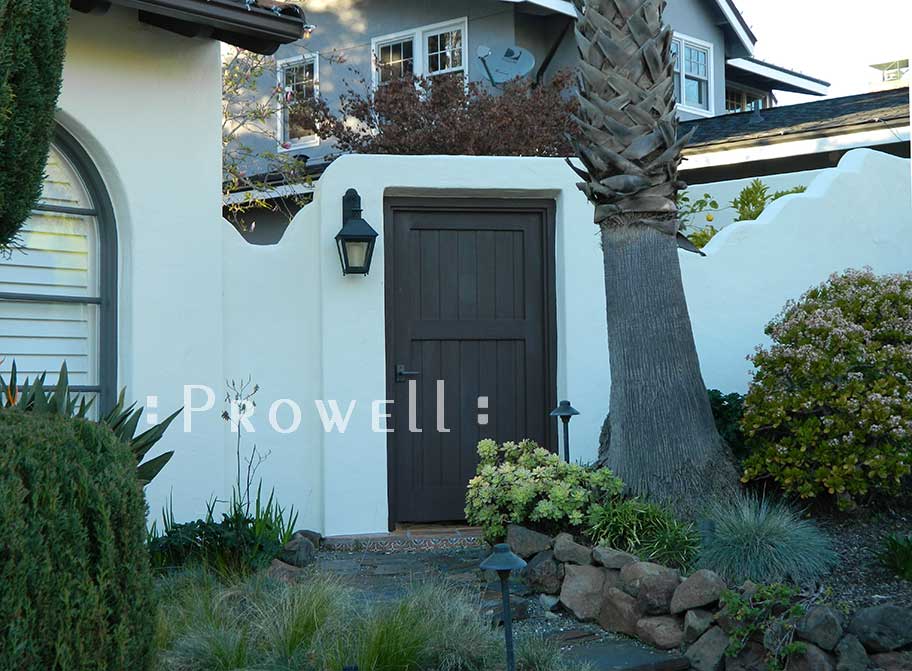

WOOD GARDEN GATES #31-5

Oakland, CA

Site photo of wooden gates #31 in Oakland, california

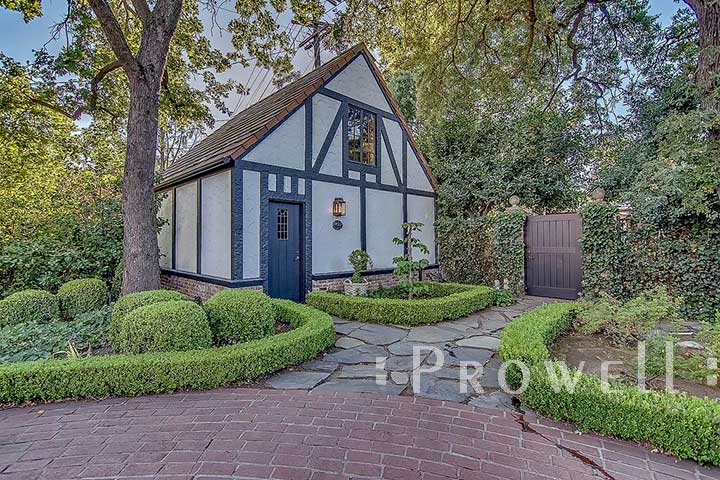

WOOD GARDEN GATES #31-8

Stockton, CA

Another example of the wood gate #31-8 with a straight top rail.

site photo of wood fence gate 31-8 in stockton, California

WOOD GARDEN GATES #31-7

* w/o clavos
St Helena, CA

Double wooden gates style #31-7 at only 36″ x 59″ overall width. Bronze clavos as 1″ rounds.

cropped image of gate #31-7 in Napa county, california

WOOD GARDEN GATES #31-7

St Helena, CA

Site photo of double wooden gates 31-7 in napa county, california

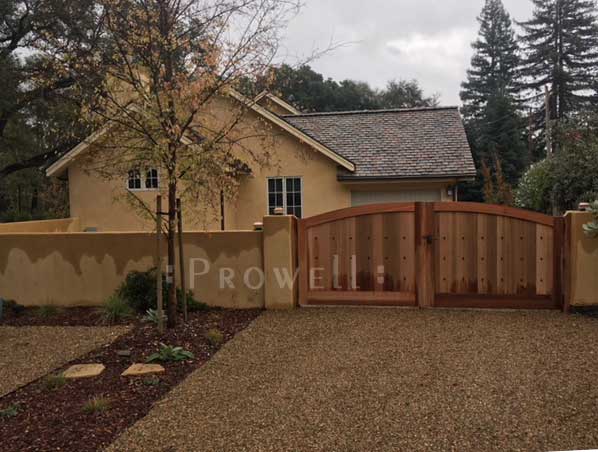

WOOD GARDEN GATES #31-7

St Helena, CA

The matching Wood Driveway Gate Style #8 on this same site.

photo showing the driveway gate #8 in napa county, california

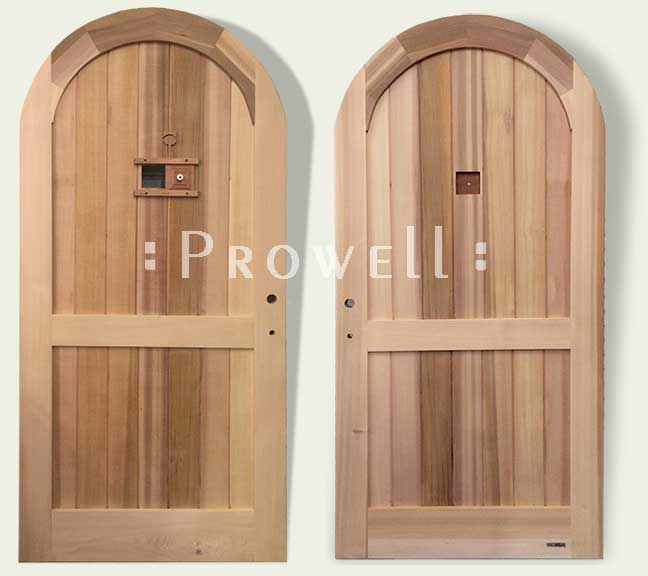

WOOD GARDEN GATES #31-6

Pismo Beach, CA

Wood gate #31-6 as another example of the full radius arch. On the left the property side of the gate with the speakeasy style #1. On the right, the street side of the gate.

Full radius arches are normally a result of matching an stucco or stone arch on site. Measurements are provided by your installer that allow us to mirror that same radius on the gate.

cropped photo of gate with speakeasy.

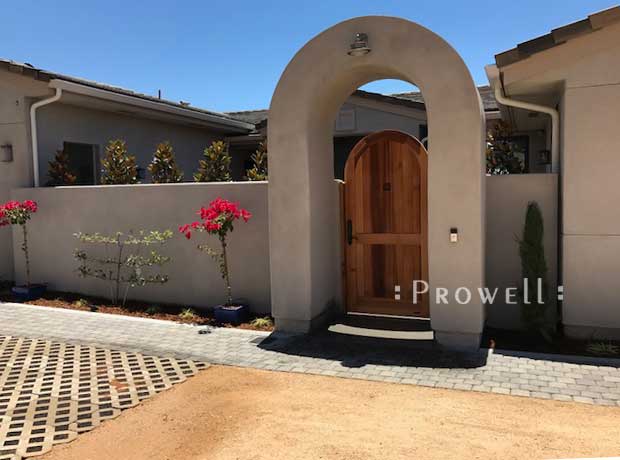

WOOD GARDEN GATES #31-6

Pismo Beach, CA

Set to a stucco surround.

Photo showing gate 31-6 with a 180 degree arch in Pismo Beach, Californiawood arched garden gate in Pismo beach

WOOD GARDEN GATES #31-6

Pismo Beach, CA

Upon approach to the courtyard.
The gate itself is set 2′ back from the stucco surround.

Photo showing wooden gates 31-6 in Pismo Beach, California

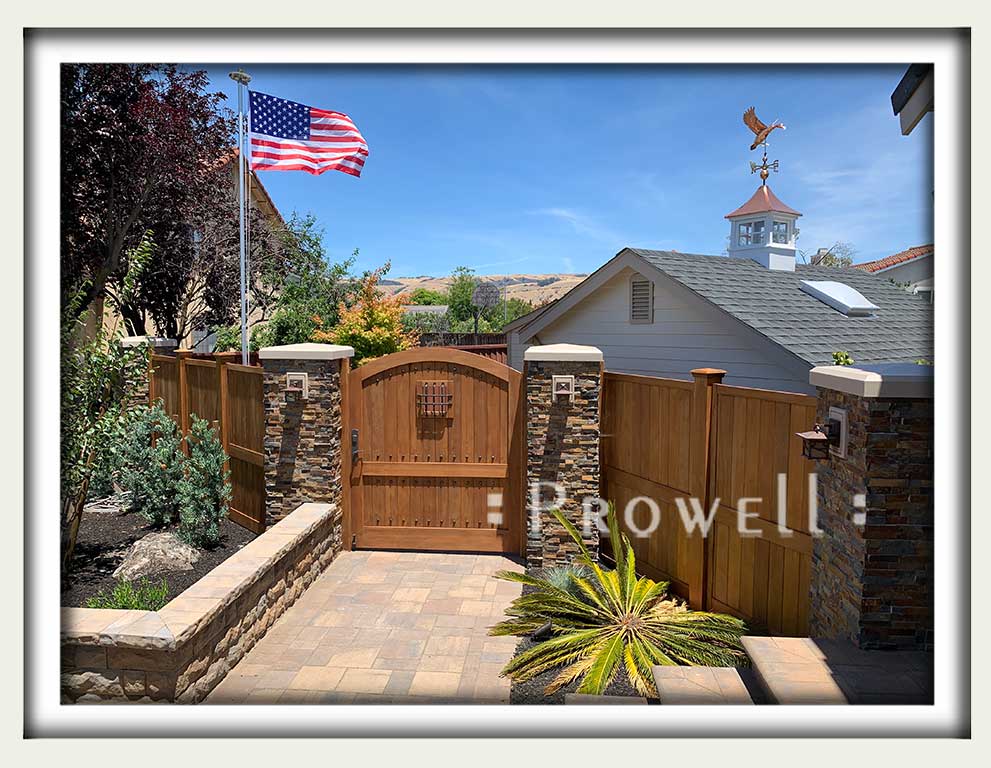

WOOD GARDEN GATES #31-10

* W/O grill and clavos
Fremont, CA

Wood gates #31-10 at 69″ width. Shown with the Speakeasy Option # 4-A. Because the Fence Style #20 mount to the columns at an angle, the jambs were embedded to the column block core and ripped to the angle that allowed the panels to mount square to the jambs.

site photo showing wooden gates 31-10 in san francisco bay area #31-10 in Marin county, CA

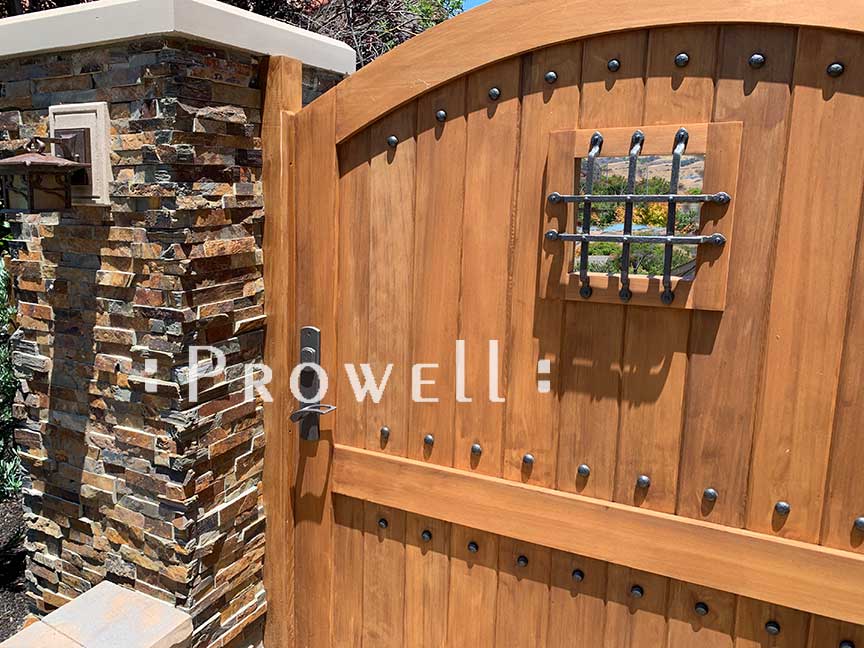

WOOD GARDEN GATES #31-10

Fremont, CA

With irregular stone, the jams are embedded t mount directly against the column’s block core.

Rocky Mountain latch E558/E556

Photo showing wooden gates 31-10 in fremont, california

WOOD GARDEN GATES #31-10

Fremont, CA

With irregular stone, the jams are embedded tO mount directly against the column’s block core.

Rocky Mountain latch E558/E556

Photo showing gate jambs embedded to the column block

WOOD GARDEN GATES #31-11

* Dutch door with speakeasy cut-out
San Anselmo, CA

Custom wood dutch gate #31-11.
Essentially two gates
Showing a simple cut-out speakeasy 7″W x 8-3/4″ to apex

RMH latch E236
RMH Dutch Door Bolt DDB7. (Not shown–mounted on property side of gates)

WOOD DUTCH GARDEN GATE #31-11

WOOD GARDEN GATES #31-11

San Anselmo, CA

photo showing dutch door gate #31-11 in San Anselmo, California

IN-PROGRESS
How do I build a wood gate?

WOODEN GATES #31-PROGRESS

The top arching rails are roughed out on the bandsaw and evened out with a hand plane.

Planing a wood garden gate. PROWELL

WOODEN GATE #31-PROGRESS

The underside of the arch is approached with a spokeshave.

Shop photo showing a Spokeshave on a wood garden gate

WOODEN GATES #31-PROGRESS

Thhe collection of Ben’s spokeshaves aligned vertically on the left side of the center panel. To their right the drawknives, working with the same principle of pulling the blade toward you. The top right drawknife Charles inherited from his step-father, who inherited it from his father, who inherited it from his father, C.E. Glenn of Champaign, IL. back when Teddy Roosevelt was a rising star in the Albany, NY legislature.

image showing a collection of woodworking spokeshaves. prowell

WOODEN GATES #31-PROGRESS

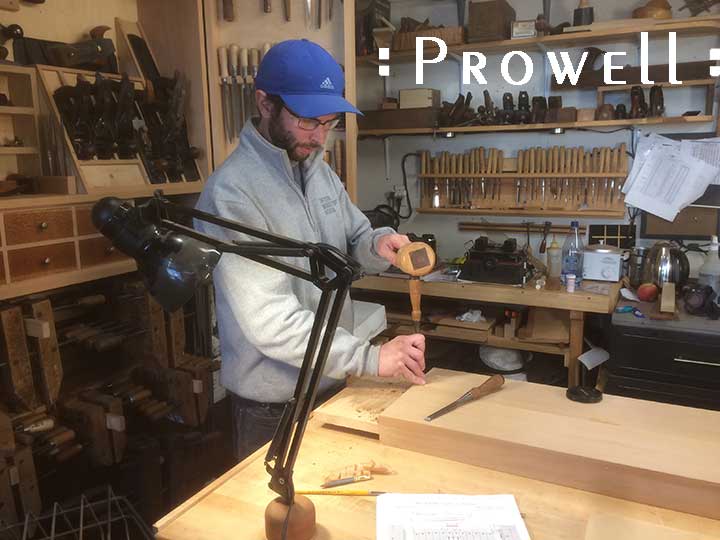

Large wooden gates with arching top rails receive the added strength of what’s called a Slip Joint. Ben shown preparing the tenon.

shop photo showing Ben using the Slip Joint for large wood gates

WOODEN GATES #31-PROGRESS

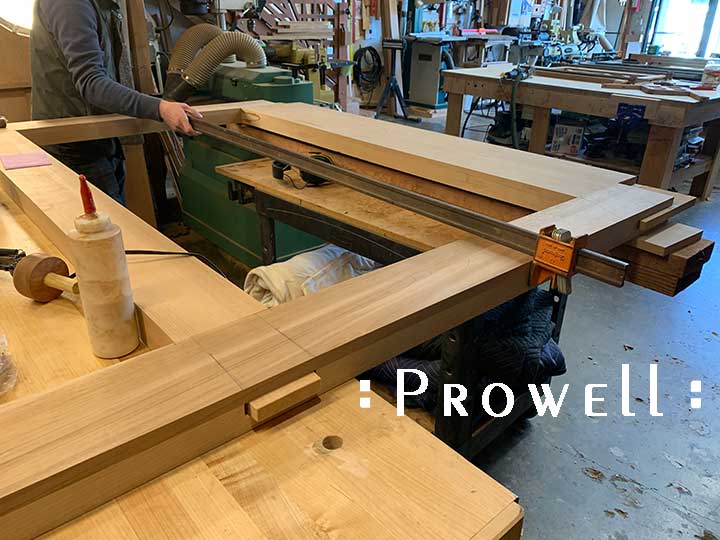

The top rail fitted prior to scribing the arch. The middle rail showing thr thru-tenon.

Shop photo on how to build a prowell wood gate #31

WOODEN GATES #31-PROGRESS

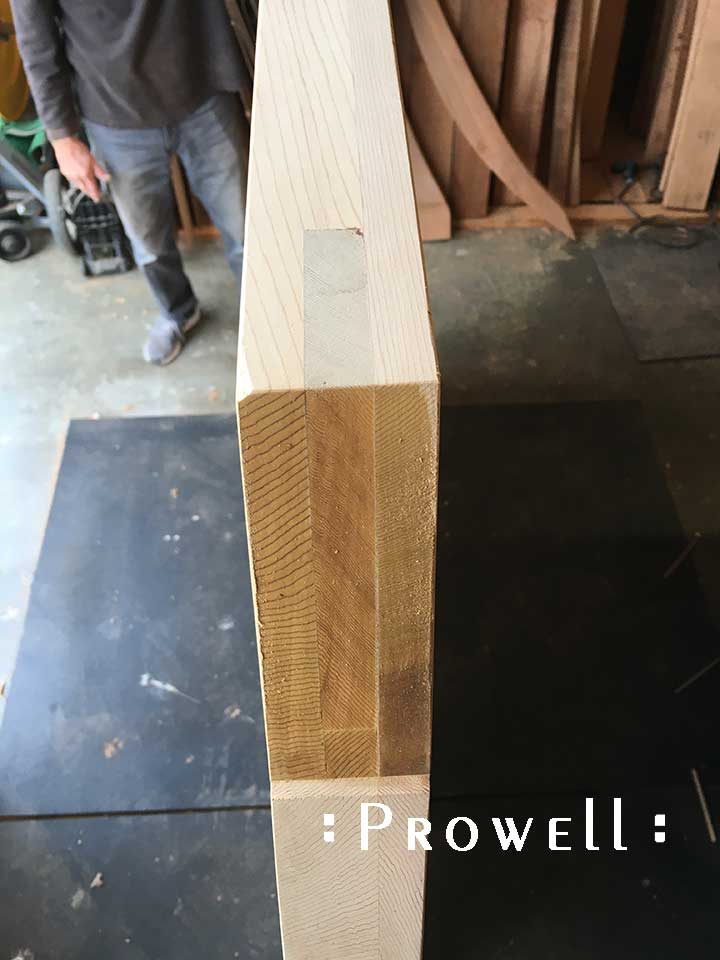

The end result. A gate #31 that will never sag.

shop photo showing The Slip Joint for wood gates #31. prowell
