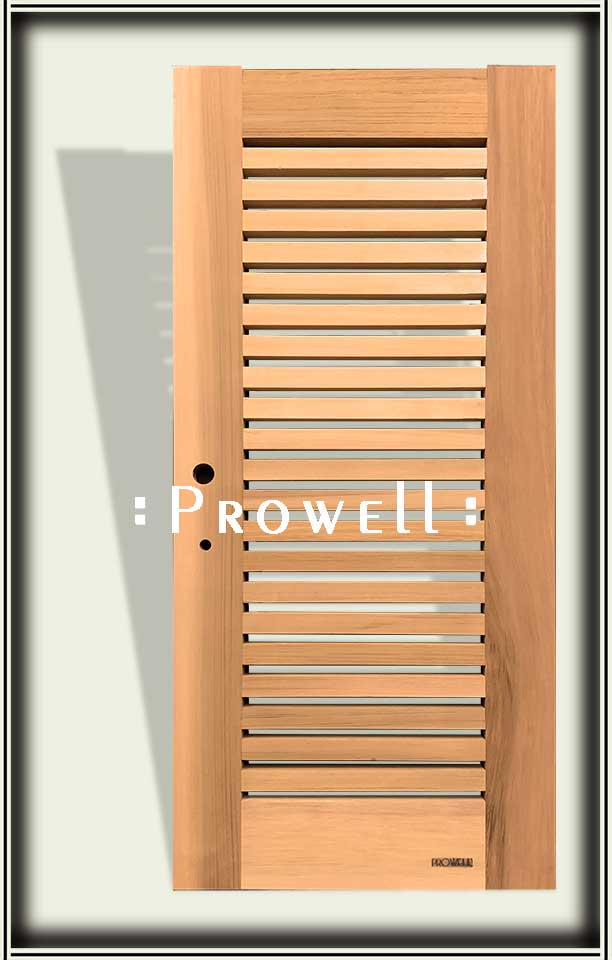

HORIZONTAL GATE #62
Horizontal Gate #62 is Base Price + 36%
Go to Base Price Table
Wood gate designs #62 is limited in width to 42″. Spacing between pickets at 3/4″.
For wider gates, the slats must be stabilized by either Pattern Blocks, or a continuous through tenon.
Pattern Blocks can be seen on the Fence Specifications page.
An example of a continuous thru-tenon can be seen on Fence style #3

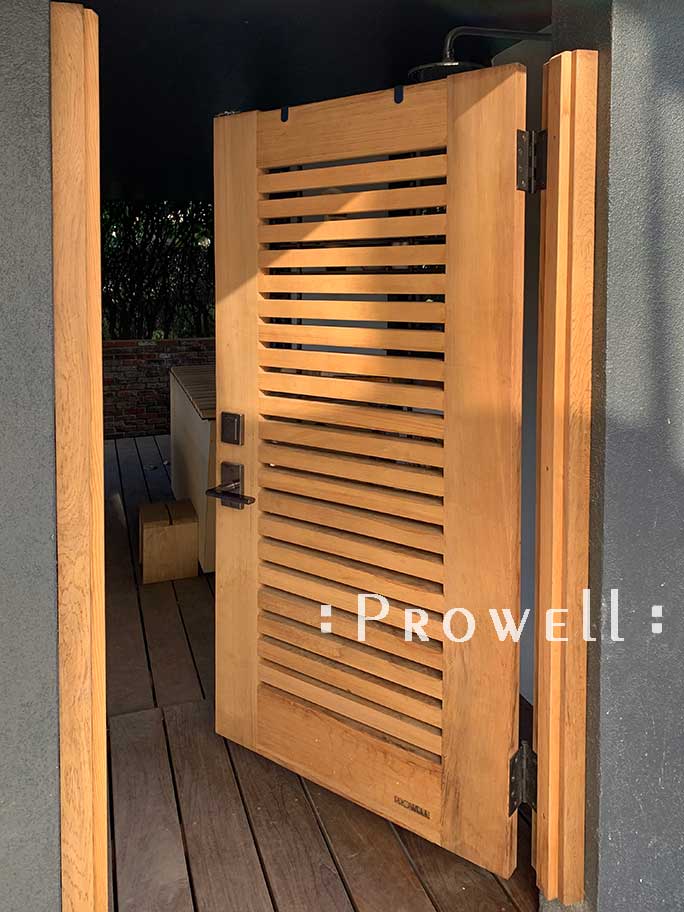

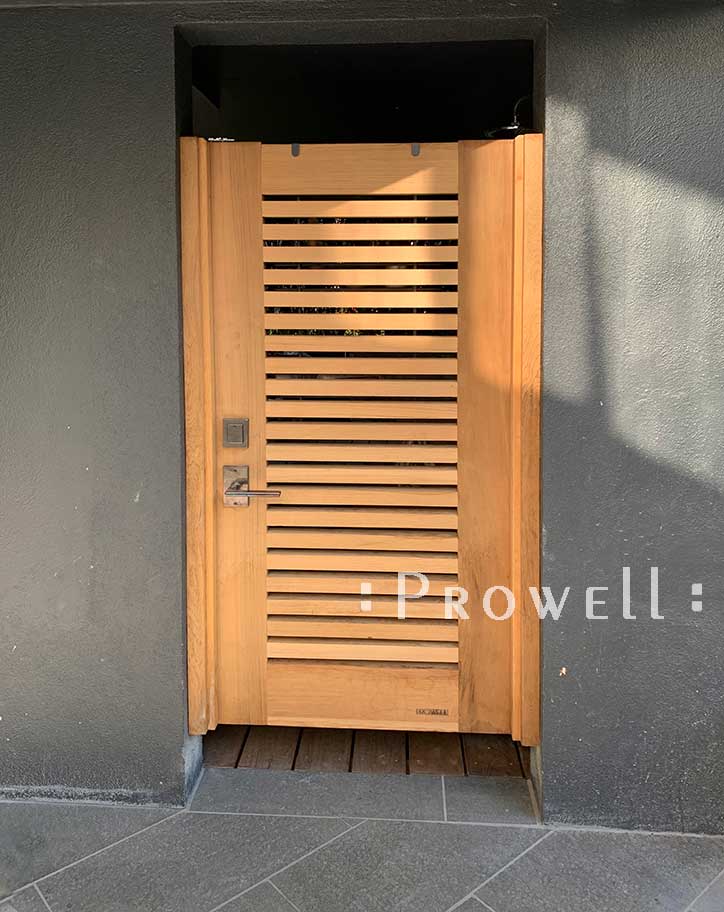

When set to defined opening, the #62 offers a solution to an inner courtyard passage.
At only ¾” spacing between the pickets, any bowing or misbehavior is noticeble to the laymen’s eye. Hence the limit on the gate width for this desgn.

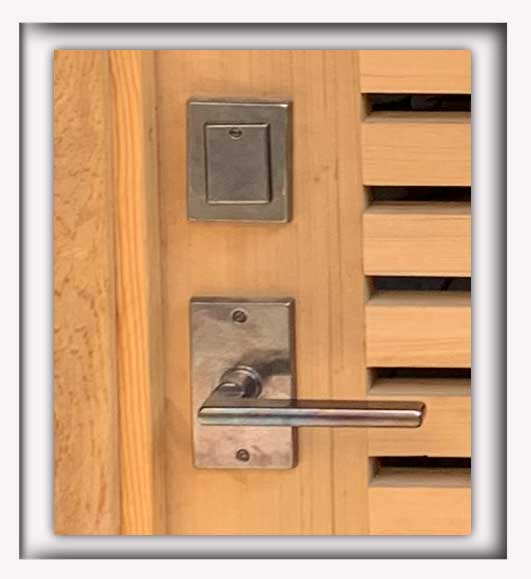

Rocky Mountain solid bronze gate latch Metro GL-E236 and dead Bolt Metro DB250 in Silicone Bronze Medium patina.

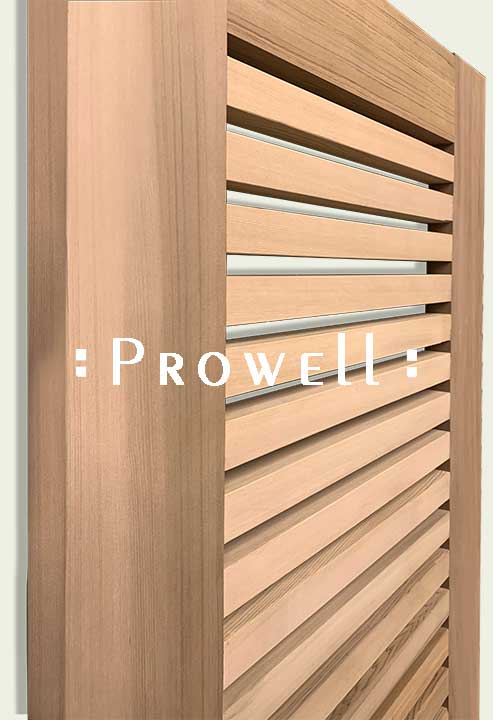

Each picket of wood gate designs #62 is joined to the vertical stiles with mortise and tenon joinery.
