VANISHING PERSPECTIVE GATE #211

Garden Gate #211 is an excursion into the illusion of the three-dimensional, vanishing perspective gate.

What does that mean?
1) Definition: Creating the illusion of 3-D depth from a 2-D platform.
2) Definition: Considering an object or entity from a point of removal, such as how succeeding generations view an act of history with a continuum that is influenced, but distinct. e.g. as Milan Kundera suggests, the soldier who served under Stalin was tutored in obedience to the greater cause, while somewhat disturbed with the ruthless dismissal of human life. That soldier’s son, born at the time of Stalin’s death, hears his father’s stories and, upon reaching maturity, makes his own assessment regarding Stalin as a considerably less benevolent figure who exemplified the strength of cruelty. The soldier’s granddaughter, born 25 years after Stalin’s death, listens to her father’s assessment and upon reaching maturity, arrives at a perspective influenced by present-day revelations on history and firmly holds Stalin’s place in history as a rampaging cold-blooded murderer on a scale far exceeding Adolf Hitler. The graduations from the soldier to his granddaughter can syntactically be referred to as Vanishing Perspectives.

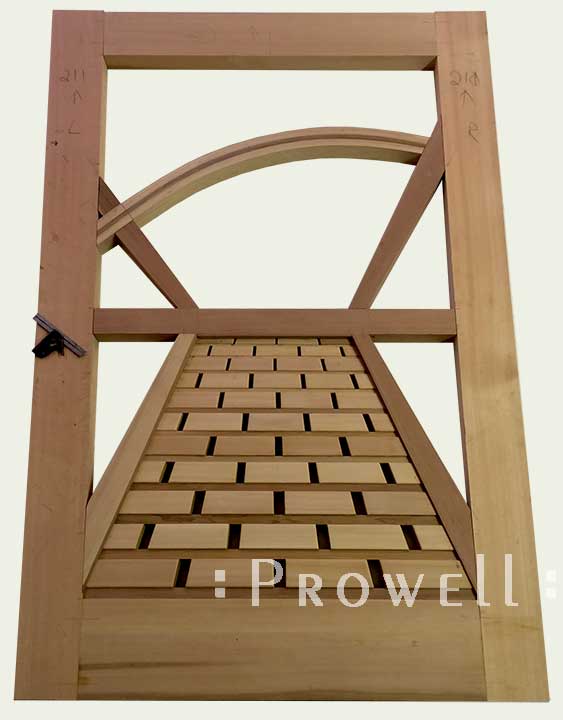

Unique wood gate #211

The back, or property side of the three-dimensional gate #211.

cropped photograph showing the illusion gate 211.

cropped photograph showing the yellow brick road gate #211

cropped close-up photo showing the trompe l’oeil #211

In-Progress

BUILDING THE VANISHING PERSPECTIVE GATE #211–PROGRESS

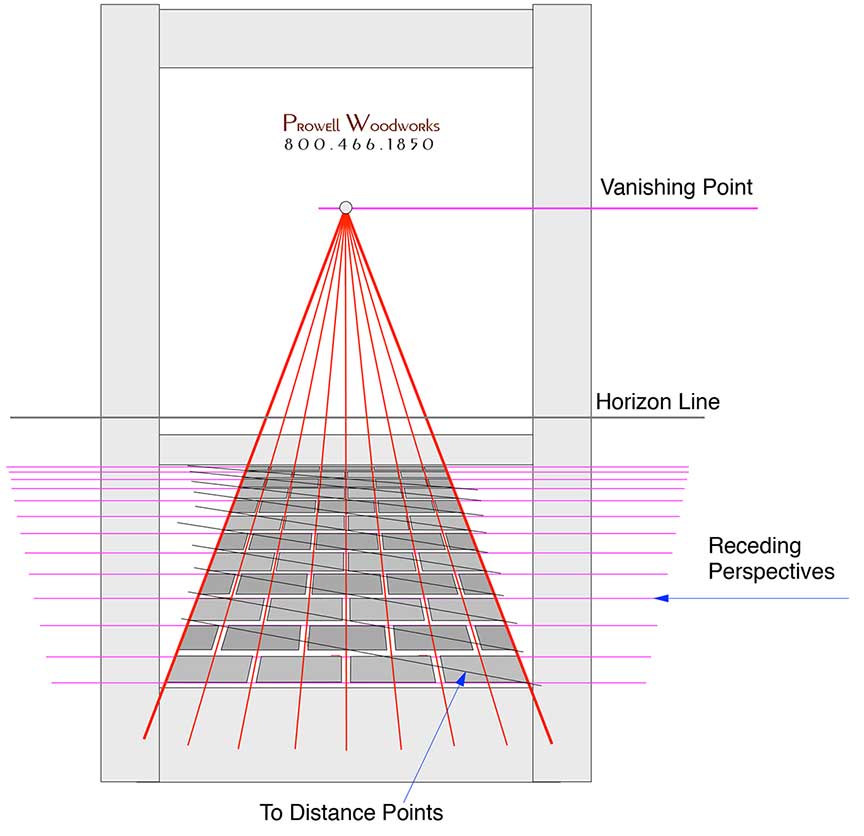

Determining the disappearing perspective  on the drafting board began with the tutelage of Charles’ mother, a painter and illustrator. It was revisited in college, and over and over throughout the last 40 or so years.

diagram showing how to draw a trompe l'oeil on a drafting board for #211

THREE-DIMENSIONAL GATE #211–PROGRESS

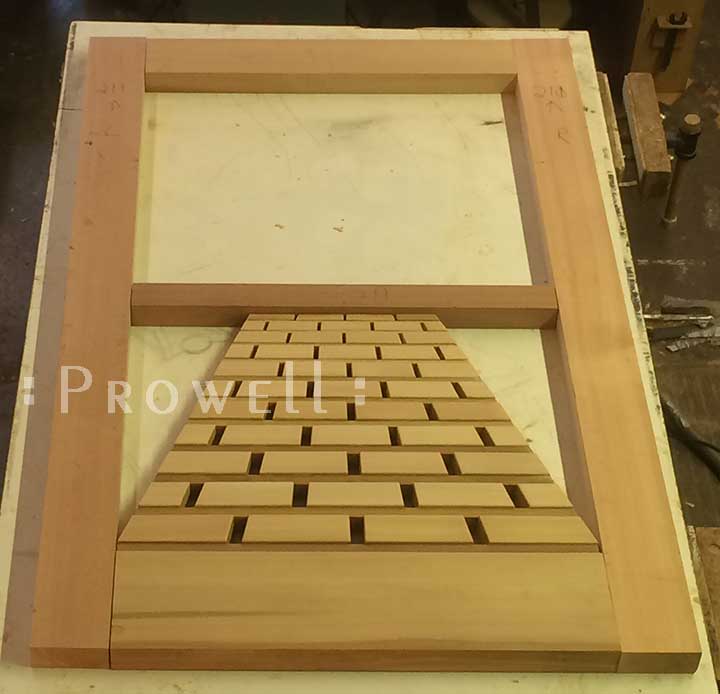

The tangible layout of the lower perspective is not drawn from a patterned slab, but in fact a series of blocks. Every one of them is a different length, width, angle, and thickness. As well as the variable spacing between the blocks and the rows. A receding yellow brick road.

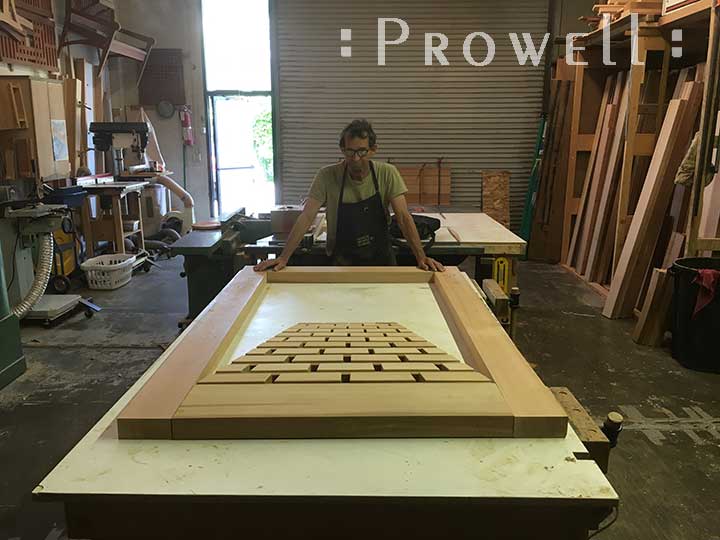

shop progress photo showing charles with the illusion gate #211aa

ILLUSION GATE #211–PROGRESS

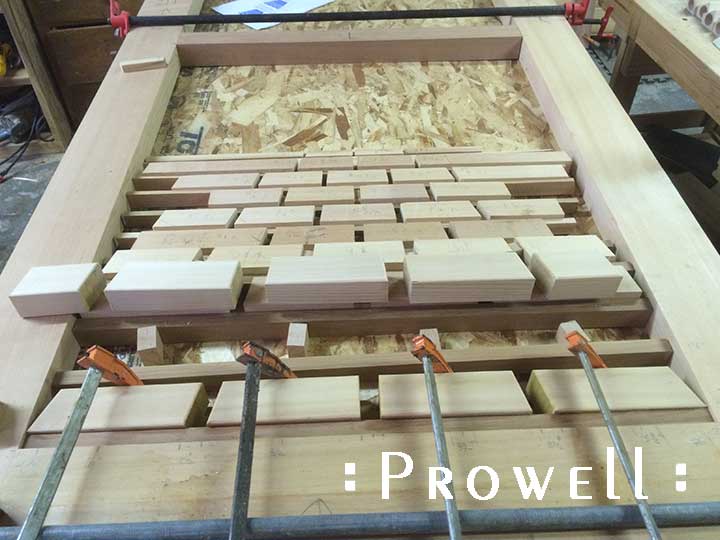

To our competitors –if they exist–it must appear laughably inefficient.  The puzzle pieces to  any Trompe L’oeil must follow the geometry of multiple vanishing points.

showing a shop progress photo of the trompe l'oeil illusion of gate #211

TROMPE L’OEIL #211–PROGRESS

As with any of the more complex gates designs, there is often only a vague image, languishing in Charles’ mind. An ephemeral end spiked with opportunities to change course at every juncture of the process. That image for the #211 was the illusion of a disappearing perspective.

shop photograph showing the three-dimensional gate #211

THREE-DIMENSIONAL GATE #211–PROGRESS

A division, introduce to demarcate the lower yellow brick road lower from whatever follows within the upper section.

progress photograph showing the yellow brick road on gate #211

VANISHING PERSPECTIVE GATE #211–PROGRESS

Flanking shoulders tapered to frame the vanishing perspective of the lower blocks such that the viewer’s eyes don’t go cattywampas.

progress photograph in the woodshop of the tromp l'oeil @211

DISAPPEARING PERSPECTIVE GATE #211–PROGRESS

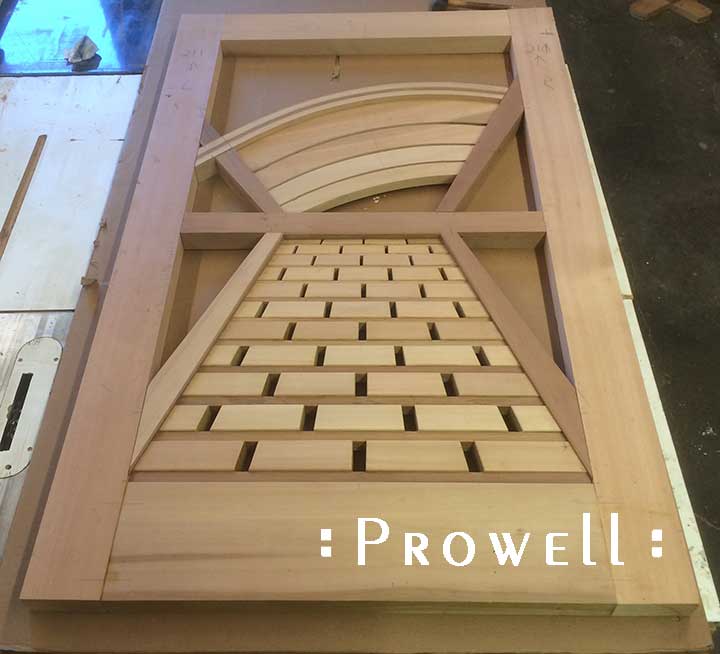

Laminating a biased arc and suddenly there is a ballast. The eye can no longer dwell interminably on the disappearing perspective of the lower blocks.

shop photograph showing the vanishing perspective gate #211 in-progress

THREE DIMENSIONAL GATE #211–PROGRESS

The upper pattern begins to establish itself apart from the lower. Begins to insist on the equal representation of the whole.

progress photograph showing the disappearing perspective of gate #211

ILLUSION GATE #211–PROGRESS

But it asks for more. Something more in a struggle to establish an identity and if we listen, listen to the Upper, it will naturally continue to ask for more, and more, until the Upper itself becomes the headliner.

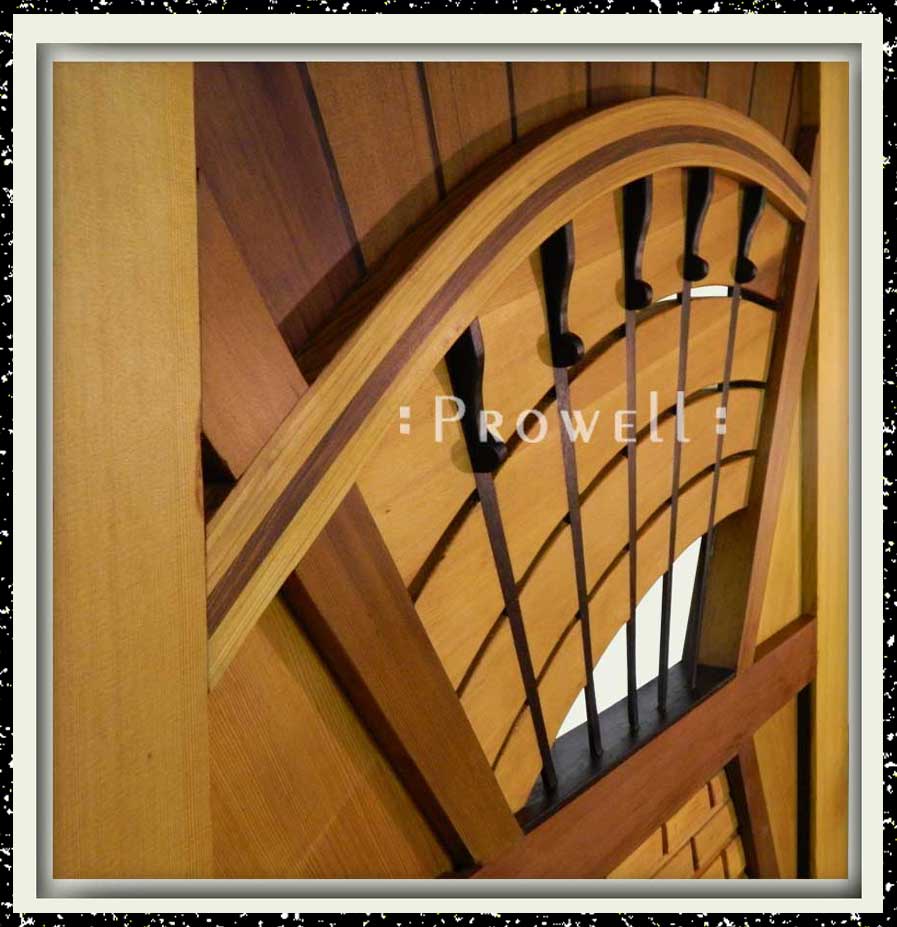

So . . . Inlaying a series of wenge perspective coordinates into the upper canopy.

shop photo showing the disappearing perspective of the upper section of #211

VANISHING PERSPECTIVE GATE #211–PROGRESS

The Upper section of our trompe l’oeil is happy . . . or happ-ier. Drawing its share of your attention in the behavioral manner anything with molecules can understand. “Look at me.”

trompe l'oeil gate progress photo of #211

TROMPE L’OEIL GATE #211–PROGRESS

Having succeeded in securing Charles’ focused attention, Upper goes a step further. A sweet-talking, condescending maneuver that leads this once pubescent Upper into it’s own maturity. Five focal points helping to draw our balancing eye up from the yellow brick road. insisting our eyes take notice.

progress shop photo showing the yellow brick road perspective of gate #211

ILLUSION GATE #211–PROGRESS

cose-up progress photo showing how to build the illusion gate #211

VANISHING PERSPECTIVE GATE #211–PROGRESS

At this juncture, the visual alliance of Upper and Lower are near equals, and any further personalities in the mix can be realized as a mistake. We have established what the common eye can digest a a glance.

shop photo showing how to build the illusion gate #211

TROMPE L’OEIL #211–PROGRESS

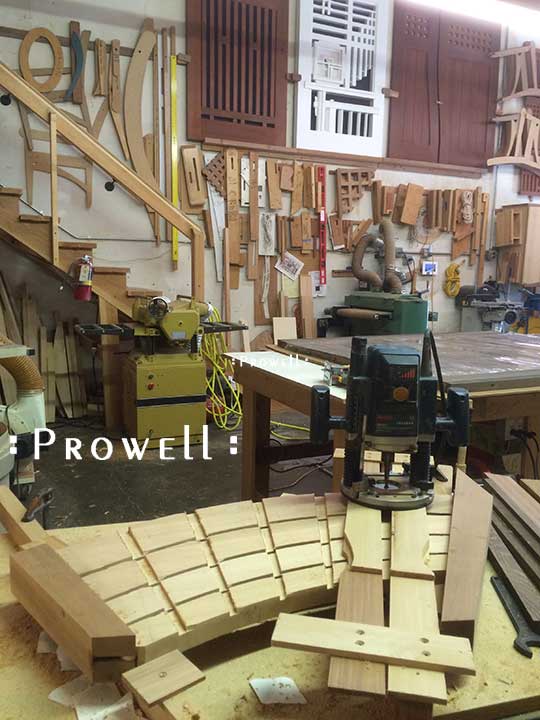

As a mimicking feature to the Upper’s wenge spokes, the Top Panel receives a similar identity. A sibling’s kinship, as each of the boards ripped to a sunburst taper .

shop progress photograph showing the sunburst taper of the gate #211

wood fence
The Designs of Prowell Woodworks are protected by Patents and Patents Pending.
