WOOD SOFT-ARCHING ARBOR #15

*For 4×4 posts. Arbor truss 1-5/8″ thick x 3-1/2″ wide (Posts not included)

PRICING Maximum 4′ width
between posts
Maximum 6′ width
between posts
Maximum 8′ width
between posts
>>To 3′ depth $4,450 $5,300 $7,125
>>To 5′ depth $5,075 $5,800 $7,925
*For 6×6 posts. Arbor truss 1-5/8″ thick x 5-1/2″ wide (Posts not included)

PRICING
>>To 3′ depth $4,725 $5,475 $7,625
>>To 5′ depth $5,350 $6,100 $8,250

* Depth and width dimensions are listed as I.D. (Inside Dimensions between your posts)
* Custom built to your site-provided measurements.
* Designed to mount onto your site posts, site columns, or site beams..

* To translate this 4-post arbor into a 2-post, view the Prowell Corbel options.

#15

CUSTOM WOOD ARBOR #15

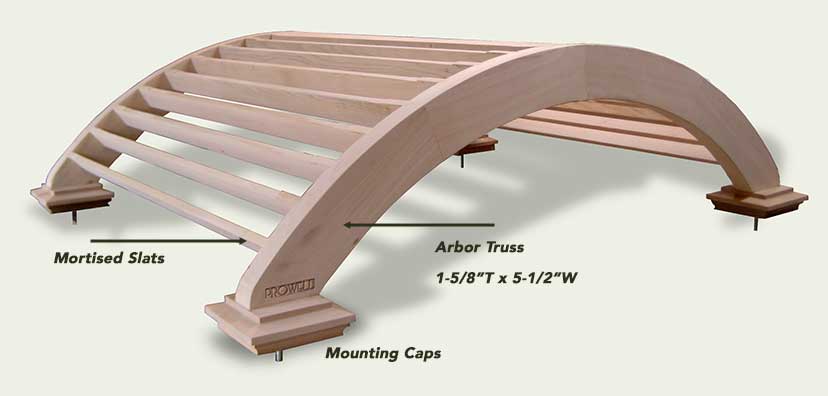

The Four-Post Garden Arbor #15 specifications:

  • Soft radius, with mortised slats.
  • Arched trusses at 1-5/8″ thickness x 3-1/2″ or 5-1/2″ width.
  • Optional Keystone
  • Built to your specified radius and width dimensions.
  • Shipped fully assembled.
  • When accompanying a gate that has an arched top rail, the radius of the arbor and the gate are commonly matched.

four post arching wood arbor #15

#15-5

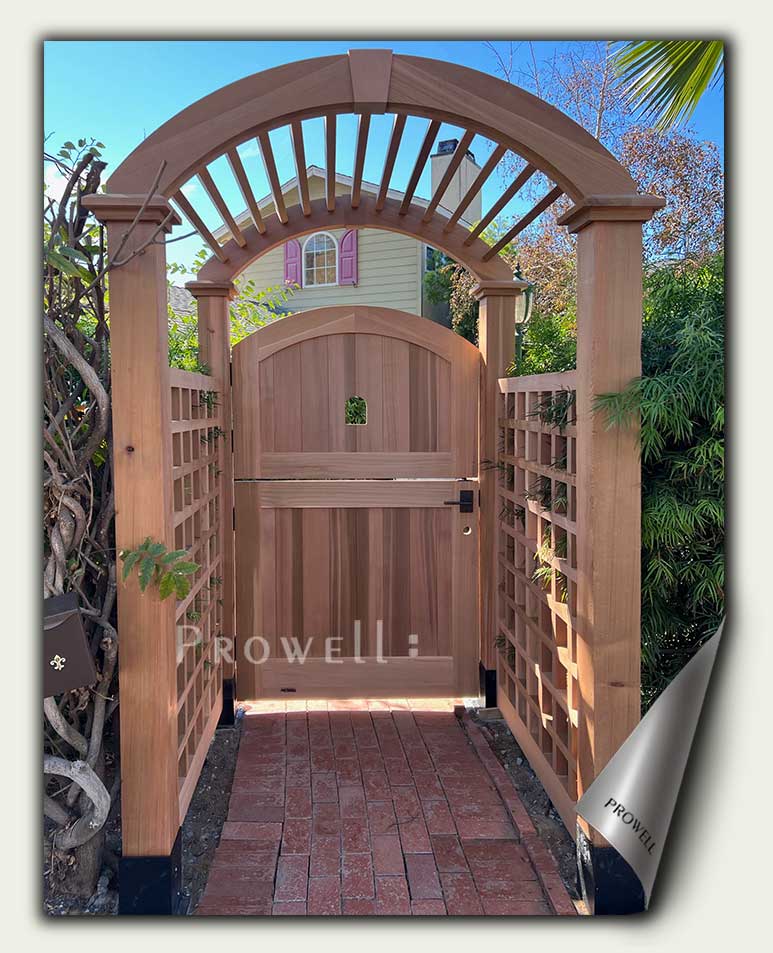

CUSTOM WOOD ARBOR #15-5

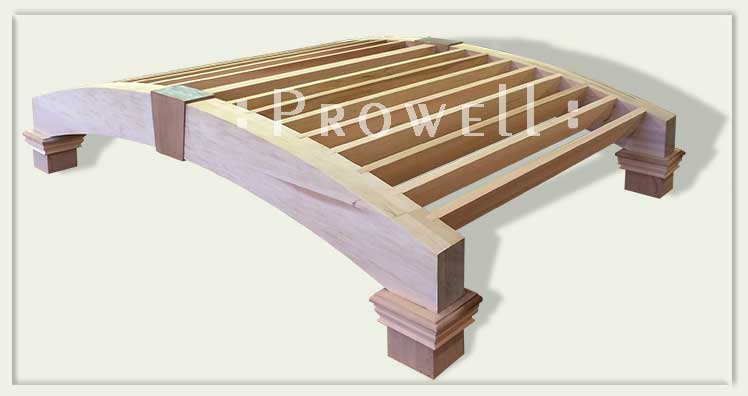

Garden Gate Arbor #15-5 shows 5-1/2″ wide trusses with a soft arch to match that of the accompanying gate style #20. The full insert keystone. Trusses at 3″ thickness instead the standard 1-5/8″.
*Add $375

garden gate wood arbor #15-5

CUSTOM WOOD GARDEN ARBOR #15-5

Orinda, CA

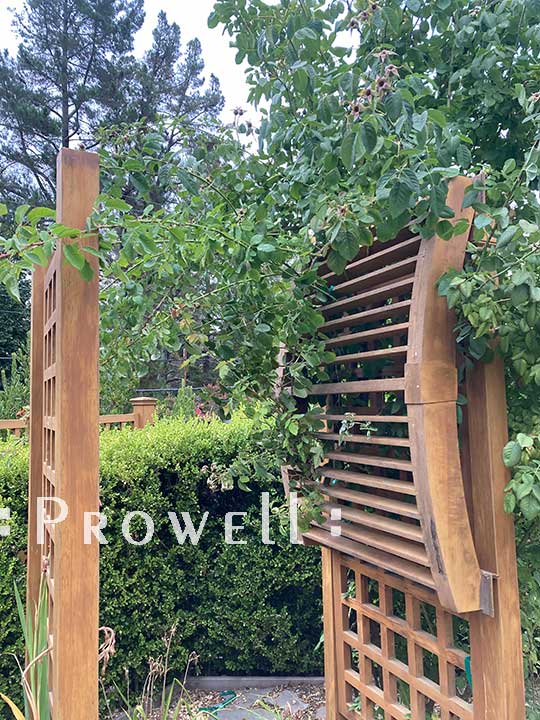

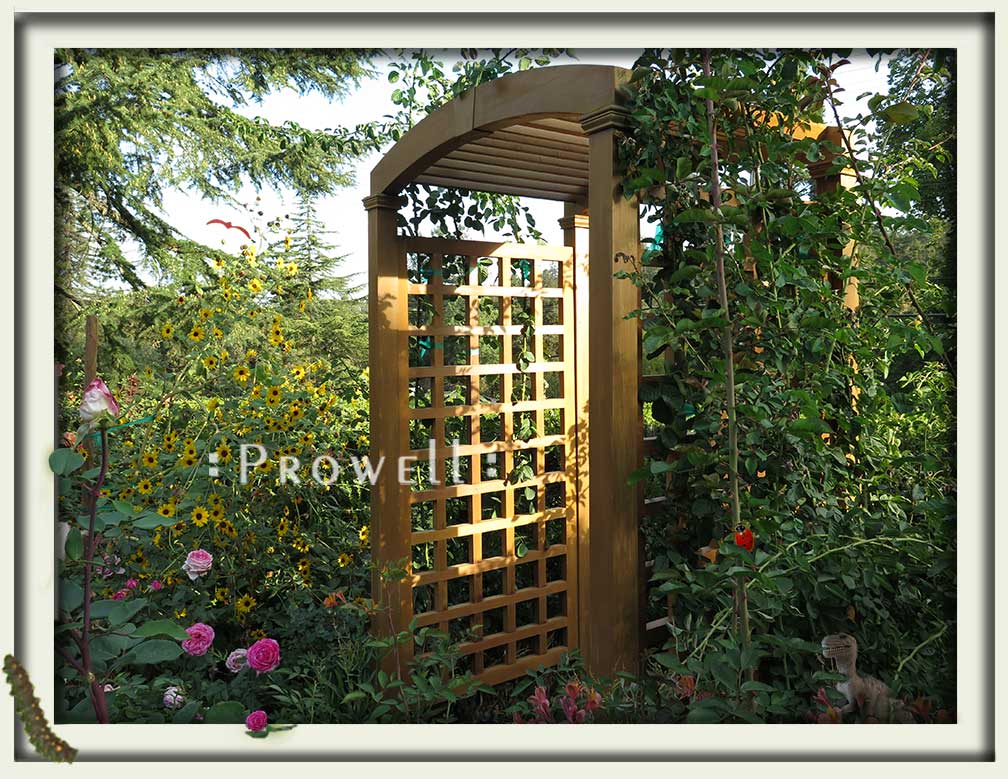

Garden Gate Arbor #15-5 as a free-standing assembly. Shown with optional Foyer Panels Style #21, with the open grids acting the perfect host for climbing vines. Base Cost +18%

custom wood arbor #15-5 in Orinda, ca. prowell

CUSTOM WOOD GARDEN ARBOR #15-5

Orinda, CA

custom wood arched arbor #15-5g. prowell

CUSTOM WOOD GARDEN ARBOR #15-5

Orinda, CA

A good look at the flush-joined grids of the optional Foyer Panel.

Rodney and his new sweetheart Miss Mullens have taken a stroll in the gardens when he learns of her hidden past. The grids. A grid phobia, and he wonders What Else? What else is she hiding and why can’t he find a normal girl. Just a normal sweetheart. Is that asking so much?

wood garden arbors in San Francisco bay area

CUSTOM WOOD GARDEN ARBOR #15-5

Orinda, CA

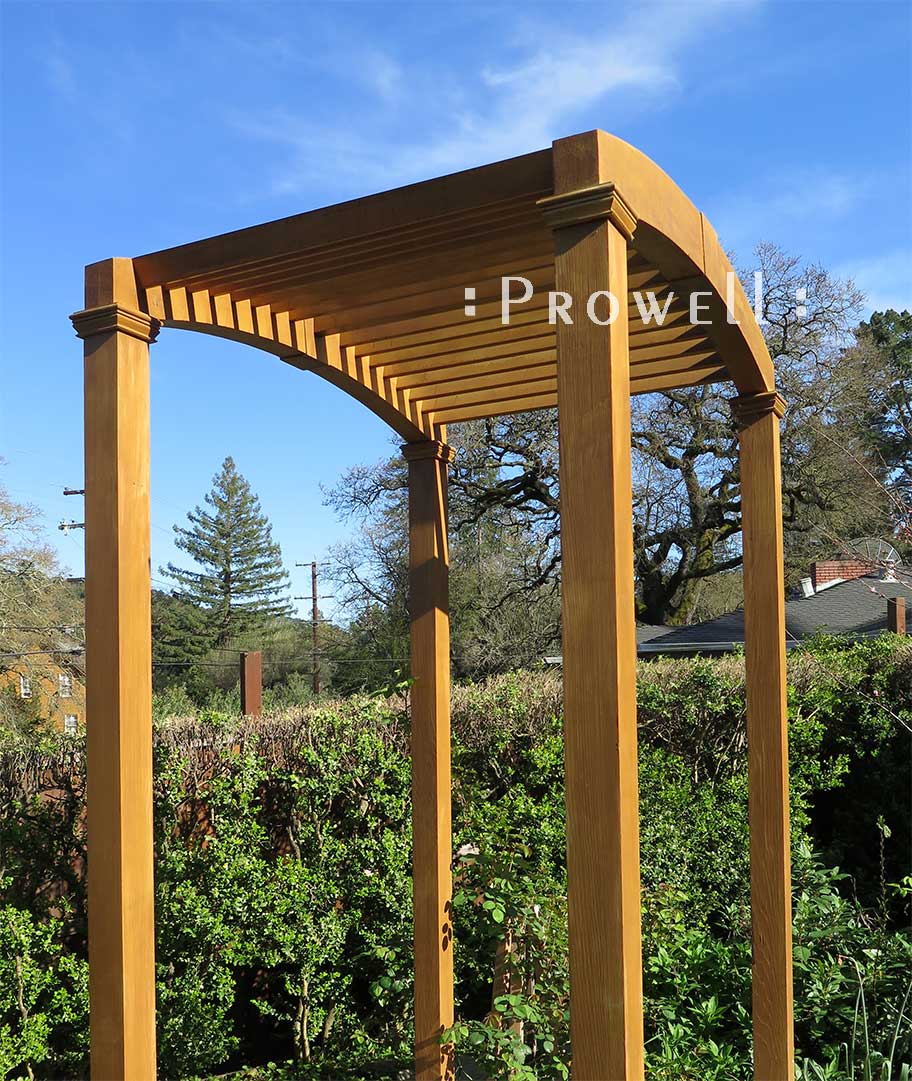

Garden Gate Arbor #15-5 as a free-standing assembly prior to installation of the Foyer Panels and the eventual maturing foliage.

#15-4

CUSTOM WOOD ARBOR #15-4

Orinda, CA

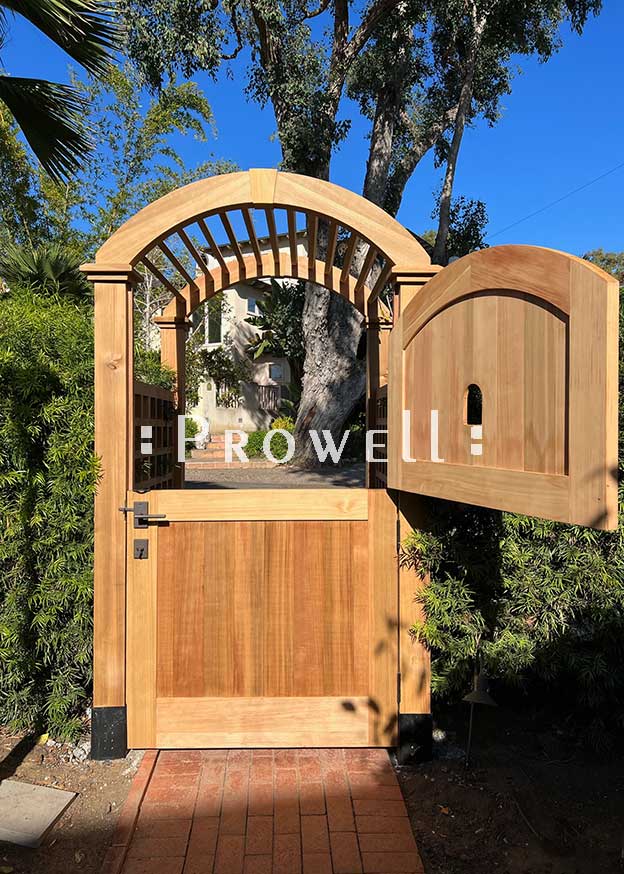

The Garden Arbor #15-4 shown with Garden Gate style #20 as a 2-post assembly. Showing Prowell’s Arched Corbel #1

To view the corbel styles and pricing, click here

custom wood arching arbor trellis in Orinda, CA

#15-2

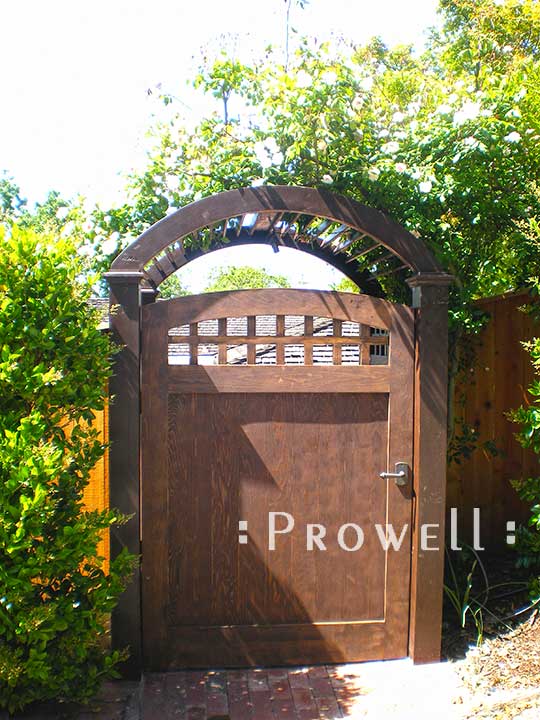

CUSTOM WOOD ARBOR #15-2

Orinda, CA

The Garden Arbor #15-2 shown with Garden Gate style #20, without a keystone.

Here we see the radius of the gate arch considerably softer than that of the arbor, primarily because the gate width is 60″. To match the gate radius to that of the arbor would have raised the gate arch, and consequently the overall height of the arbor. To match the arbor radius to the softer gate radius would have altered the aesthetics of the arbor considerably. It’s never a cut-and-dry option.

*To critique our own work, or rather the height of the installer’s post, the overall approach would have been improved had the arbor been separated from the gate’s height by another 8 or so inches.

wood garden arbors in Orinda, California

CUSTOM WOOD GARDEN ARBOR #15-2

Orinda, CA

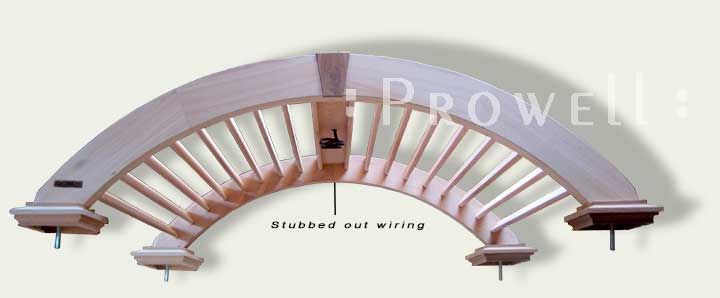

Garden Arbor #15-2 is configured to allow a lighting fixture mounted to the underside of the arbor. To have your arbor wired for a lighting fixture with fully concealed wiring, as shown below: add $275. The wiring is embedded and will stub out coiled from the mounting cap with sufficient length to run the length of the site post and junction at grade to the source.

#15

CUSTOM WOOD ARBOR #15

Mill Valley, CA

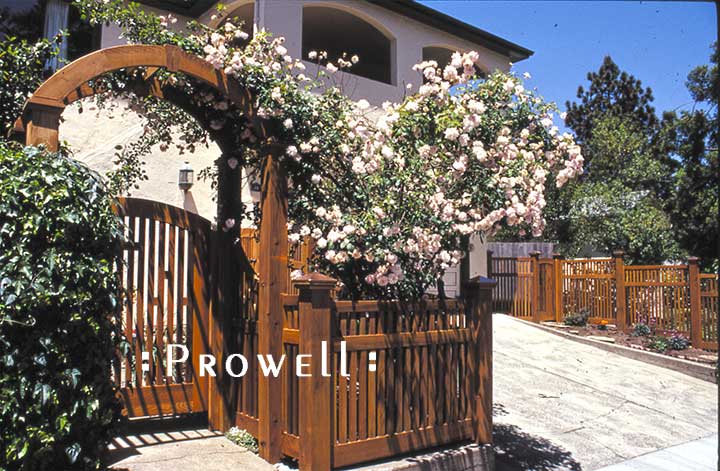

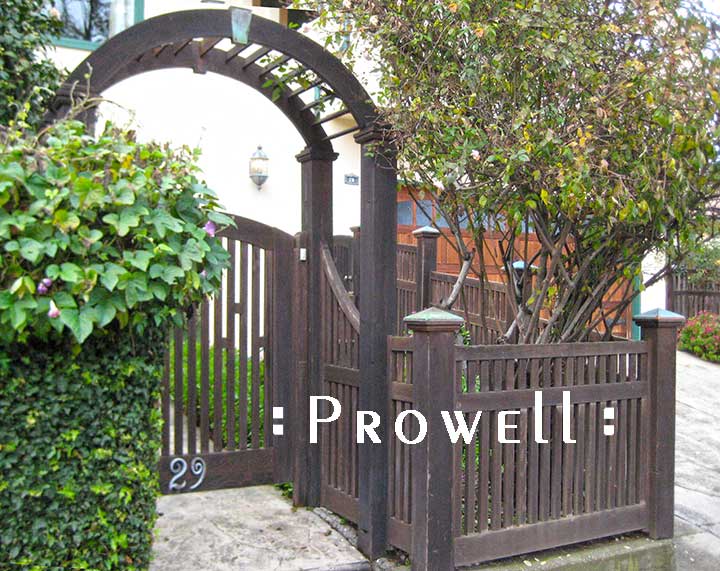

An early #15 Gate Arbor as an extension to existing 6×6 posts. The side, or ‘Foyer’ panels, show arching top rails. Shown with Garden Gate #57, and Fence Style #2.

Fout-Post wood gate arbor #15 in Marin County, CA

CUSTOM WOOD GARDEN ARBOR #15

Mill Valley, CA

The same Four-Post Garden Arbor photographed 15 years later. The homeowner originally applied a single application of a Cabot Heartwood oil, which gradually grayed out to the weathered look below. Finishing the Prowell products does not prolong their life or preserve their structural integrity.

Your decision to apply a finish should be based upon your visual preference only. To avoid finishes that are less than optimal, please follow the guidelines and suggested products at Pre-Finish Options.

garden arbors with Arch in Marin county, CA

#15-3

WOOD ARBOR #15-3

Sausalito, CA

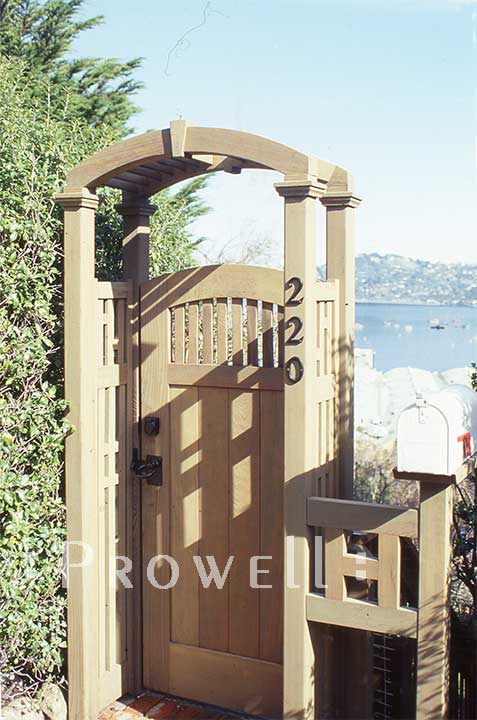

The Original Garden Gate Arbor #15, from 1994. Overlooking the San Francisco Bay. Again, with an early keystone design that has since been modified. Both the gate and arbor with the same arching radius.

Wood Garden Gate Arbor with arch in Sausalito, CA

IN-PROGRESS

WOOD GARDEN ARBOR–PROGRESS

Sausalito, CA

A good look at the full insert Arbor Keystone.

wood arching arbors with keystones

WOOD GARDEN ARBOR–PROGRESS

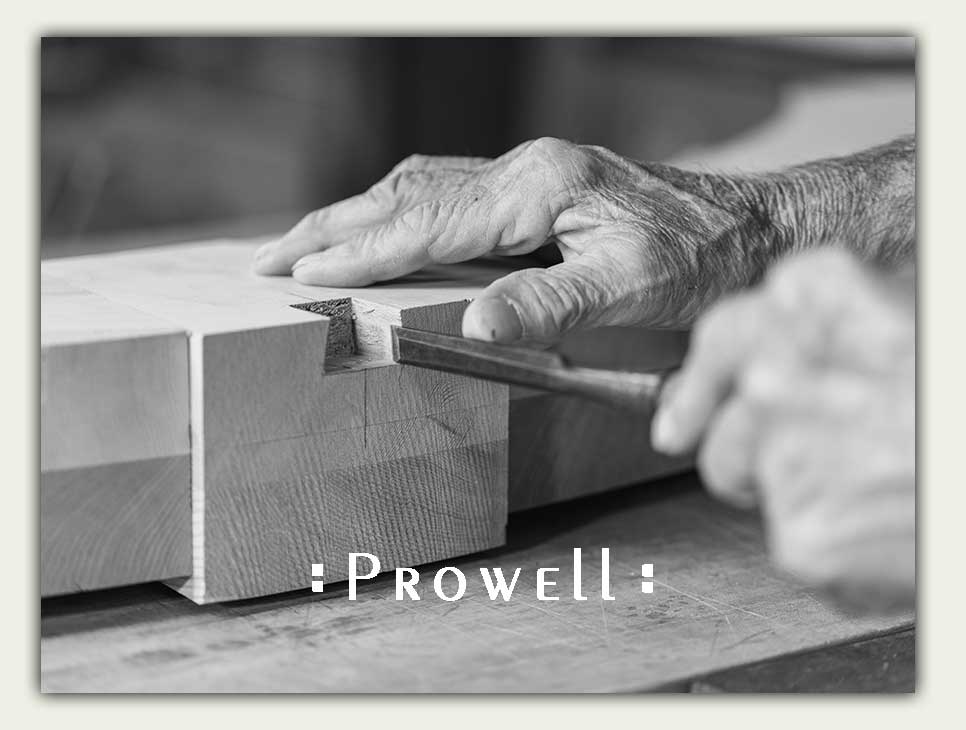

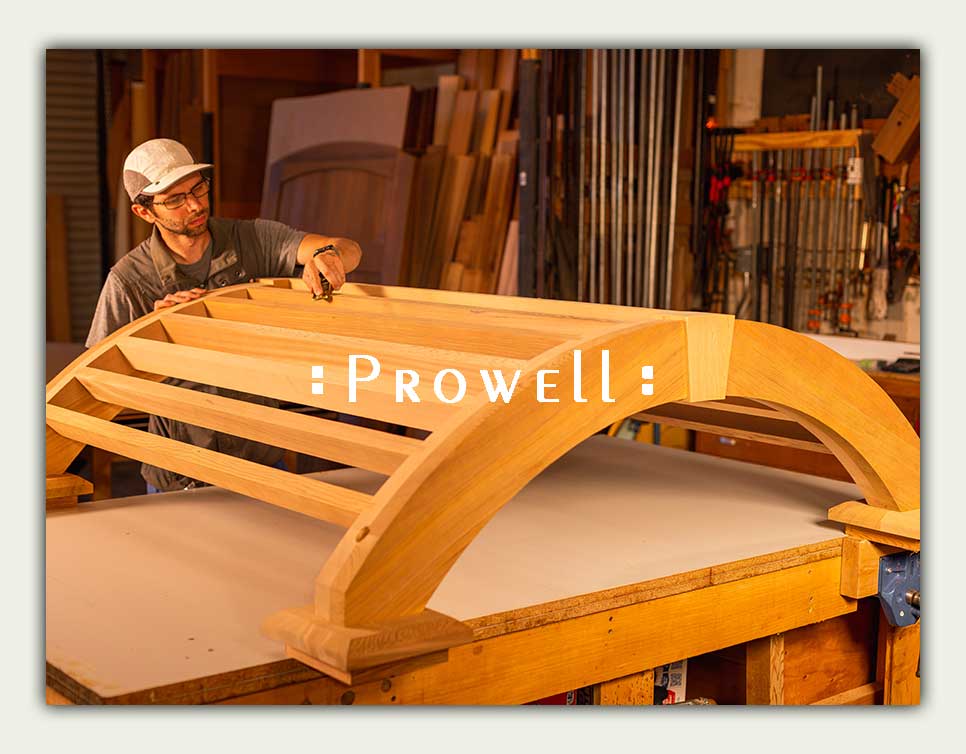

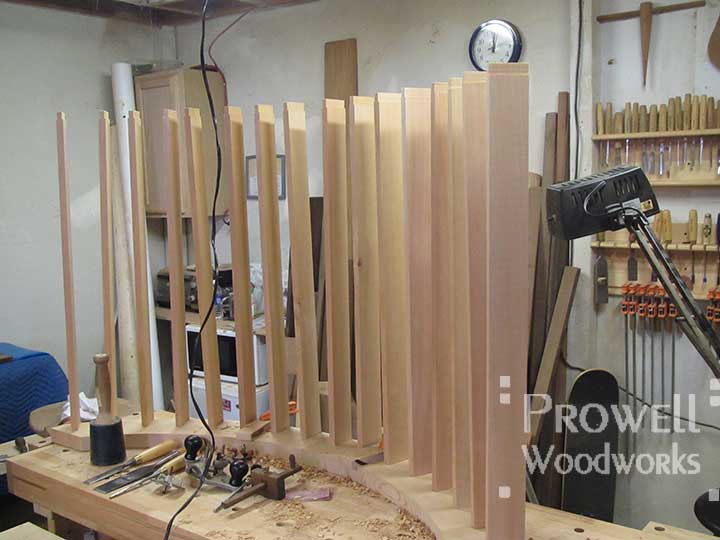

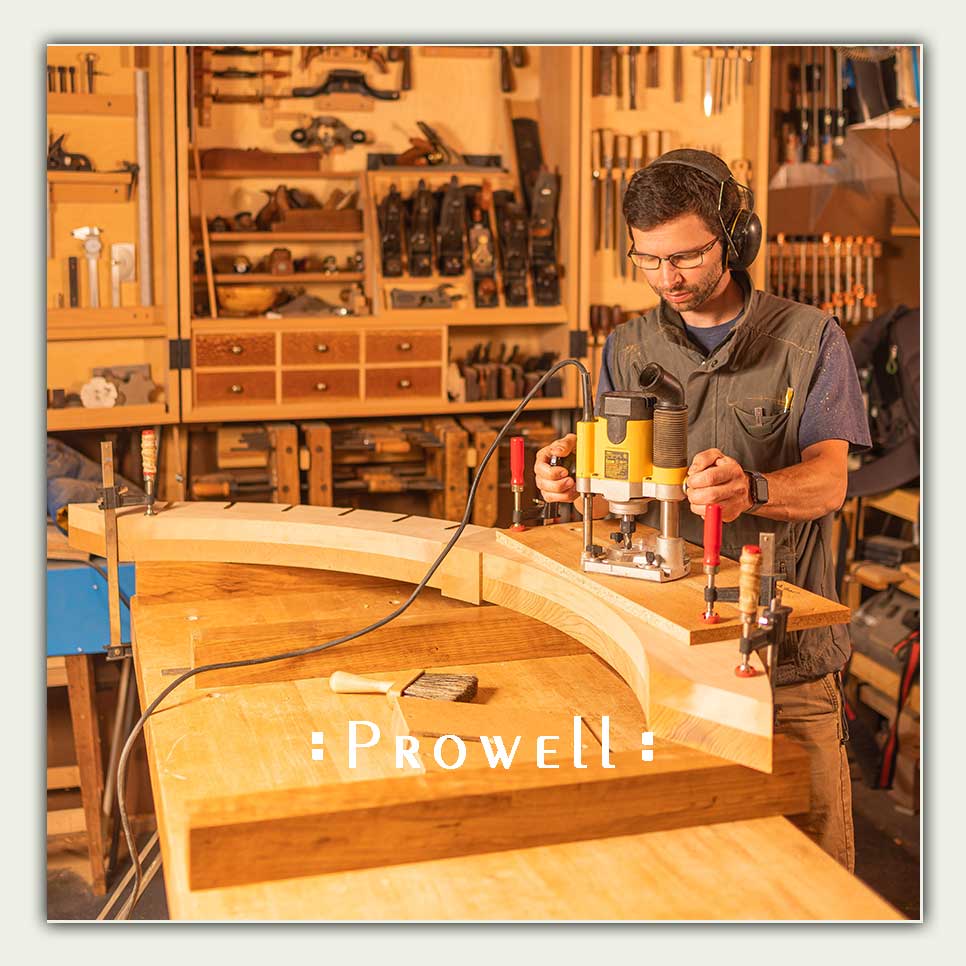

Set up on Ben Prowell’s workbench, where the mortises were cut by hand with a lovely old Stanley #71 Router Plane.

How to build a wood arbor with arches, prowell

WOOD GARDEN ARBOR–PROGRESS

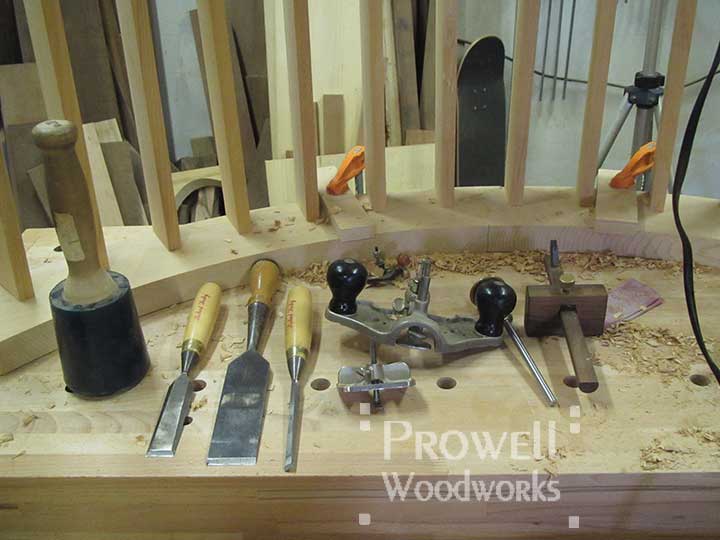

The Stanley Router Plane. A lost art, single-handedly being revived.

Arch wood gate arbor, by prowell

WOOD GARDEN ARBOR–PROGRESS

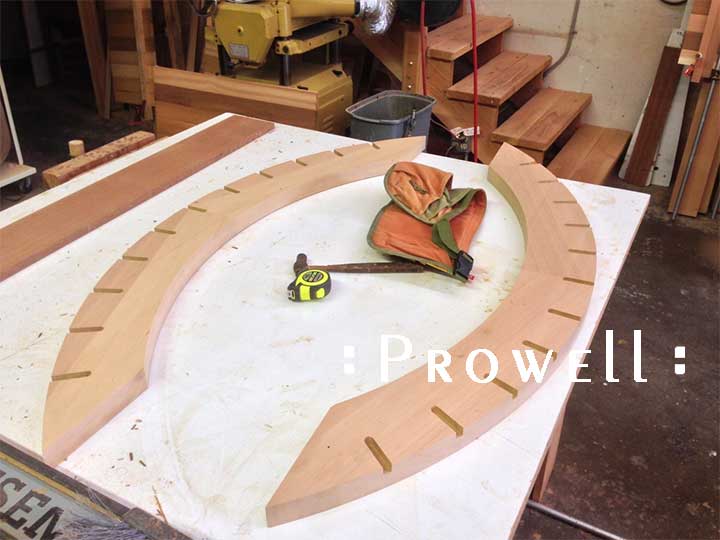

The mirrored trusses mortised with their flywheel pattern.

custom garden arbor trellis woodworks, prowell

WOOD GARDEN ARBOR–PROGRESS

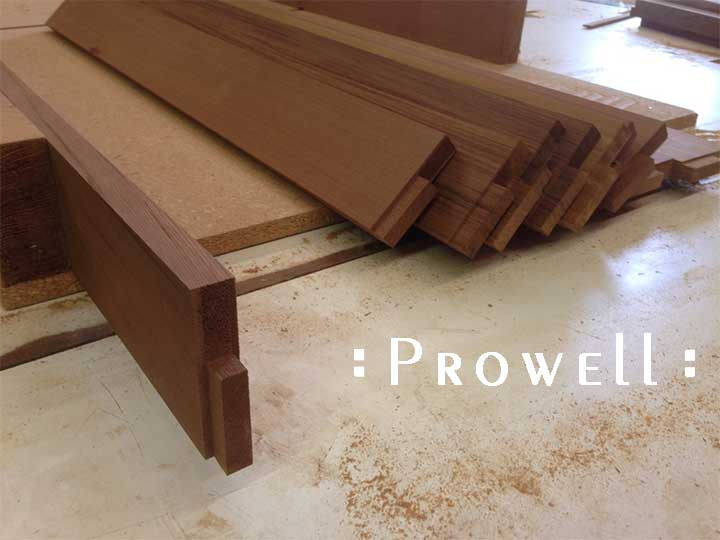

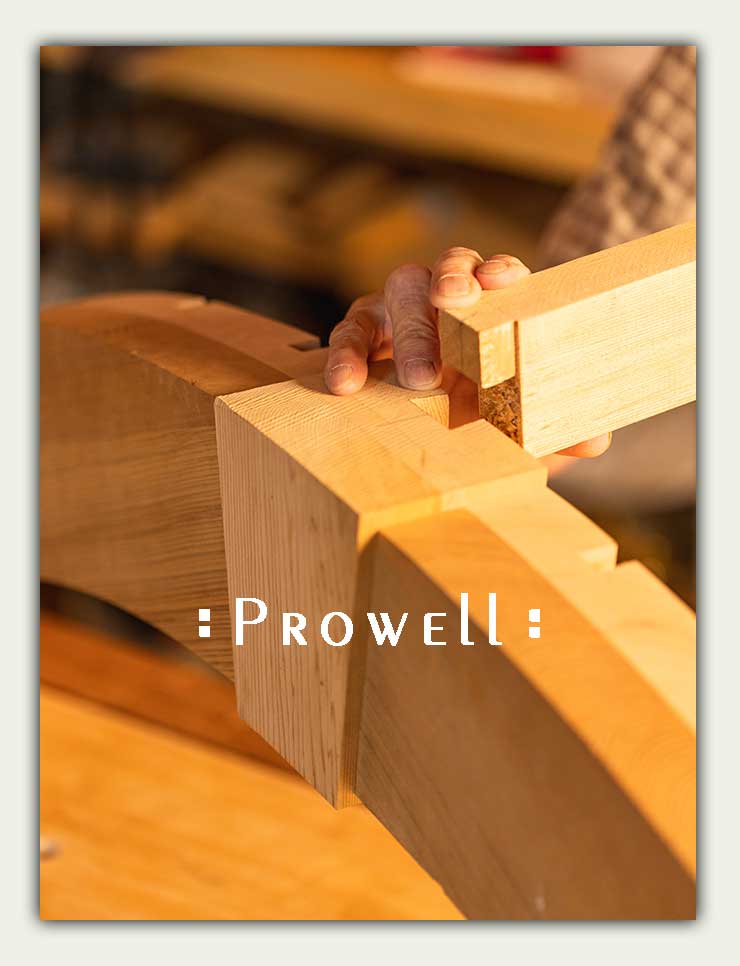

The cross slats are given a stepped-haunch tenon.

joining wood arbor pieces, prowell

WOOD GARDEN ARBOR–PROGRESS

Ben fashioning the inlay keystone with the Stanley Router Plane.

arbor gate trellis in wood, prowell

PROBLEMS

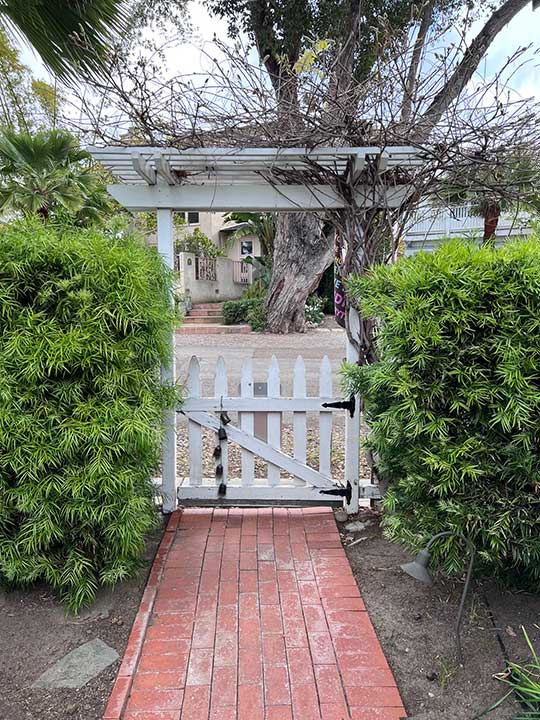

This is what happens if you do not insist your installer read the install guides. Here, the mounting rods and screws were ignored, and the arbor was simply seated onto the posts and that was that. But . . . in time the vines and climbers will exert enough persuasive torque to actually lift the entire arbor off the posts.

problems with installing wood arbors. prowell

READING MATERIAL

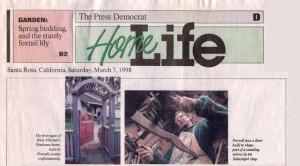

The Press Democrat —1998
Click Here for the hi-resolution PDF downloads
Click Here for the gallery of articles and features

Taunton Press’ Home Makeover 2007
Click Here for hi-resolution PDF download
Click Here for the gallery of articles and features
