CUSTOM WOOD ARCHING ARBOR #8

This Wood Arbor #9 is: Base Price + 16%
To Base Price Tables

With Mounting Caps

#8

Base Price +16%
   Price Table #1
        (5-½” posts only)

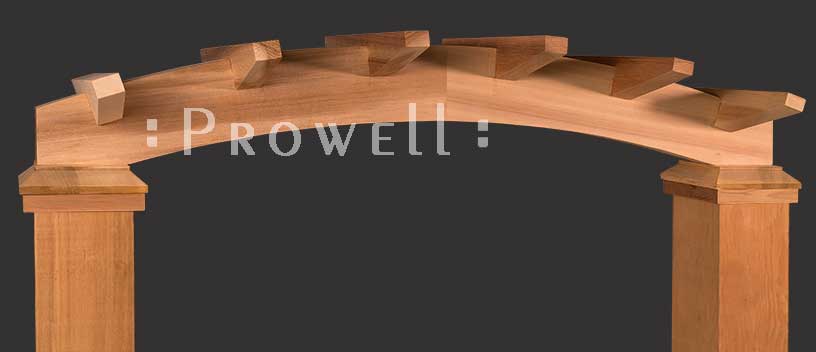

CUSTOM WOOD ARBOR #8

Wood Arbor #8 features a series of interlocked crossbars to accommodate a climbing rose.

  • Ships/delivers with caps in place for mounting to any size posts.
  • Posts not included

climbing rose wood arbor by Prowell

CUSTOM WOOD GARDEN ARBOR #8

CUSTOM WOOD GARDEN ARBOR #8

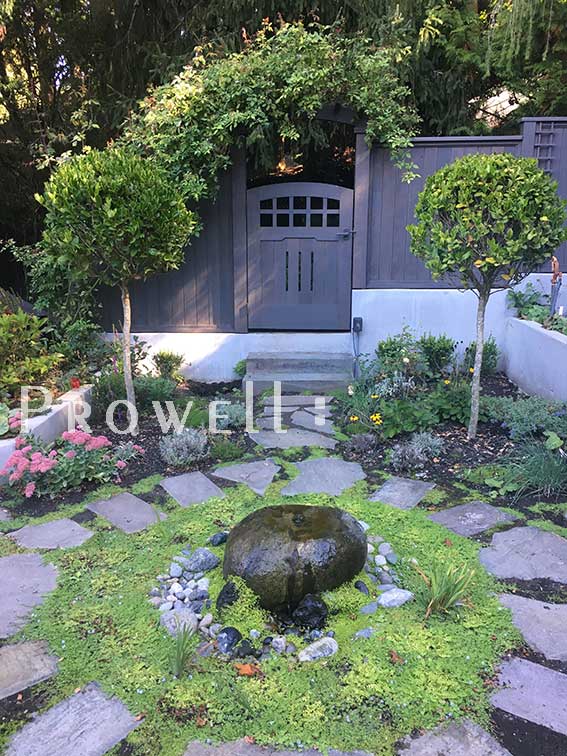

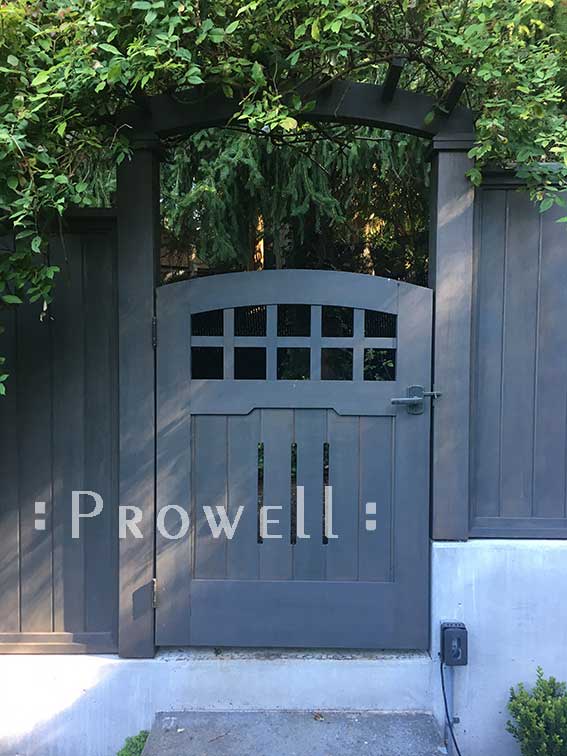

Bainbridge Island, WA

Arbor #8 shown with gate style #20.

wood gate arbor #8 in Washington state. prowell

CUSTOM WOOD GARDEN ARBOR #8

Bainbridge Island, WA

Arbor #8 was designed to support mature climbing vines.

wood arbors for climbing vines. prowell.

#8-2

Base Price +16%
   Price Table #1
       (5-½” posts only)

CUSTOM WOOD ARBOR #8-2

Garden Arbor #8-2 features the slight extension of the arching truss beyond the mounting caps.

Custom wood garden arbor 8-2.

CUSTOM WOOD GARDEN ARBOR #8-2

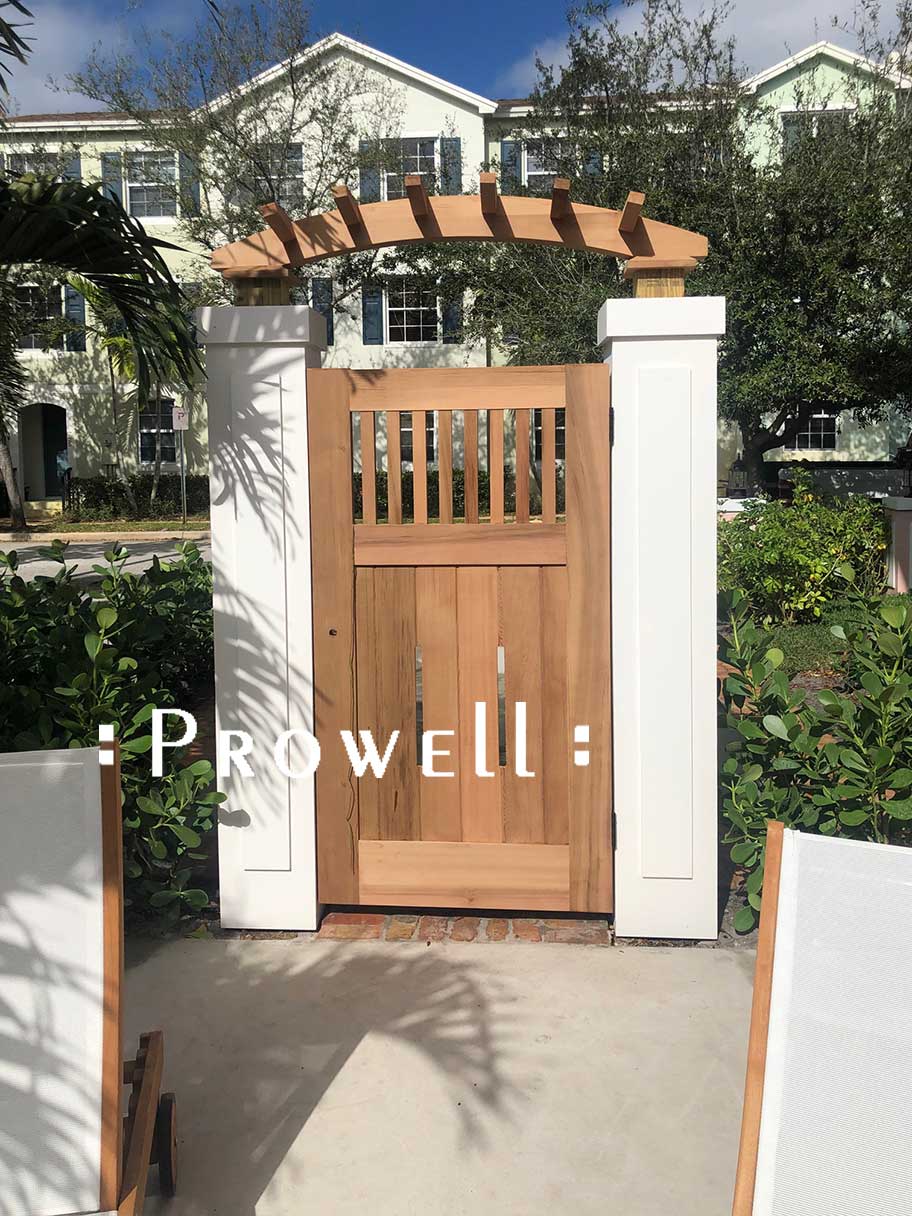

West Palm Beach, Florida

Garden Arbor #8-2 shown with the Garden Gate style #5. The gate itself was purchased off the Prowell Basement Sale page for less than a third of the retail price. A smart shopper who regularly visits this popular page.

To the Basement Sale Page

custom wood garden arbor #8-2 in West Palm Beac h, Florida. prowell

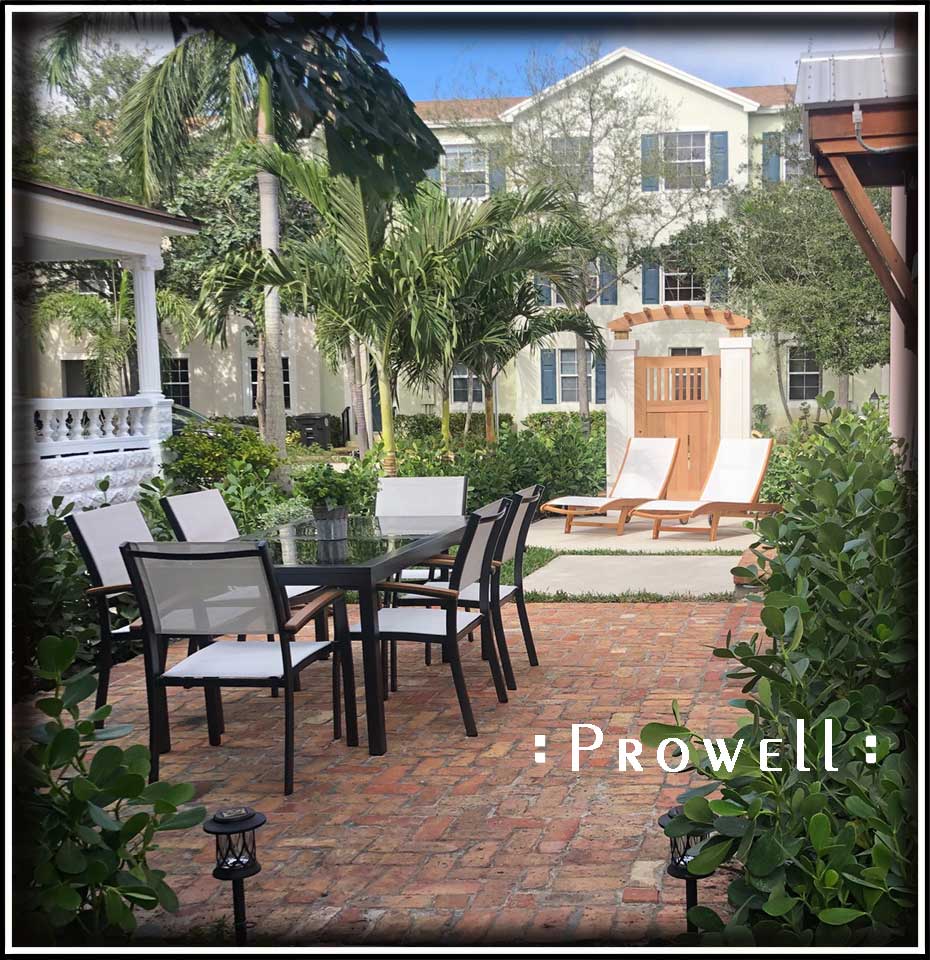

CUSTOM WOOD GARDEN ARBOR #8-2

West Palm Beach, Florida

CUSTOM WOOD GARDEN ARBOR #8-2

West Palm Beach, Florida

The commission for Arbor #8-2 and Gate #5 began with a watercolor sketch sent to us from the homeowner. Mesmerized, Charles asked permission to post it.

watercolor painting of arbor #8.

#8-4

Base Price + 24%
  Price Table #1
(5-½” posts only)

CUSTOM WOOD ARBOR #8-4

Arbor #8-4 features a few variations:

  • The vine extensions mortised to the truss are only 2-1/4″ high x 2″ deep x 1-5/8″ thick. Provided with a small fluted depression to help seat and train the vines.
  • The ends of the arbor flair out beyond the short post extensions, as with arbor #8-2.
  • The short post extensions are 3-3/4″ high
  • The mounting caps have eliminated the aprons and top tier overhang. The bottom of the caps are ploughed out 3/4″ deep to accept the grade posts.
  • The mounting bolt extends through to the post for instant installation, replacing the earlier, more cumbersome system of threaded rod.

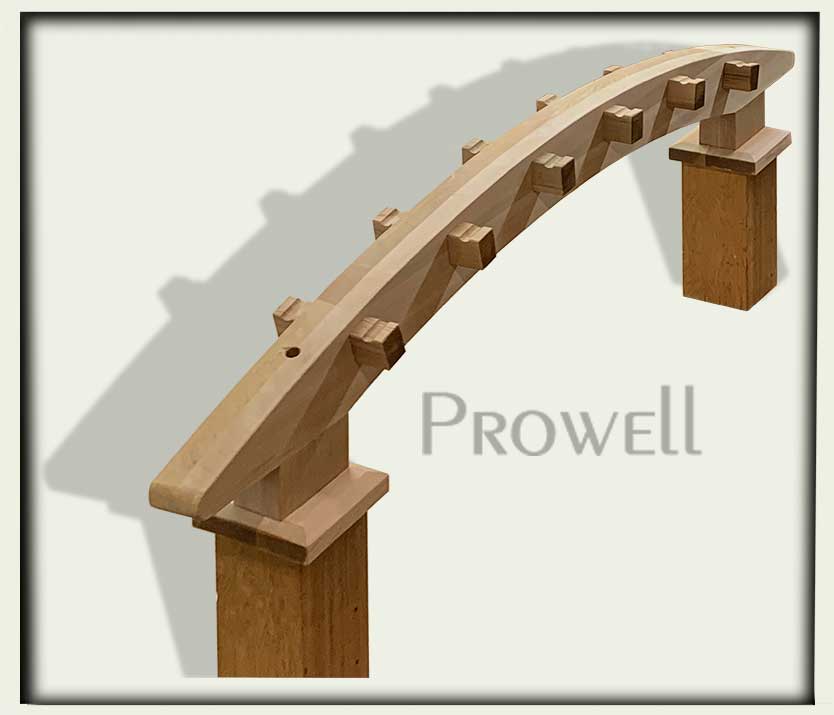

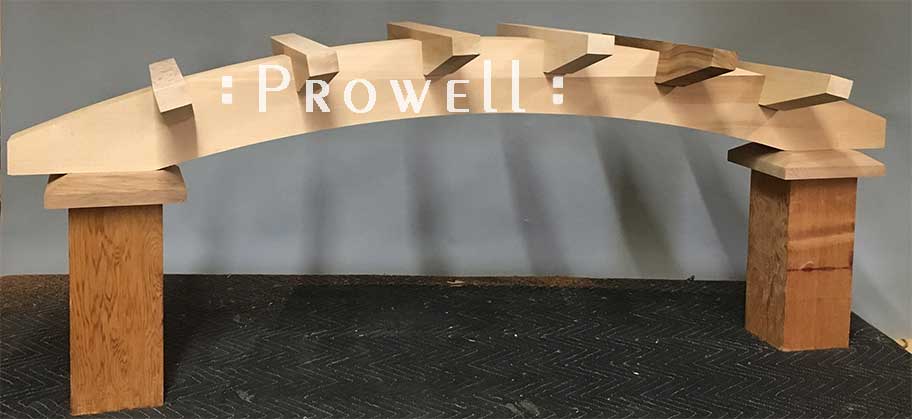

CUSTOM WOOD GARDEN ARBOR #8-4

The grade posts shown are not included. These are simply props we use in the shop to photograph the arbors.

custom wood garden arbor #8-4. prowell

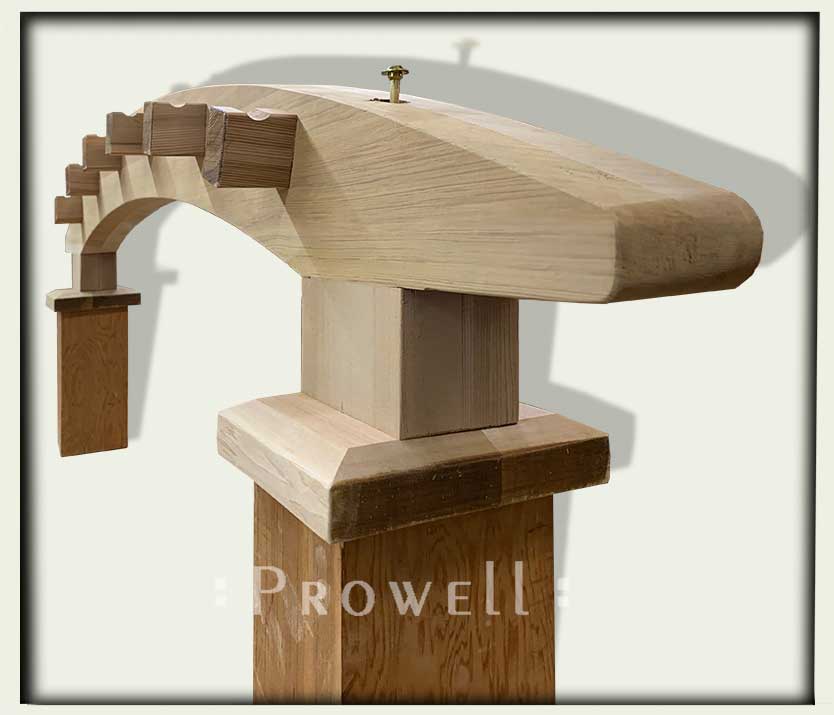

CUSTOM WOOD GARDEN ARBOR #8-4

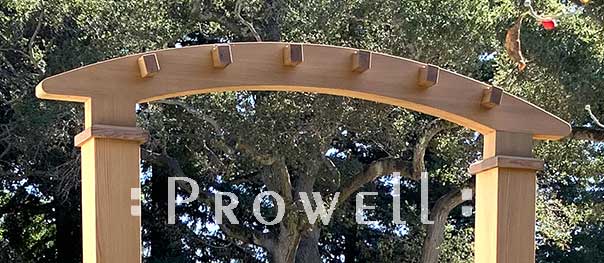

The mounting caps have been revised toward a more minimal footprint.

custom wood garden arbor #8-4c in Menlo Park, CA

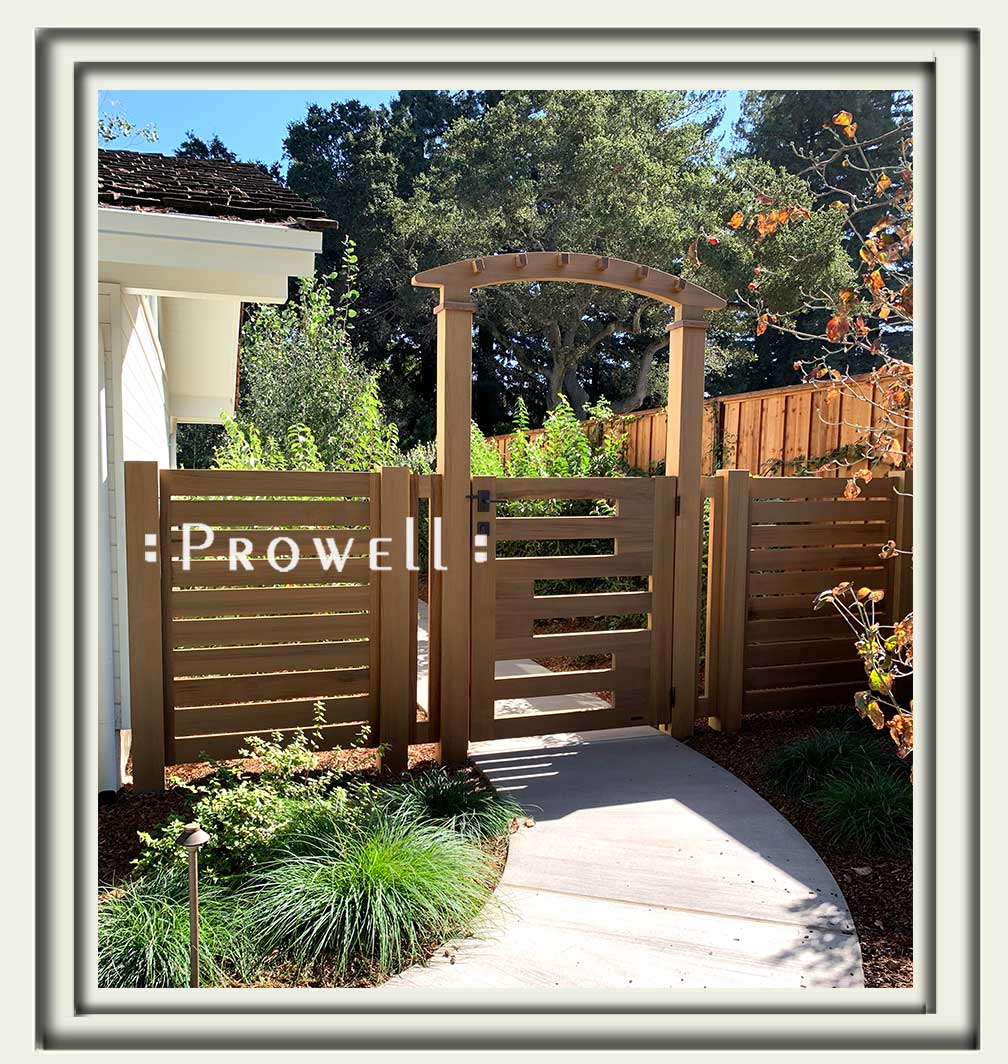

CUSTOM WOOD GARDEN ARBOR #8-4

Shown with Garden Gate #15, and fence Style #17.
Hopefully we’ll see photos in a year or two, once the climbing vines have taken hold.

#8-3

Base Price + 16%
  Price Table #1
Plus Keystone: +$375
(5-½” posts only)

CUSTOM WOOD ARBOR #8-3

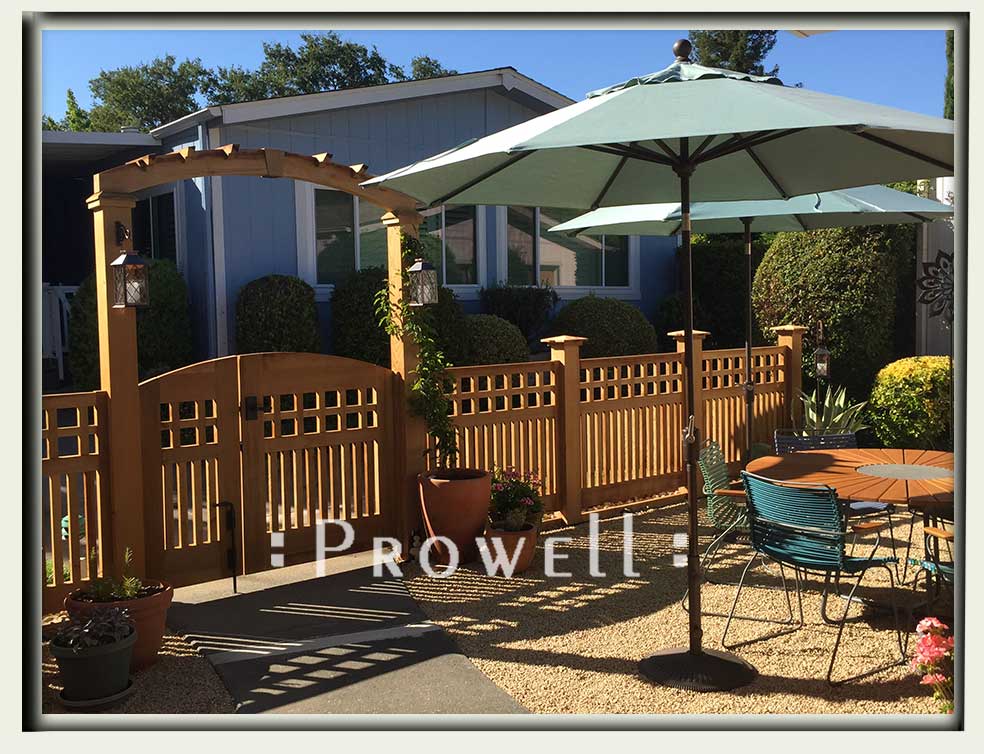

St Helena, CA (Napa County)

Garden Arbor #8-3 features a slightly different profile on the cross-slats and a keystone. With Double Off-Set Garden Gates Style #53 and Fence Style #22.
Prowell Post Caps Style #1

custom wood garden arbor #8-3. prowell

CUSTOM WOOD GARDEN ARBOR #8-3

St Helena, CA (Napa County)

From within the property.

custom wood arbor 8-3 in Napa City, ca

CUSTOM WOOD GARDEN ARBOR #8-3

CUSTOM WOOD GARDEN ARBOR #8-3

St Helena, CA (Napa County)

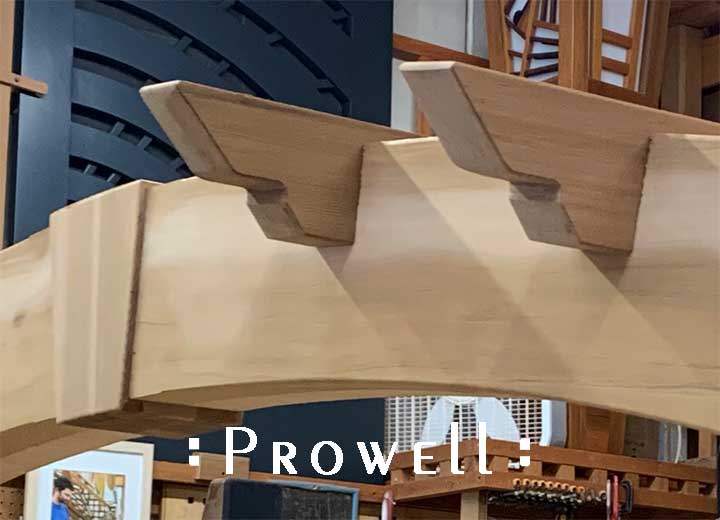

The cross-bracing is shorter and features a little different profile.
The fully mortised keystones are + $375

CUSTOM WOOD GARDEN ARBOR #8-3

St Helena, CA (Napa County)

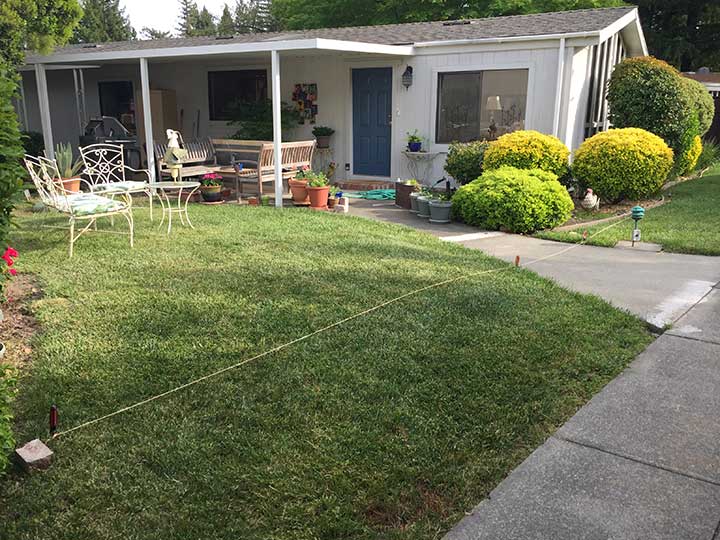

Because the transition is more than interesting, a look at a ‘before’ photo.

before photo of arbor #8-3 in Napa County, CA. prowell

PROGRESS

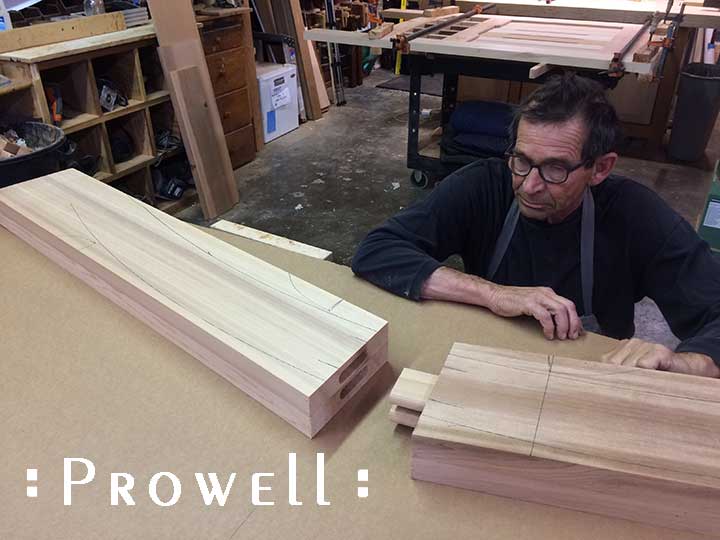

WOOD GARDEN ARBOR #8-4–PROGRESS

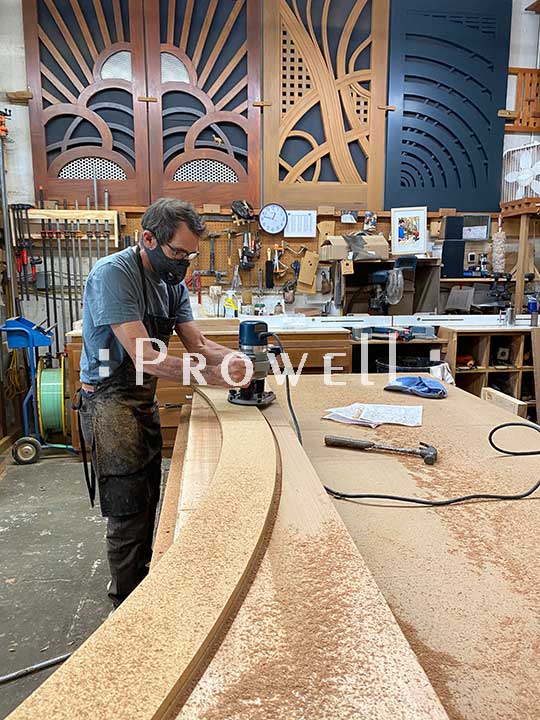

Routing to a template with a bearing guide. There are three templates, with varying radius points as per arbor lengths.

building prowell's arbor #8

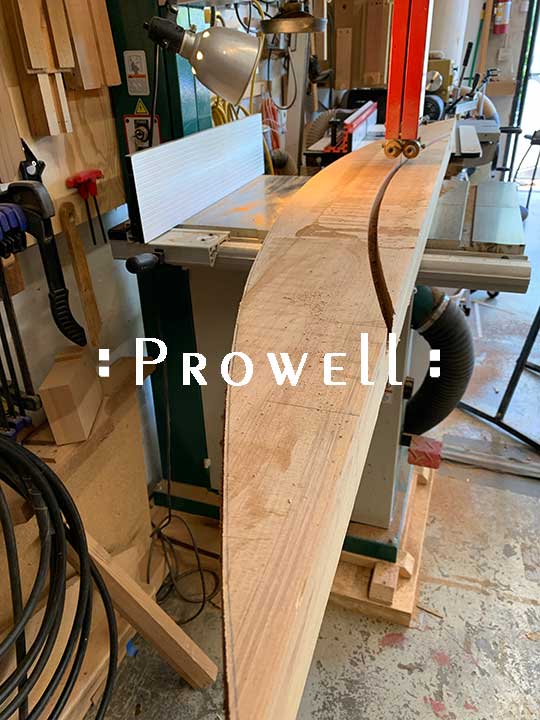

Because the router only carries to 2″ depth, the remaining stock is cut on the band saw and then returned to the router. A spiral up-cut carbide flush bit completed the profile.

building prowell's arbor #8a

The short extenion posts are mortised and clamped in place while the small vine extension block mortised and the tenons set in place.

building prowell's arbor #8dd

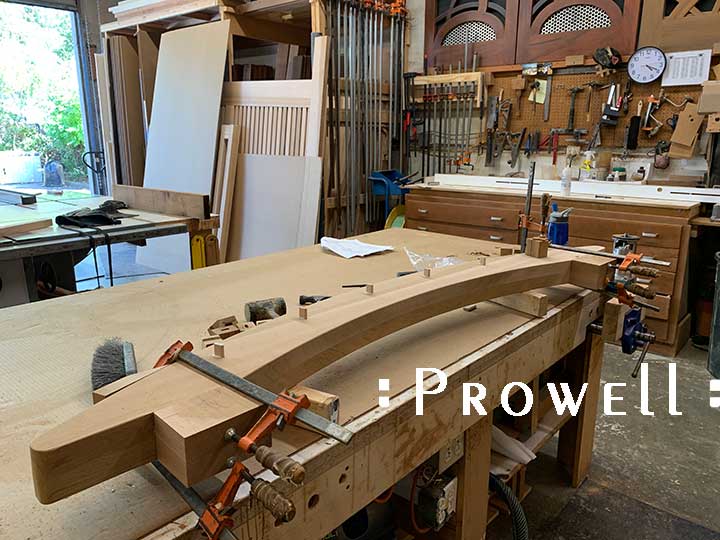

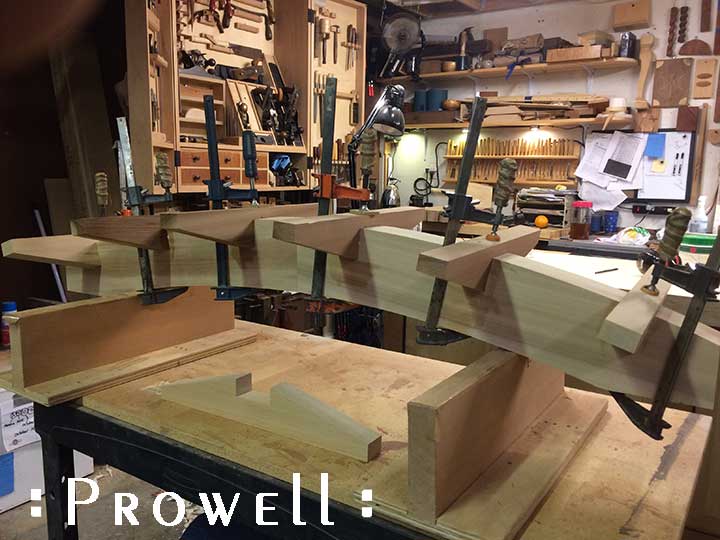

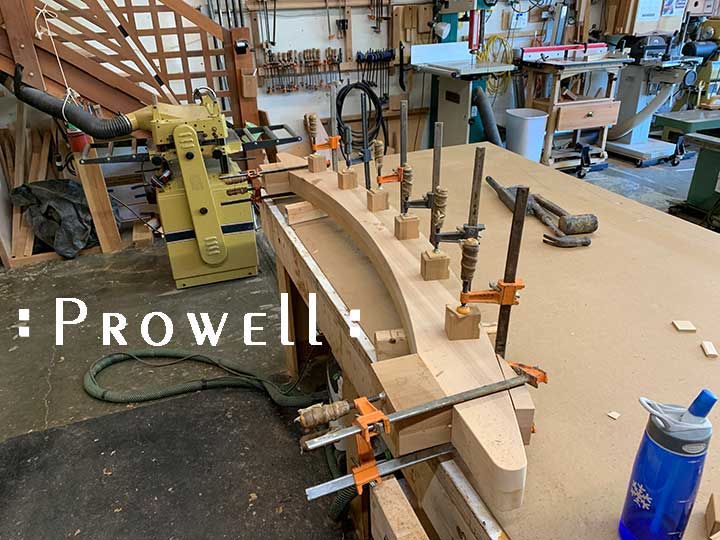

The vine extension blocks are clamped in place.

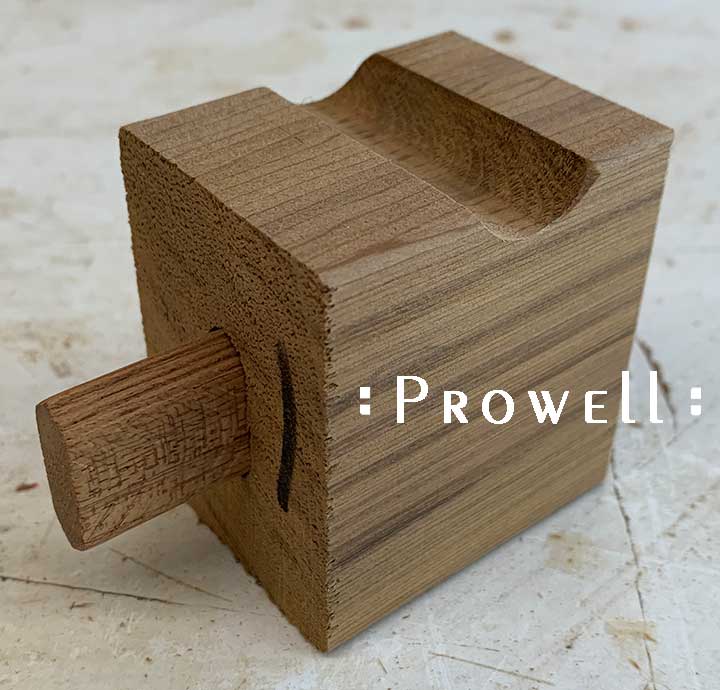

The vine extension block. Both end-grain faces are ultimately sealed with emulsified wax.

building prowell's arbor #8cc

WOOD GARDEN ARBOR #8-3–PROGRESS

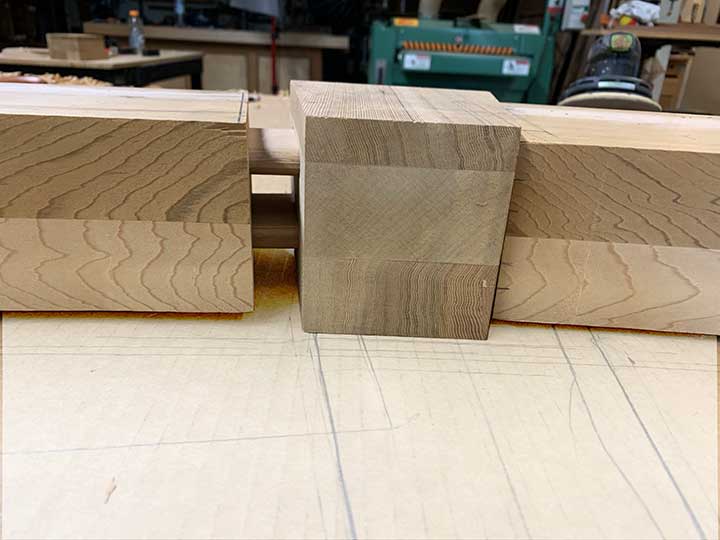

A single segmented joint for Arbor #8 with keystones.

WOOD GARDEN ARBOR #8-3–PROGRESS

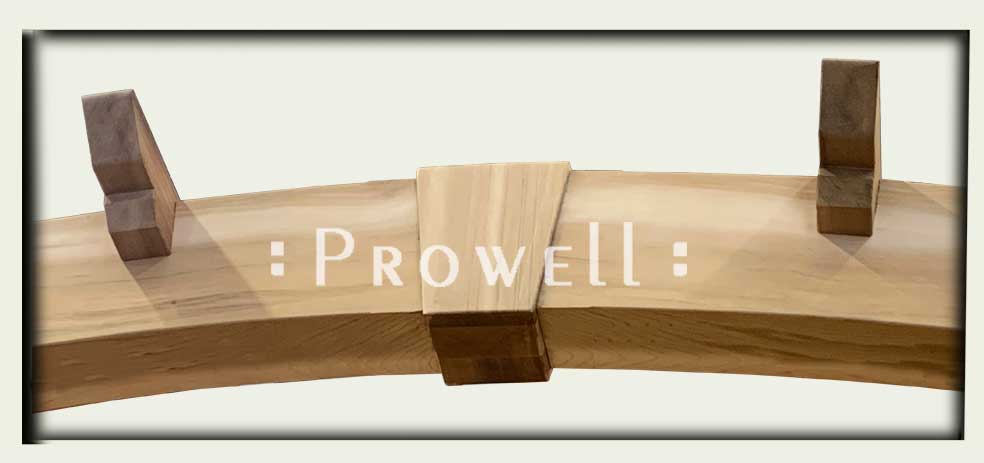

The Keystone is 3-1/2″ thick, rising 1/4″ proud of the arbor truss on all sides. Double mortise and tenon joinery. Keystone for arbors #8, #9, #14, and #15 are +$275 per keystone

building wood arbors with keystones. prowell

WOOD GARDEN ARBOR #8-1–PROGRESS

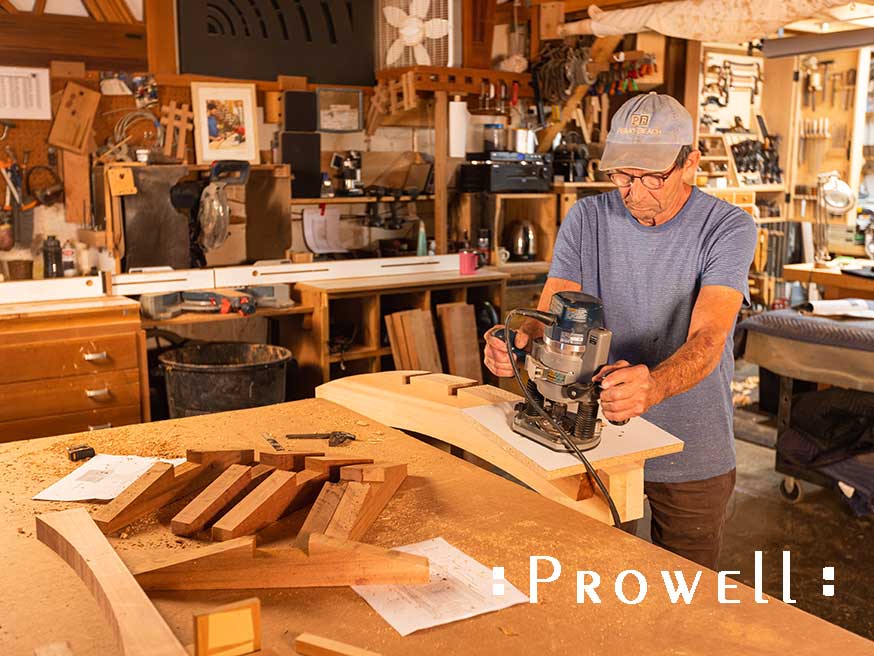

Routing the seats for the cross-arms.

WOOD GARDEN ARBOR #8–PROGRESS

building prowell arbor #8-2

WOOD GARDEN ARBOR #8-1–PROGRESS

WOOD GARDEN ARBOR #8-1–PROGRESS

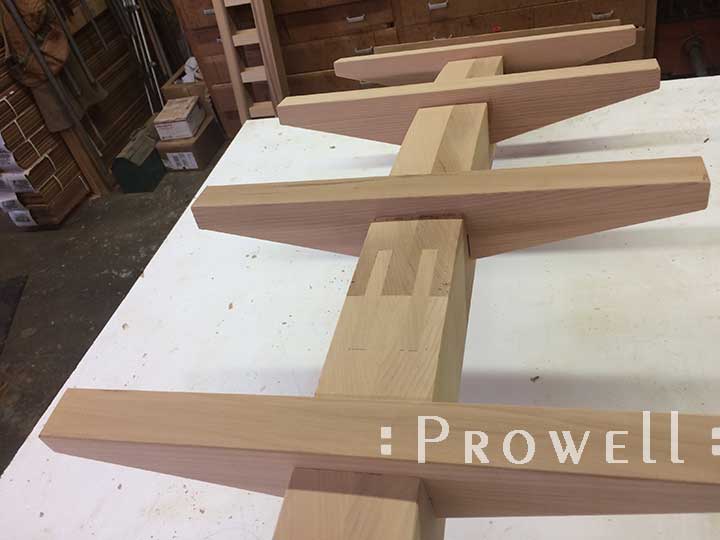

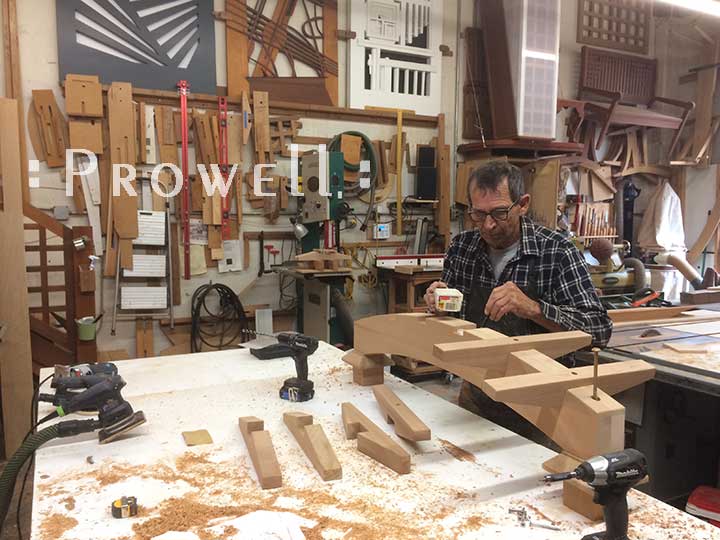

A typical cross-arm on the bench in the foreground.

WOOD GARDEN ARBOR #8-1–PROGRESS

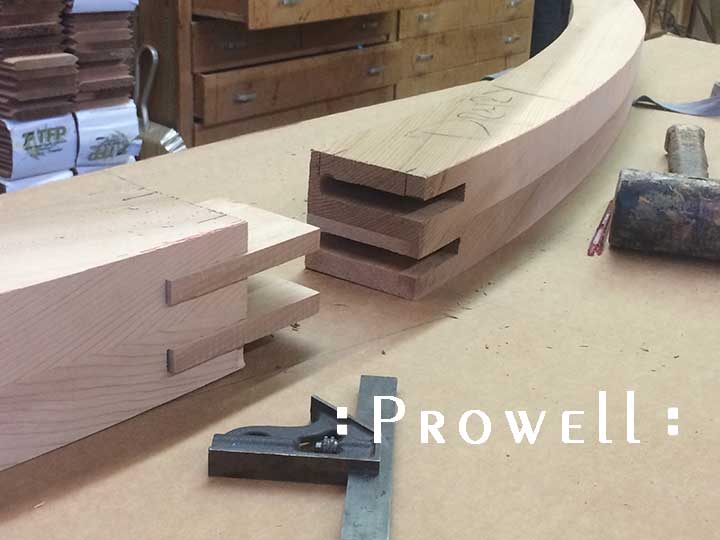

With a truss at only 3-1/2″ width, dual slip tenons provide the needed strength.

wood arbor n#8 joinery. prowell

WOOD GARDEN ARBOR #8-3–PROGRESS

An In-Progress of the installation for Arbor #8-3. Ready to set the arbor.

custom wood arbor 8-3aa in napa county, CA. prowell

wood fence
The Designs of Prowell Woodworks are protected by Patents and Patents Pending.
