CUSTOM WOOD ARCHING ARBOR #9

No Keystone. No Mounting Caps

Pricing Maximum 4′ width
between posts
Maximum 6′ width
between posts
Maximum 8′ width
between posts
3″T x 3-½”W $1,175 $1,575 $2,000
3″T x 5-½”W $1,475 $1,850 $2,225

#9-6

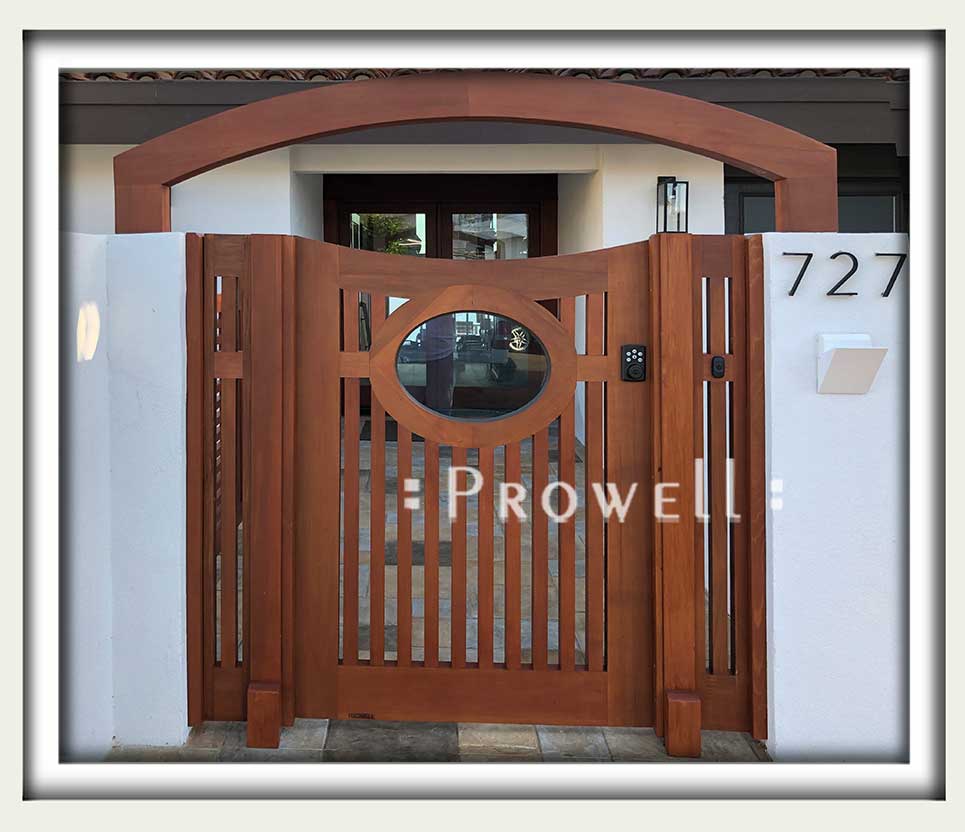

CUSTOM WOOD ARBOR #9-6

As 3-1/2″ or 5-1/2″ widths
Dana Point, CA

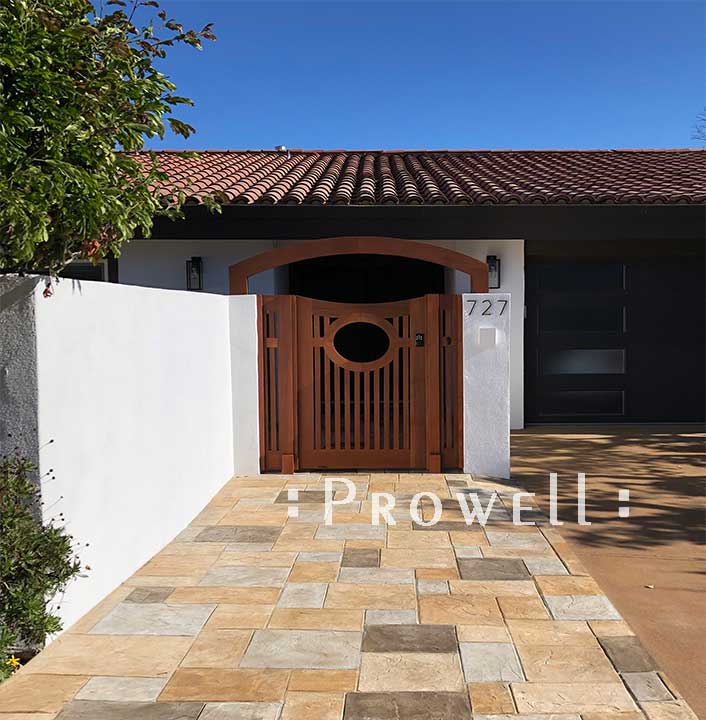

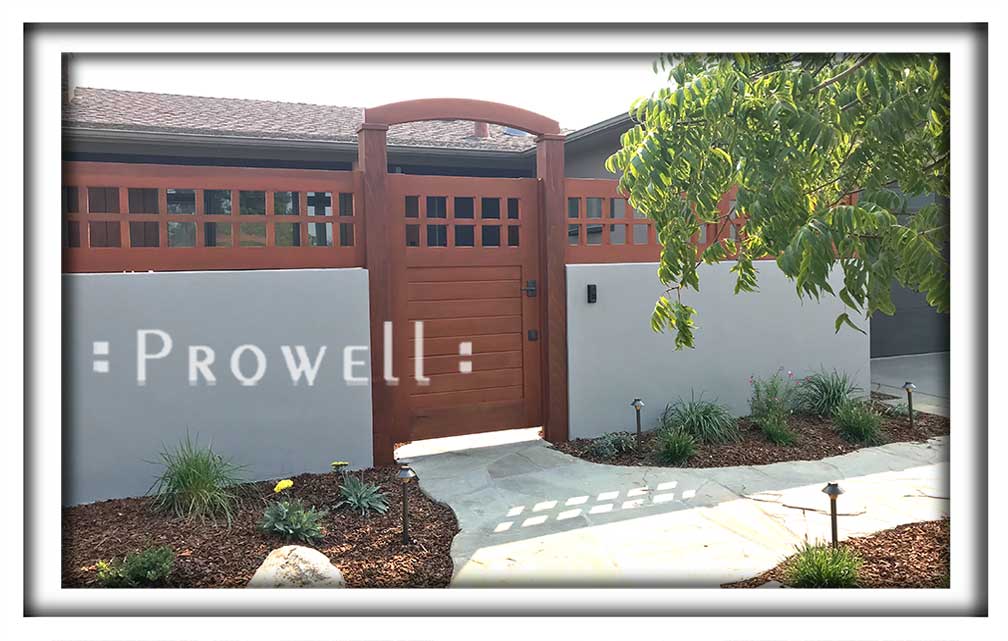

An unmistakable entryway, culminating with the Arbor #9-6 accompanied by the Gate Style #2

Arbor: 3″ thick x 5-1/2″ wide.

custom wood garden arbor #9-6 in Dana Point, CA

CUSTOM WOOD ARBOR #9-6

Dana Point, CA

Arbor style #9 was created as a versatile application for mounting onto directly onto columns and walls, as shown below.
But also, shown in many of the images below, mounting onto wood posts with, or without, Mounting Caps.
WoodRX pre-finish: Chestnut Patina

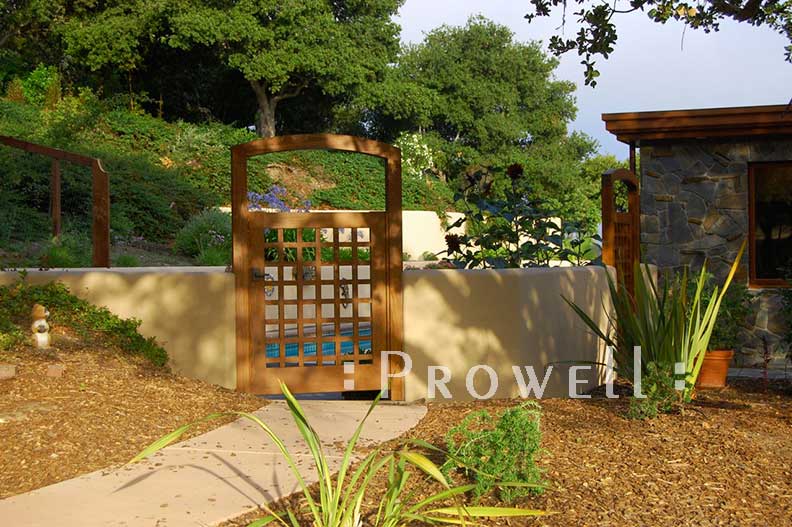

CUSTOM WOOD GARDEN GATE #9-2

Monterey, California

Prowell’s #9-2 Gate Arbors shown with Garden Gate style #60.

Pebble Beach golf, Carmel shopping, Monterey Aquarium, migrating whales, , keeling sailboats billowing on the bluest bay.
Meanwhile . . . the hinterland of the old ranchers holds tough to General Vallejo’s legacy of a Monterey no one remembers.

Garden wood arbors with arches in Monterrey, CA

CUSTOM WOOD GARDEN GATE #9-2

Monterey, California

custom wood arbor 9-2, Monterey, CA

CUSTOM WOOD GARDEN GATE #9-2

Monterey, California

When mounting flush to the Gate posts, the bottom end-cuts arrive with a 1/8″ round-over radius. The site posts must be cut to a clean 90-degree, and the top end-cuts also be radiused to 1/8″ round-over. Why? Because the two assemblies may, or may not, expand and contract at varying degrees and the 1/8″ eased edges allows some forgiveness.

Gate Arbor arched

Mounting Caps and Keystone



Pricing Maximum 4′ width between posts Maximum 6′ width between posts Maximum 8′ width between posts
3″T x 3-½”W $1,375 $1,775 $2,200
3″T x 5-½”W $1,675 $2,050 $2,425

#9-7

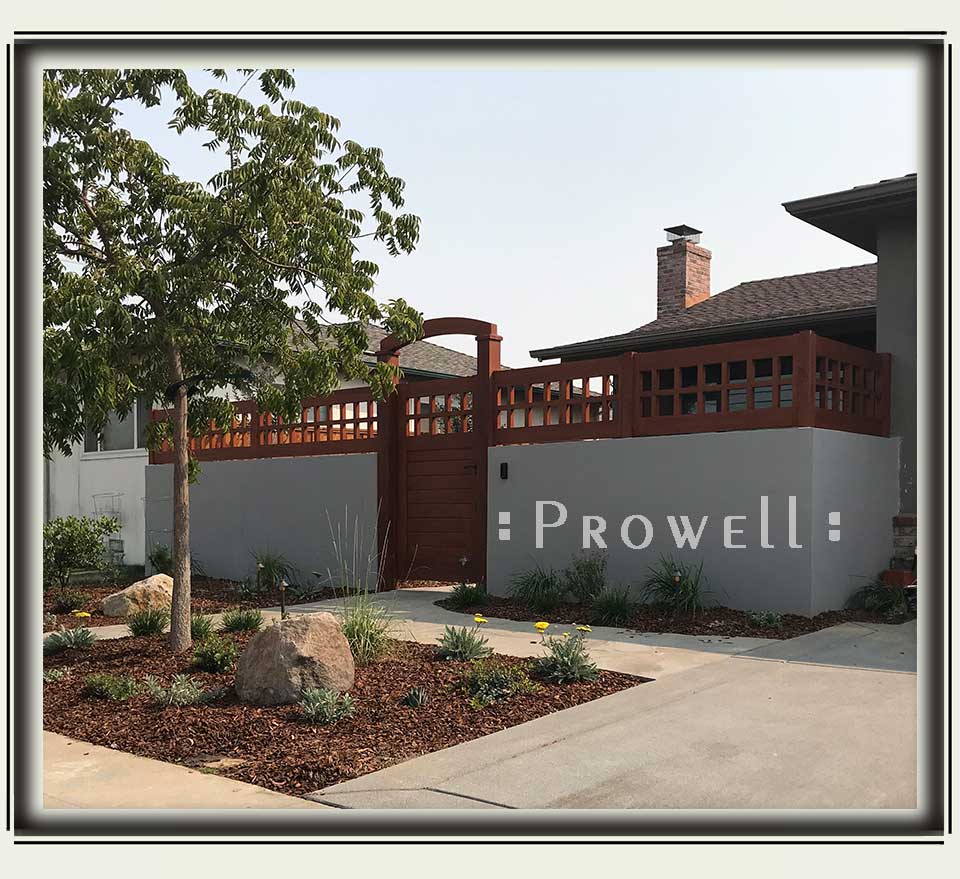

CUSTOM WOOD ARBOR #9-7

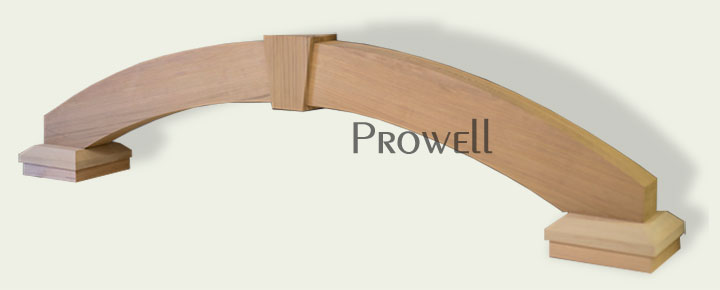

Wood Arbor #9 as a single-truss with a full insert center keystone. Mounting to walls and columns (with the use of the short post extensions shown), or mounting to existing site posts, without the mounting caps shown.

wood arch gate arbor. prowell

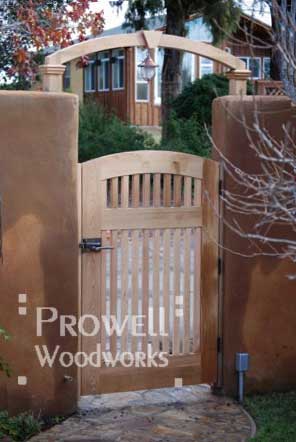

CUSTOM WOOD GARDEN GATE #9

Palo Alto, CA

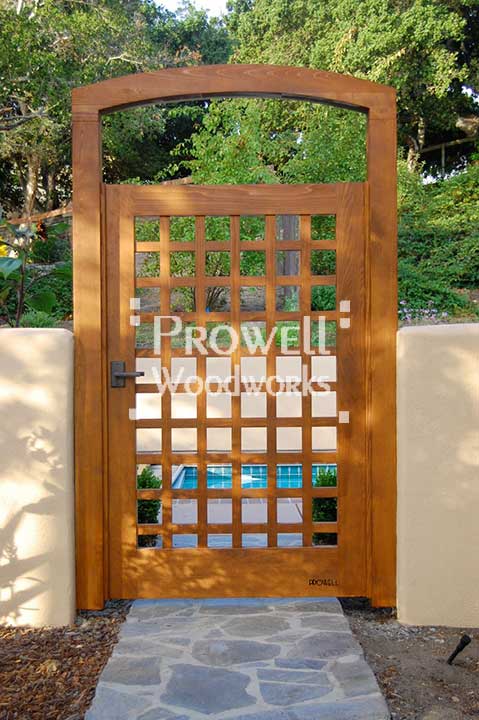

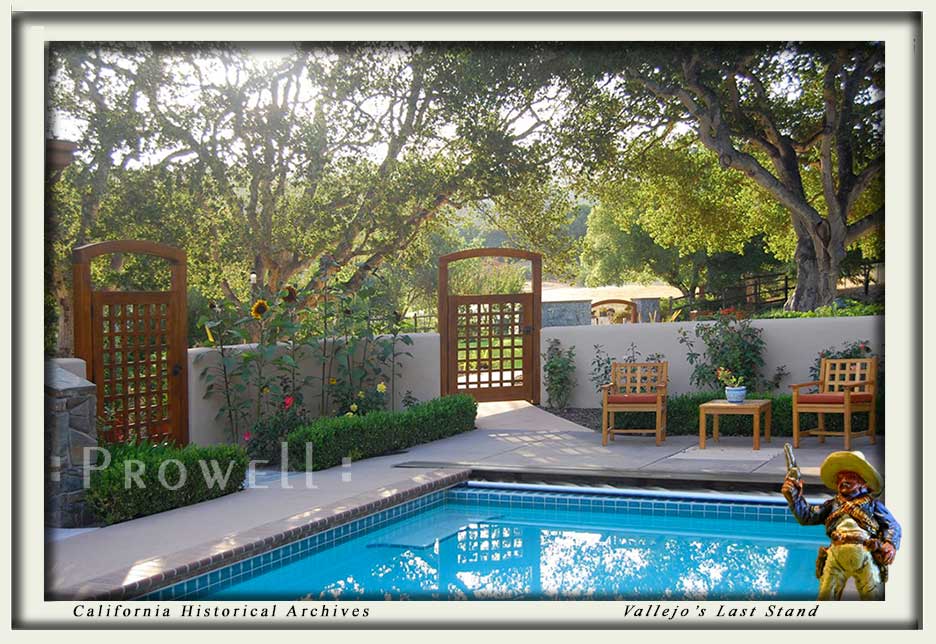

The original Arbor #9 in Palo Alto, CA. Mounted to stucco walls and wired for a light fixture. For mounting such fixtures, Prowell ships the arbor with concealed wiring drawn up from the bottom of the extension posts and out the bottom of the keystone, leaving plenty of wiring for the necessary connections on both ends. For such applications, add $175. On the right, our happy customers.

custom wood arbor
Gate Arbor

#9-5

CUSTOM WOOD ARBOR #9-5

Greenbrae, CA (Marin County)

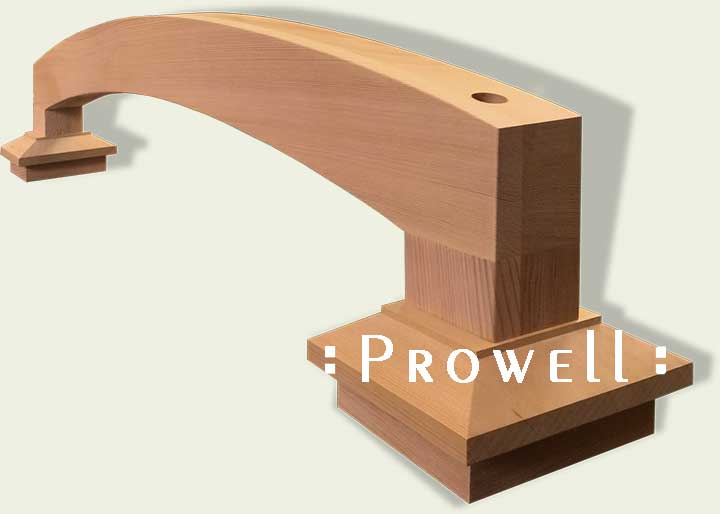

With Arbor #9-5, we have revised the mounting specs such that a single coated lag carries through the top of the arbor into the top of the post.

CUSTOM WOOD GARDEN GATE #9-5

Greenbrae, CA (Marin County)

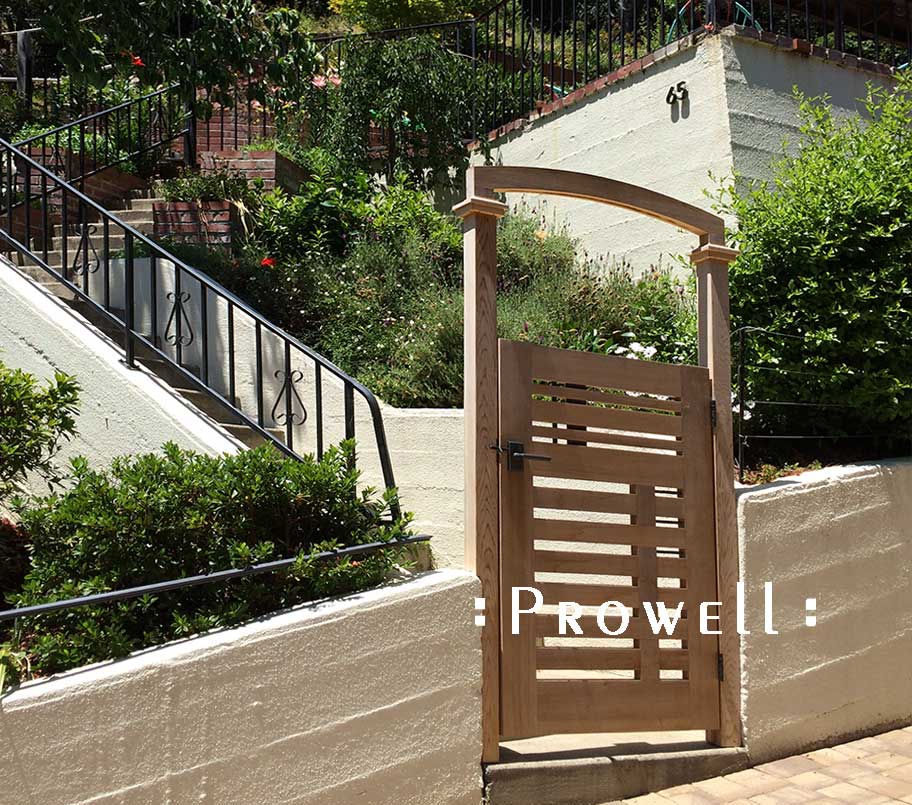

Wood Gate Arbor #9-5 accompanied by Gate style #115.

custom wood gate arbor #9-5. prowell

With Keystone and Mounting Caps

#9-1

CUSTOM WOOD ARBOR #9-1

Walnut Creek, CA

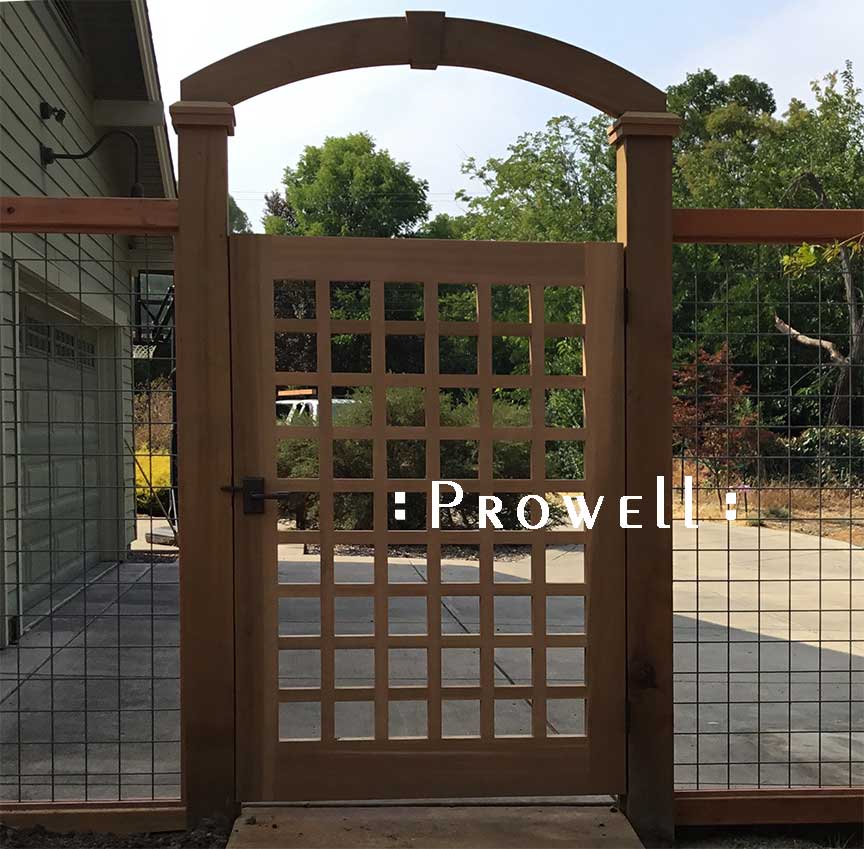

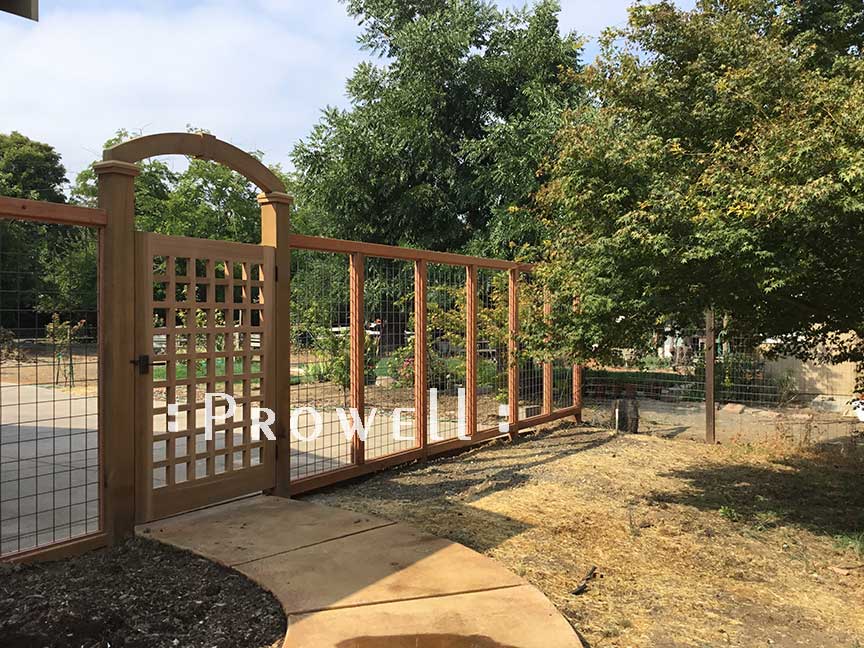

Waood Arbor Design #9-4 and accompanying Garden Gate #60 flanked by a 3rd-party hog wire fence. Of all the gate designs, the #60 fit best with the full exposure of a 4″ wire grid fence.

wood arching arbor #9-4/. Prowell

CUSTOM WOOD GARDEN ARBOR #9-4

Walnut Creek, CA

custom wood arched arbor in the Bay Area. Prowell

#9-3

CUSTOM WOOD ARBOR #9-3

Orinda, CA

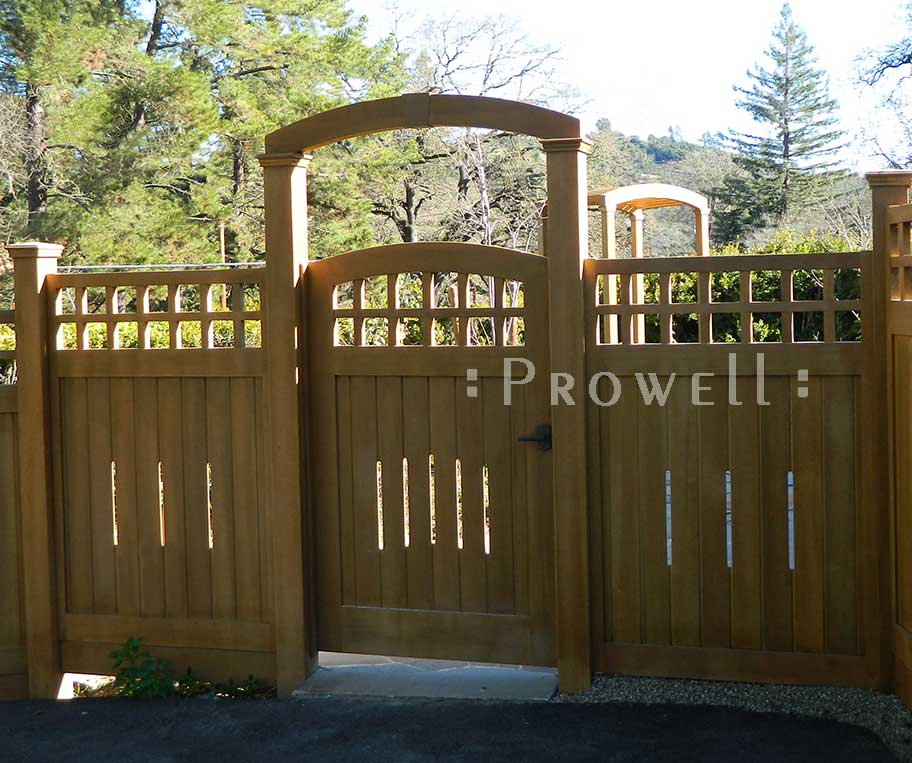

Wood Gate Arbor #9-3 with ketstone and mounting caps. Shown below with Gate style #20 and fence panel style #22. In the back ground, Arbor #15.

custom wood gate arbor #9 from Prowell

IN-PROGRESS

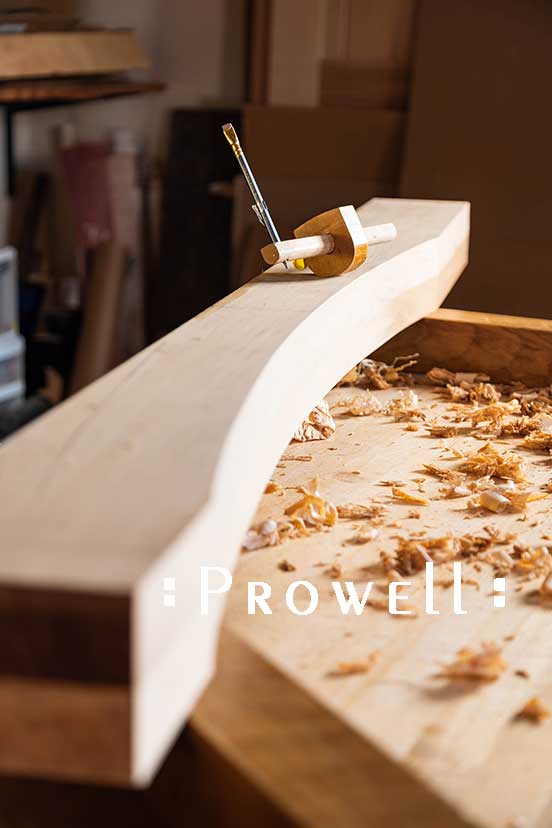

WOOD GARDEN ARBOR #9–PROGRESS

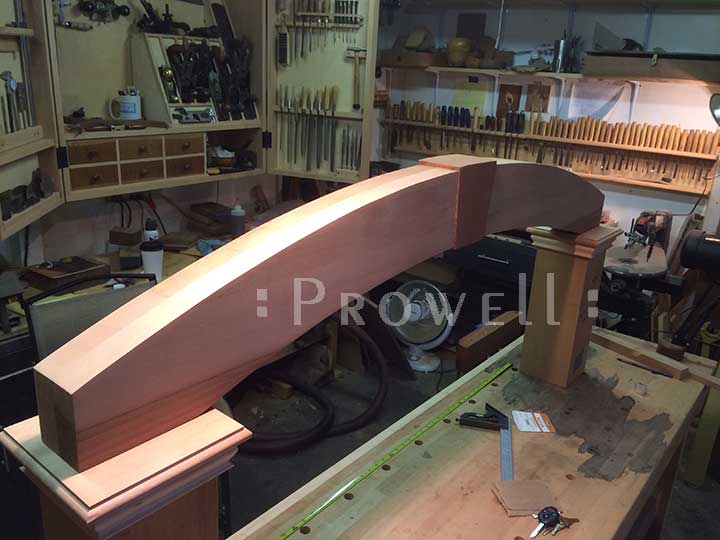

A good look at the full keystone. Mocked up in the shop with simulated 6×6 site posts.

WOOD GARDEN ARBOR #9–PROGRESS

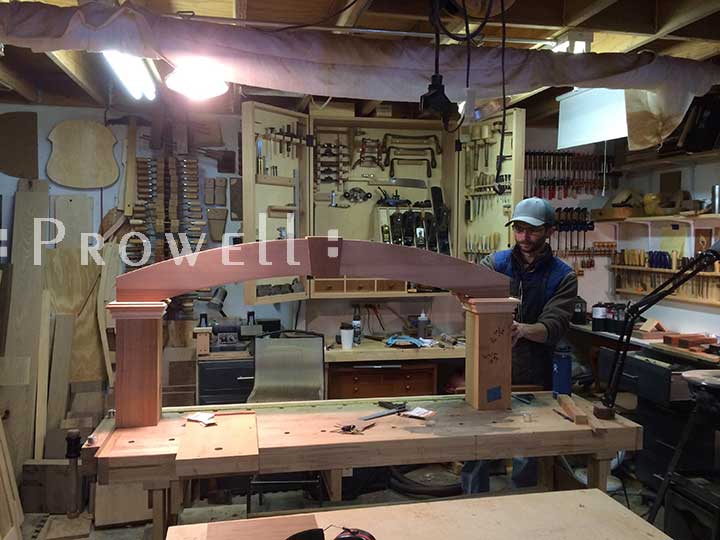

Ben making a few adjustments to a final mock-up.

Ben Prowell building the arched wood arbor #9

WOOD GARDEN ARBOR #9–PROGRESS

Building an arched arbor with keystone

wood fence
The Designs of Prowell Woodworks are protected by Patents and Patents Pending.
