UNSUAL WOOD GATE #213

The Unusual Wood Gate #213  #213 is an exercise in musicality, and probably more about form than function. An endless procession of intersecting, hand-cut joints.

cropped photograph showing the abstract Gate design #213

cropped photograph close-up showing the intersecting patterns of the eccentric garden gate #213

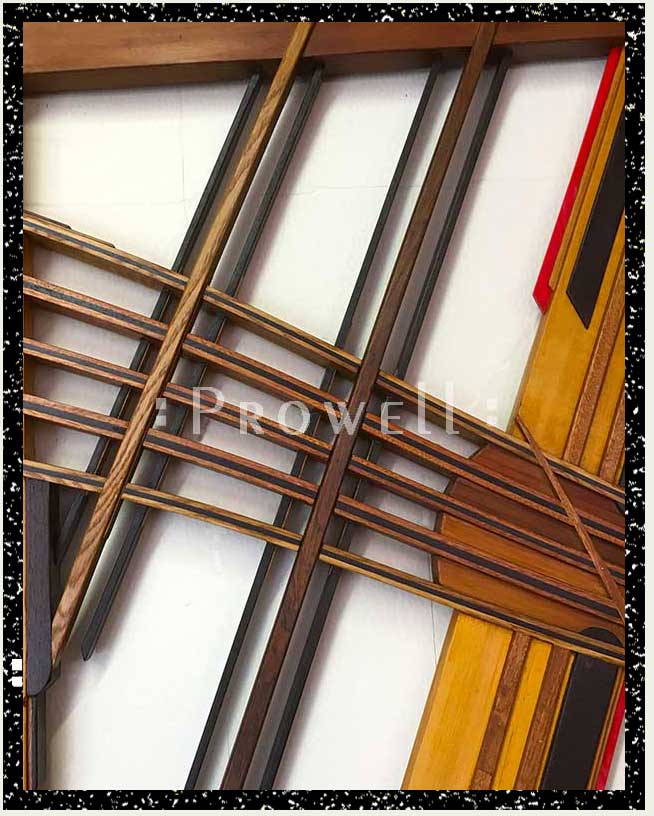

cropped close-up photograph showing the center laminate ribbons of modern gate and fence #213

Modern Wood Garden Gate #213

Artistic renderings of string instruments is not new.  To see more, click here

cropped photograph showing the unique wood gate with acrylics #213

In-Progress

BUILDING THE UNUSUAL WOOD GATE #213–PROGRESS

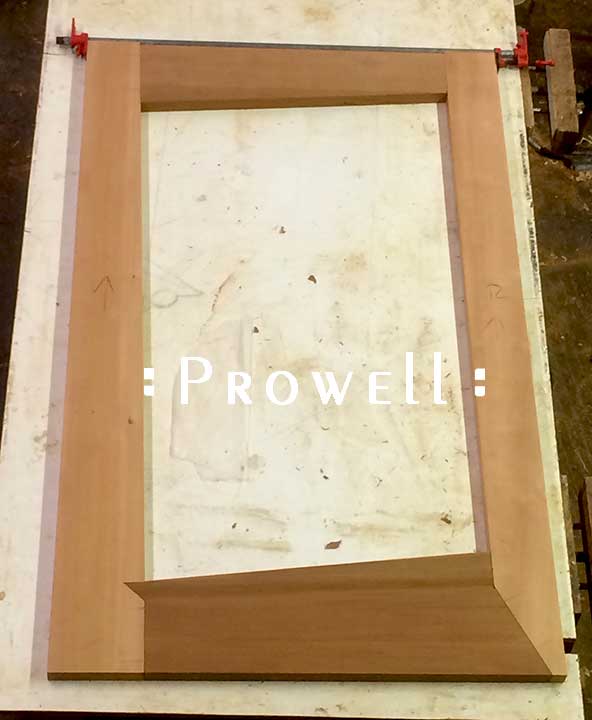

The Unusual Wood Gate #213 begins with tapered stiles and rails and the convoluted joinery of the bottom rail.

shop progress photo showing the beginning stage of building the eccentric garden gate #213

ABSTRACT GATE DESIGN #213–PROGRESS

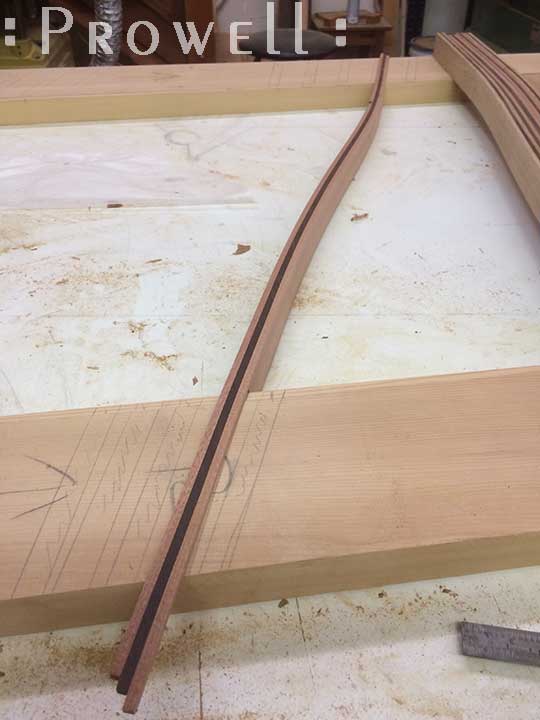

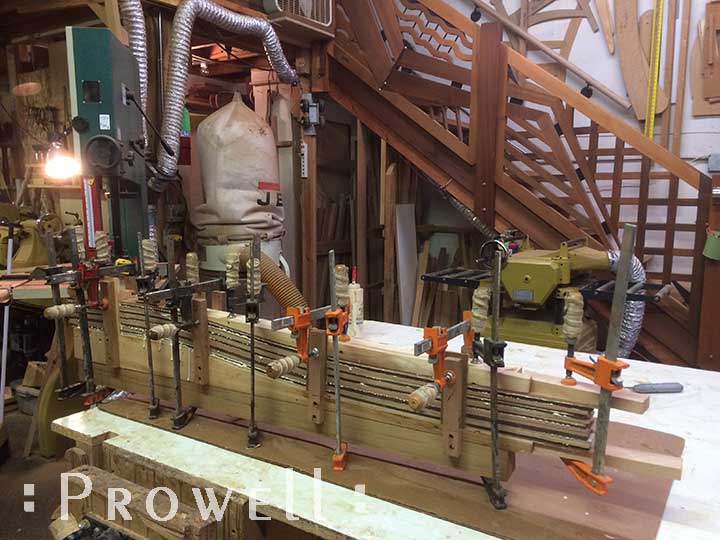

Adding a series of gang laminations clamped to a mold with a slight cresting radius. Two sets, each with a slightly different profile.

Each lamination is a group of three. All of them with a center strip in the dark wenge, sandwiched in either white oak or sepele. The Unusual Wood Gate 213 emplys, in all, 6 species of wood.

shop progress photo showing the process for laminating curves in with an abstract gate design

ECCENTRIC GARDEN GATE #213–PROGRESS

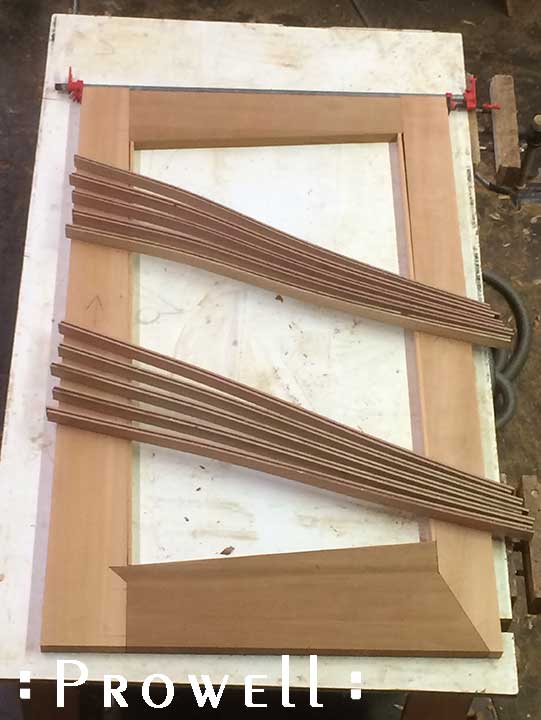

To continue the tapering theme, the laminations are arranged to accentuate their slight profiles and funneling to a narrow point on the right. Simulating the strings of cellos, harps, and violins.

shop progress photograph showing the lamination assembly of the modern gate and fence #213

UNUSUAL WOOD GATE #213–PROGRESS

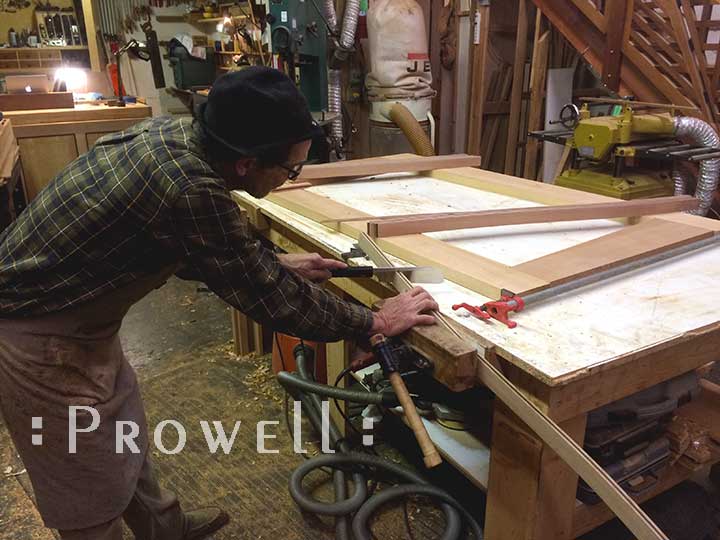

Each set of strings on our abstract gate design is cut by hand and on the bandsaw to fit within its pocket, while extending to traverse the stiles.

shop progress photo showing charles setting the strings to the eccentric gate design #213

ABSTRACT GATE DESIGN #213–PROGRESS

A typical fit.

shop progress photo of the modern gate and fence #213 in the shop

UNUSUAL WOOD GATE #213–PROGRESS

With a rough fitted result that establishes our focal anchor of what’s to come with the ensuing abstract gate design 213.

shop photograph showing progress on how to build the modern gate and fence 213

UNUSUAL WOOD GATE #213–PROGRESS

The spline, traversing diagonally across our Unusual Wood Gate, with a number of planes and reliefs anchored by the introduction of primary-red acrylic.

in-progress shop photo showing the diagonal spline of the eccentric gate design #213

ECCENTRIC GARDEN GATE #213–PROGRESS

A series of what might be construed as reeds in a marsh, flaring up lazily from the bottom rail. Cut on a band saw and then trued by hand with a beveled spokeshave (see insert).

Shop photo showing the spokeshave for truing the reeds of the eccentric garden gate #213

ABSTRACT GATE DESIGN #213–PROGRESS

The approach hasn’t changed: Make up a series of pieces and set them out as if playing with Legos, looking for the right piece in the right spot.

shop in-progress photo showing the abstract gate design 213

MODERN GARDEN GATE #213–PROGRESS

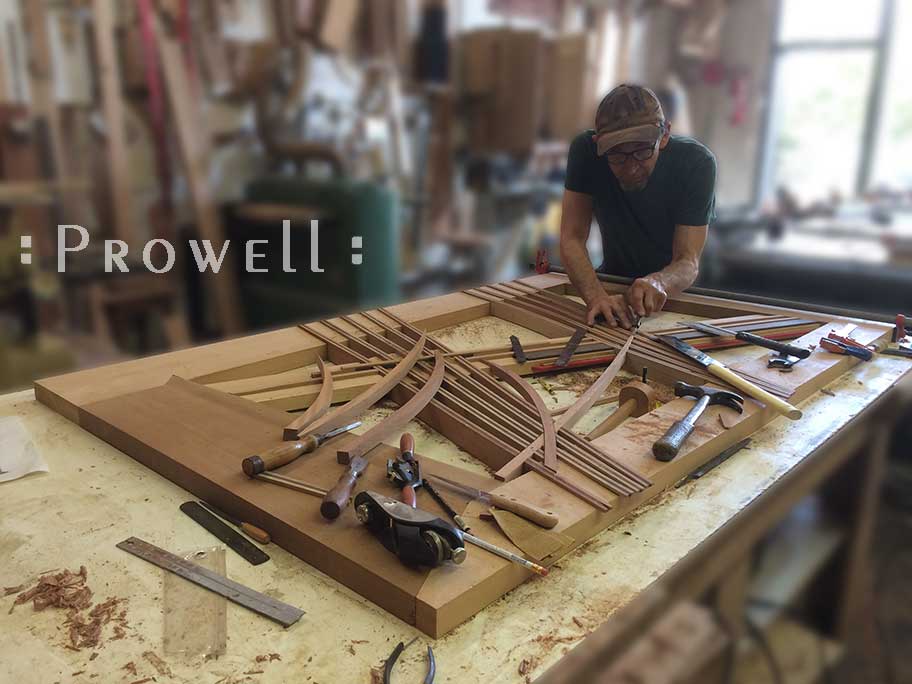

At this stage of the Abstract Gate Design 213, we have a traffic jam of hand tools scattered everywhere. Each reed takes about 4 hours to fit into place like a puzzle.

photograph of prowell in the woodshop with the modern garden gate #213

ABSTRACT GATE DESIGN #213–PROGRESS

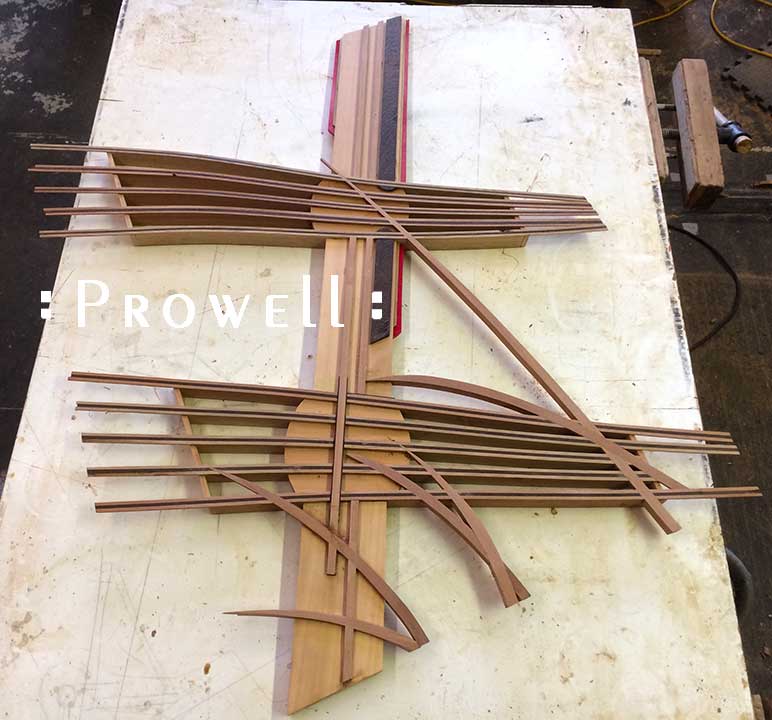

The business portion of the gate shown as a stand-alone assembly. Everything joined and glued up, enabling everything so far to be set to the stiles and rails. The remaining details can be joined as we go, knowing that everything so far will not be shifted or nudged from its final poisition.

shop photograph showing the strings and interior of the abstract gate design 213

wood fence
The Designs of Prowell Woodworks are protected by Patents and Patents Pending.
